9. Replace the terminal cover plate — Reinstall the terminal cover plate onto the
CS 120P and tighten the two screws that were previously loosened.
10. If the CS 120P is NOT being installed in a 1-inch (2.5 cm) thick fiberglass ceiling
tile, discard the fiberglass tile adapter and proceed to
If the CS 120P is being installed in a 1-inch (2.5 cm) thick fiberglass ceiling tile,
install the fiberglass ceiling tile adapter. Attach the fiberglass tile adapter to the
outer side of the lip of the port hole on the CS 120P as follows:
a. Cut four strips of adhesive tape (such as duct tape) approximately 4 inches
(10.2 cm) long.
b. Attach each tape strip starting from the outer side of the CS 120P metal baffle, up
and over the port ring adapter, then down to the inner surface of the CS 120P metal
baffle, as shown in figure 33.

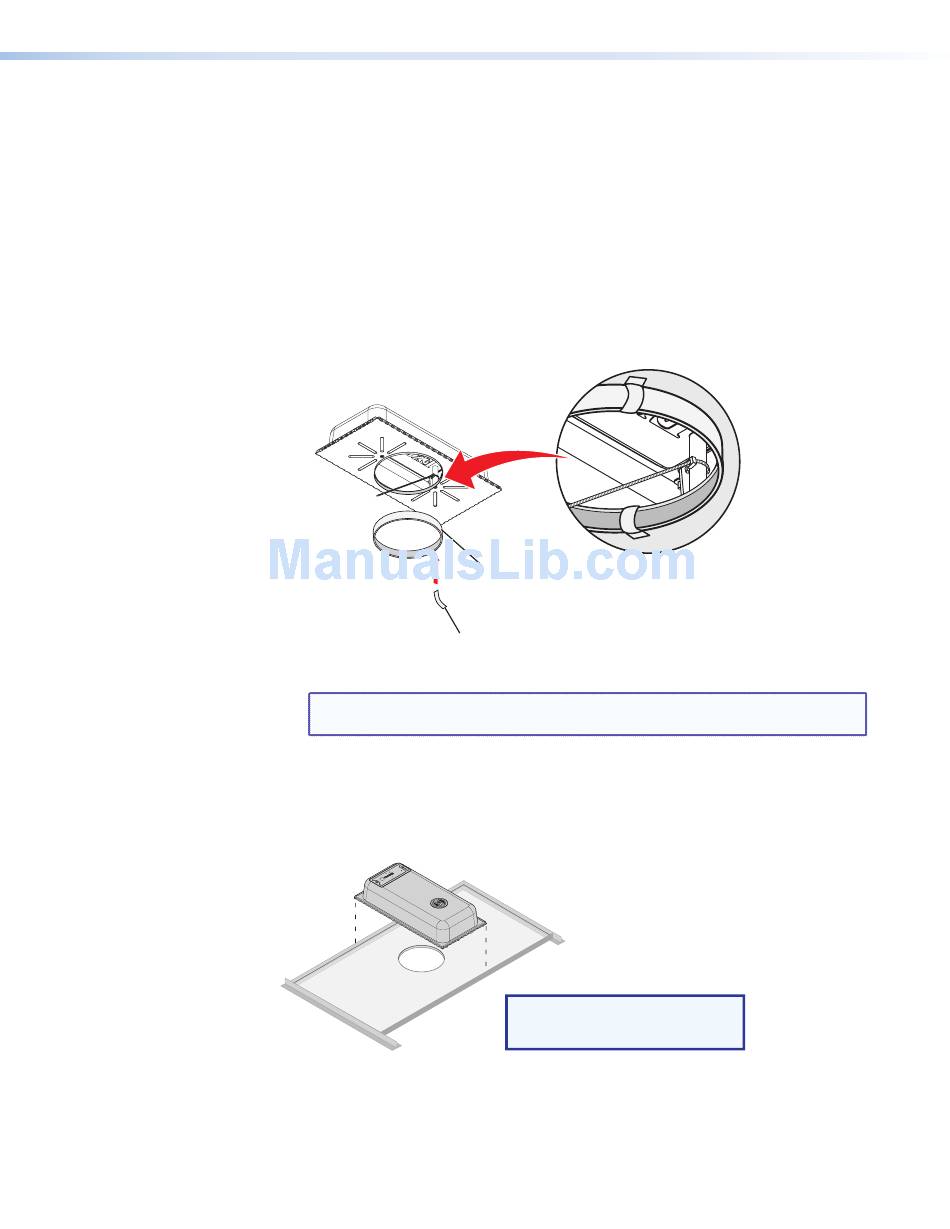

Figure 33. Attach Four Tape Strips to the Baffle and Port Ring Adapter
NOTE: The tape strips must lie flat against all surfaces, with no ridges or raised
edges.
11. Place the CS 120P into the ceiling grid — Place the CS 120P over the tile
grid so that the CS 120P is safely supported on the two short edges. If the ceiling
tile was installed, ensure that the hole in the tile is aligned with the hole in the
CS 120P (see figure 34).
Fig: Mounting the PRE
Figure 34. Mounting the CS 120P in a 2' x 4' (600 mm x 1200 mm) Ceiling Grid
Fiberglass Tile Adapter
x 4 Tape
NOTE: 2' x 2' (600 mm x 600 mm)
grid mounting is the same as 2' x 4'
(600 mm x 1200 mm) grid mounting.
CS 26T Plus and CS 120P User Guide • Installation
step 11 on the next page.
