For installations in 1-inch (2.5 cm) thick fiberglass ceiling tiles with the
CS 120P:
NOTE: A set of fiberglass tile adapters is provided with both the CS 26T Plus
and the CS 120P. Only one set is needed to install the CS 26T Plus with the
CS 120P kit in a 1-inch (2.5 cm) thick fiberglass tile. The adapter works
with 1-inch (2.5 cm) thick fiberglass tile.
i. Place the fiberglass tile adapter around the outer diameter of the template that
was positioned in
ii. Trace a circle around the outer diameter of the adapter.
e. Cut out the circle traced in the ceiling tile.
f. Replace the tile in the ceiling.
4. Remove the adjacent ceiling tile — To facilitate the installation
process, remove the tile adjacent to the ceiling tile where the
CS 26T Plus will be installed. If the CS 120P is being installed, skip to step 6.
Otherwise, proceed to step 5.
5. If NOT using the CS 120P, install the Ceiling Mount kit — Place two V-rails and
one C-ring across the tile above the hole that you cut in step 3, where the speaker will
be installed, as shown below.
V-rail

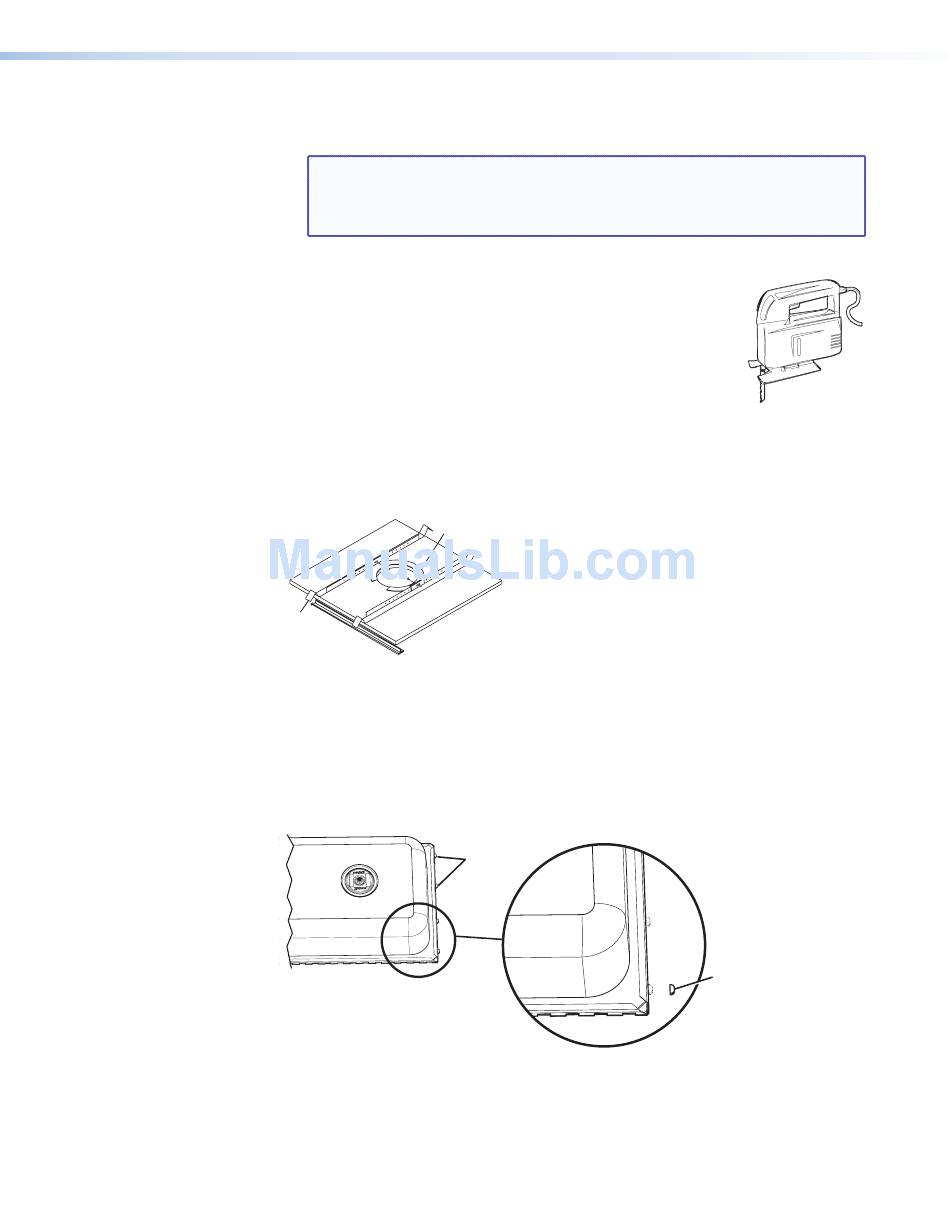

Figure 3. Install the Ceiling Mount Kit
Skip to step 13 on page 8.
6. Configure the CS 120P for a U.S. or metric ceiling grid — For U.S. ceilings (2 feet
by 2 feet or 2 feet by 4 feet) leave intact the four tabs that are on one of the short ends
of the enclosure.
For metric ceilings (600 mm by 600 mm or 600 mm by 1200 mm) cut off the tabs, as
shown below.
Figure 4. Tabs on the CS 120P
.
step 3c
C-ring
Tabs (4)
CS 26T Plus and CS 120P User Guide • Installation
only
Removable
Tabs
