SMK P SM 26/28 Pivot Mount Kit • Setup Guide
This setup guide contains installation information about the Extron SMK P SM 26/28 Pivot Mount Kit.
WARNING:
Potential risk of severe injury. Installation and service must be performed by authorized personnel only.
AVERTISSEMENT :
le personnel autorisé uniquement.
ATTENTION:
The final installation should be able to continuously support the speaker weight. The final installation should
also be able to support any short term overloading. Since applications can vary considerably, it is assumed that the
installer will exercise good judgment when selecting the mounting location, method, and hardware. Installation and service
must be performed by authorized personnel only.
Installing the Pivot Mount Kit

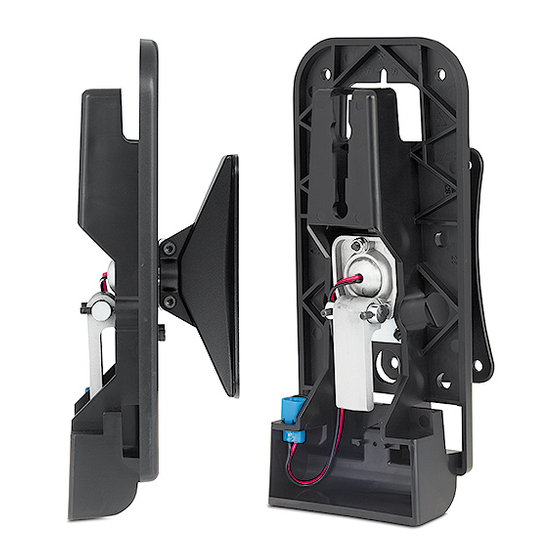

The pivot mount enables the speaker to be positioned
and locked at various angles due to the adjustable ball
joint feature.
NOTE:
Observe all applicable building codes and
local ordinances when installing the speaker.
ATTENTION:
cable to the SM 26/28 speaker is required when
using the pivot mount kit.
Locate a suitable mounting location where the
1.
pivot mount will be installed. Allow for the
dimensions of the SM 26 and SM 28, as shown
SM 28
below.
SM 28
SM 28
:
11.50"
11.50"
(29.21 cm)
(29.21 cm)
2.44 - 3.35"
2.44 - 3.35"
(6.20 cm - 8.51)
7.28" (6.20 cm - 8.51)
7.28"
(18.50 cm)
(18.50 cm)
16.50"
16.50"
(41.91 cm)
(41.91 cm)
Risque potentiel de blessure grave ou de mort. L'installation et l'entretien doivent être effectués par
Attaching a secondary support
SM 26
SM 26
SM 26
8.45"
8.45"
(21.46 cm)
(21.46 cm)
(6.20 cm - 8.51)
6.45" (6.20 cm - 8.51)
6.45"
(16.38 cm)
(16.38 cm)
12.98"
12.98"
(32.97 cm)
(32.97 cm)
9.2"
9.2"
(23.37 cm)
(23.37 cm)
All four mounting plate
2.
screw holes must be secured
with at least two
screws attached to
a wall stud. Mark
the four holes on
the wall as indicated
by the wall plate
holes.
NOTE:
Drill the four holes
3.
for the wall plate.
Drill a hole for the speaker wire.
4.
:
Route the speaker wire through the speaker wire hole
5.
while leaving enough slack for connection to the wall
plate.
NOTE:
Attach speaker wires to the Euroblock on the wall plate.
6.
2.44 - 3.35"
2.44 - 3.35"
9.16"
9.16"
(23.27 cm)
(23.27 cm)
6.0" 5.1"
(15.2 cm) (13.0 cm)
Mounting
hardware
is not
provided.
If the speaker wire is not being routed
through the wall, a notch on the wall plate allows
the wire to enter the wall plate from a raceway.
Wire Gauge Table
umber of Wires
N
per Connection Point
1
2
4
3.5"
(8.9 cm)
2.6"
(6.6 cm)
R = 0.28"
(0.71 cm)
Quick Connect Contacts
Maximum
Wire Gauge
12 AWG
16 AWG
18 AWG
1
