7. Route the cables through the cover plate —
NOTES:
• The CS 120P is fully UL 2043 compliant only when it is used with a metal
conduit or with plenum rated cables.
• Installation of all conduits, conduit adapters, wiring, and electrical connections
must conform to all applicable building codes and local ordinances.
Using a flexible conduit:
a. Route wires through the conduit.
b. Insert the conduit into the cover plate opening using an appropriate conduit
adapter, and secure the conduit to the plate as shown in figure 30.
c. Pull the wires out of the conduit and through the cover plate.

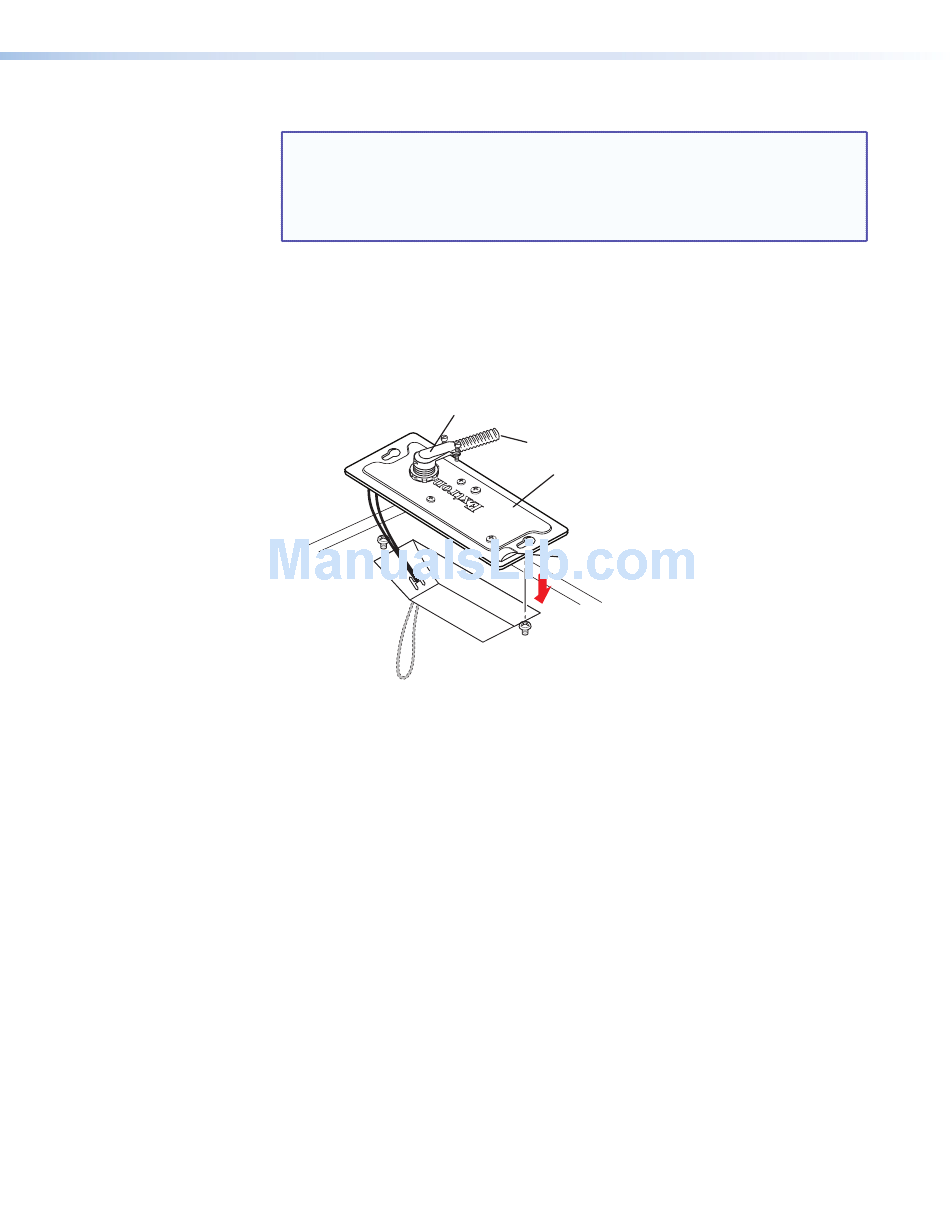

Figure 30. Routing the Cables through the Cover Plate Using a Flexible
Conduit
Flexible Conduit Adapter
Flexible Conduit
Cover Plate
Seismic Cable Pass
Through Loop
Rear of Enclosure
CS 26T Plus and CS 120P User Guide • Installation
with flexible conduit
