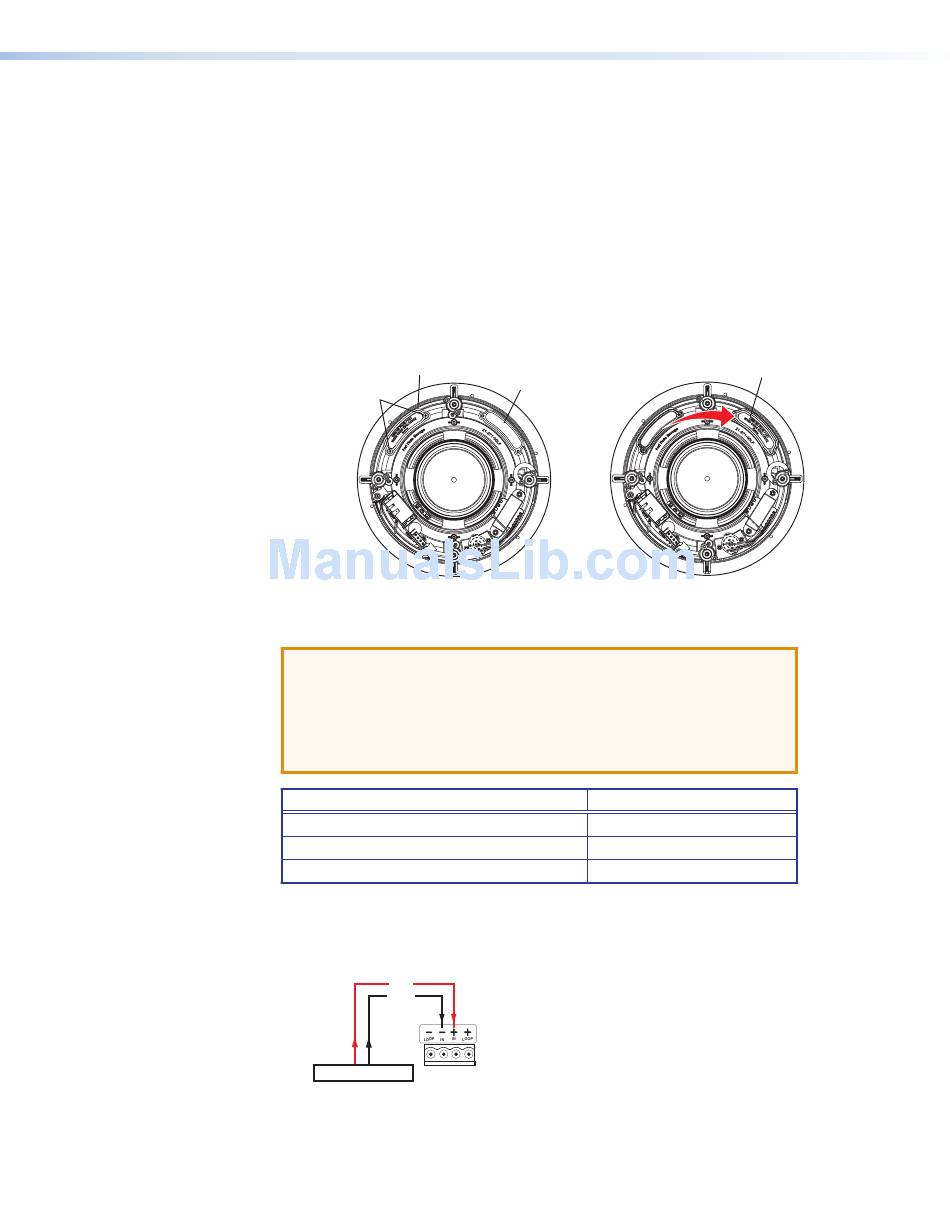

15. Configure the bass reflex port plate — By default, the CS 26T Plus is set up for use
with the CS 120P. If not using the CS 120P, set the plate for an open-back installation.
With the CS 120P (default configuration): Leave the plate in its default location.
•
The port must be left uncovered (see A in figure 11).
Open back: The bass reflex port is uncovered by default. In the open back
•
configuration (without the CS 120P), this port must be closed (covered). If the port
is not covered:
a. Use a Phillips screwdriver to remove the two screws securing the bass reflex
port plate in its storage location.
b. Attach the plate to the bass reflex port using the two screws that you removed
in step a (see B in figure 11).
Bass Port Plate
(storage location)
Screws (2)
A
Figure 11. Configuring the Bass Reflex Port Plate
16. Attach the speaker wires to the captive screw connector —
ATTENTION: Do not tin the wire leads before installing into the
connector. Tinned wires are not as secure in the connector and
could be pulled out.
ATTENTION : Ne pas étamer les conducteurs avant de les insérer
dans le connecteur. Les câbles étamés ne sont pas aussi bien fixés
dans le connecteur et pourraient être retirés.
Number of Wires per Connection Point
1
2
4
Attach the speaker wires to the included four-pole captive screw connector using one of
the following methods:
Wiring a Single Speaker: Connect the wires to the captive screw connectors of
•
the speakers as shown in figure 12. Be sure to tighten the screws.
(Red)
(Black)
Power Amplifier
Speaker 1
Wiring a Single Speaker
Figure 12. Wiring a Single Speaker
Bass Reflex Port
(open, uncovered)
B
Maximum Wire Gauge
12 AWG
16 AWG
18 AWG
CS 26T Plus and CS 120P User Guide • Installation
Bass Reflex Port
(closed, covered)
