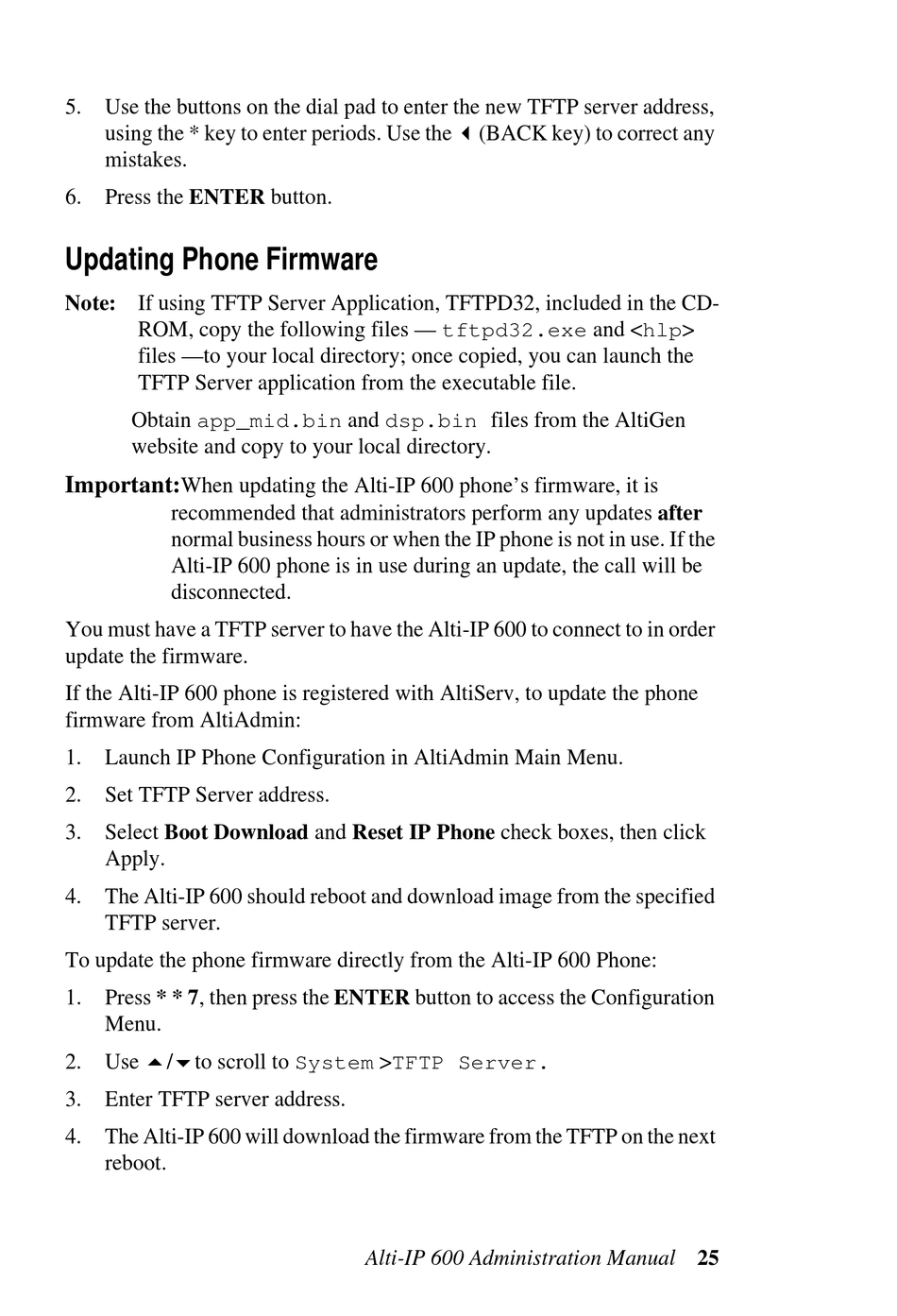

Updating Phone Firmware - Altigen Alti-IP 600 Administration Manual

5. Use the buttons on the dial pad to enter the new TFTP server address,
using the * key to enter periods. Use the $(BACK key) to correct any
mistakes.
6. Press the ENTER button.

Updating Phone Firmware

Note: If using TFTP Server Application, TFTPD32, included in the CD-
ROM, copy the following files — tftpd32.exe and <hlp>
files —to your local directory; once copied, you can launch the
TFTP Server application from the executable file.
Obtain app_mid.bin and dsp.bin files from the AltiGen
website and copy to your local directory.
Important:
When updating the Alti-IP 600 phone's firmware, it is
recommended that administrators perform any updates after
normal business hours or when the IP phone is not in use. If the
Alti-IP 600 phone is in use during an update, the call will be
disconnected.
You must have a TFTP server to have the Alti-IP 600 to connect to in order
update the firmware.
If the Alti-IP 600 phone is registered with AltiServ, to update the phone
firmware from AltiAdmin:
1. Launch IP Phone Configuration in AltiAdmin Main Menu.
2. Set TFTP Server address.
3. Select Boot Download and Reset IP Phone check boxes, then click
Apply.
4. The Alti-IP 600 should reboot and download image from the specified
TFTP server.
To update the phone firmware directly from the Alti-IP 600 Phone:
1. Press * * 7, then press the ENTER button to access the Configuration
Menu.
Use !/"to scroll to System >TFTP Server.
2.
3. Enter TFTP server address.
4. The Alti-IP 600 will download the firmware from the TFTP on the next
reboot.
Alti-IP 600 Administration Manual 25
