A
-IP 600
LTI
Q
R
UICK
EFERENCE

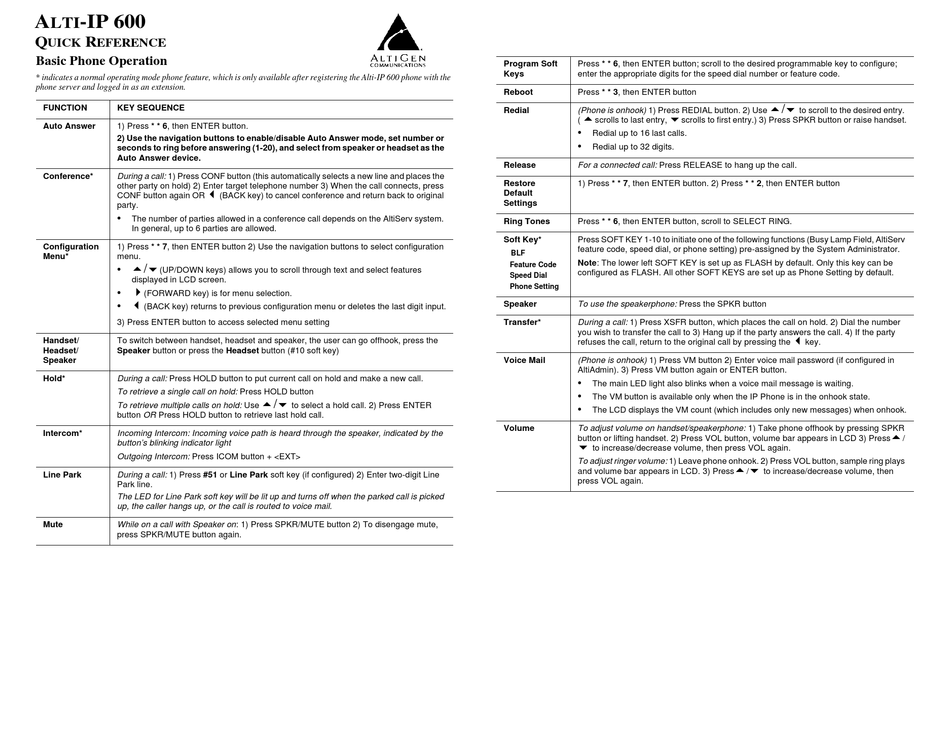

Basic Phone Operation

* indicates a normal operating mode phone feature, which is only available after registering the Alti-IP 600 phone with the
phone server and logged in as an extension.
FUNCTION
KEY SEQUENCE
Auto Answer
1) Press * * 6, then ENTER button.
2) Use the navigation buttons to enable/disable Auto Answer mode, set number or
seconds to ring before answering (1-20), and select from speaker or headset as the
Auto Answer device.
Conference*
During a call: 1) Press CONF button (this automatically selects a new line and places the
other party on hold) 2) Enter target telephone number 3) When the call connects, press
!
CONF button again OR
party.
The number of parties allowed in a conference call depends on the AltiServ system.
In general, up to 6 parties are allowed.
Configuration
1) Press * * 7, then ENTER button 2) Use the navigation buttons to select configuration
Menu*
menu.
"/#
(UP/DOWN keys) allows you to scroll through text and select features
displayed in LCD screen.
$
(FORWARD key) is for menu selection.
!
(BACK key) returns to previous configuration menu or deletes the last digit input.
3) Press ENTER button to access selected menu setting
Handset/
To switch between handset, headset and speaker, the user can go offhook, press the
Headset/
Speaker button or press the Headset button (#10 soft key)
Speaker
Hold*
During a call: Press HOLD button to put current call on hold and make a new call.
To retrieve a single call on hold: Press HOLD button
To retrieve multiple calls on hold: Use
button OR Press HOLD button to retrieve last hold call.
Intercom*
Incoming Intercom: Incoming voice path is heard through the speaker, indicated by the
button's blinking indicator light
Outgoing Intercom: Press ICOM button + <EXT>
During a call: 1) Press #51 or Line Park soft key (if configured) 2) Enter two-digit Line
Line Park
Park line.
The LED for Line Park soft key will be lit up and turns off when the parked call is picked
up, the caller hangs up, or the call is routed to voice mail.
Mute
While on a call with Speaker on : 1) Press SPKR/MUTE button 2) To disengage mute,
press SPKR/MUTE button again.
(BACK key) to cancel conference and return back to original
"/#
to select a hold call. 2) Press ENTER
Program Soft
Press * * 6, then ENTER button; scroll to the desired programmable key to configure;
Keys
enter the appropriate digits for the speed dial number or feature code.
Reboot
Press * * 3, then ENTER button
(Phone is onhook) 1) Press REDIAL button. 2) Use
Redial
"
#
(
scrolls to last entry,
scrolls to first entry.) 3) Press SPKR button or raise handset.
Redial up to 16 last calls.
Redial up to 32 digits.
Release
For a connected call: Press RELEASE to hang up the call.
Restore
1) Press * * 7, then ENTER button. 2) Press * * 2, then ENTER button
Default
Settings
Ring Tones
Press * * 6, then ENTER button, scroll to SELECT RING.
Soft Key*
Press SOFT KEY 1-10 to initiate one of the following functions (Busy Lamp Field, AltiServ
feature code, speed dial, or phone setting) pre-assigned by the System Administrator.
BLF
Note: The lower left SOFT KEY is set up as FLASH by default. Only this key can be
Feature Code
configured as FLASH. All other SOFT KEYS are set up as Phone Setting by default.
Speed Dial
Phone Setting
Speaker
To use the speakerphone: Press the SPKR button
During a call: 1) Press XSFR button, which places the call on hold. 2) Dial the number
Transfer*
you wish to transfer the call to 3) Hang up if the party answers the call. 4) If the party
refuses the call, return to the original call by pressing the
Voice Mail
(Phone is onhook) 1) Press VM button 2) Enter voice mail password (if configured in
AltiAdmin). 3) Press VM button again or ENTER button.
The main LED light also blinks when a voice mail message is waiting.
The VM button is available only when the IP Phone is in the onhook state.
The LCD displays the VM count (which includes only new messages) when onhook.
Volume
To adjust volume on handset/speakerphone: 1) Take phone offhook by pressing SPKR
button or lifting handset. 2) Press VOL button, volume bar appears in LCD 3) Press
#
to increase/decrease volume, then press VOL again.
To adjust ringer volume: 1) Leave phone onhook. 2) Press VOL button, sample ring plays
and volume bar appears in LCD. 3) Press
press VOL again.
"/#
to scroll to the desired entry.
!
key.
"
/
"
#
/
to increase/decrease volume, then
