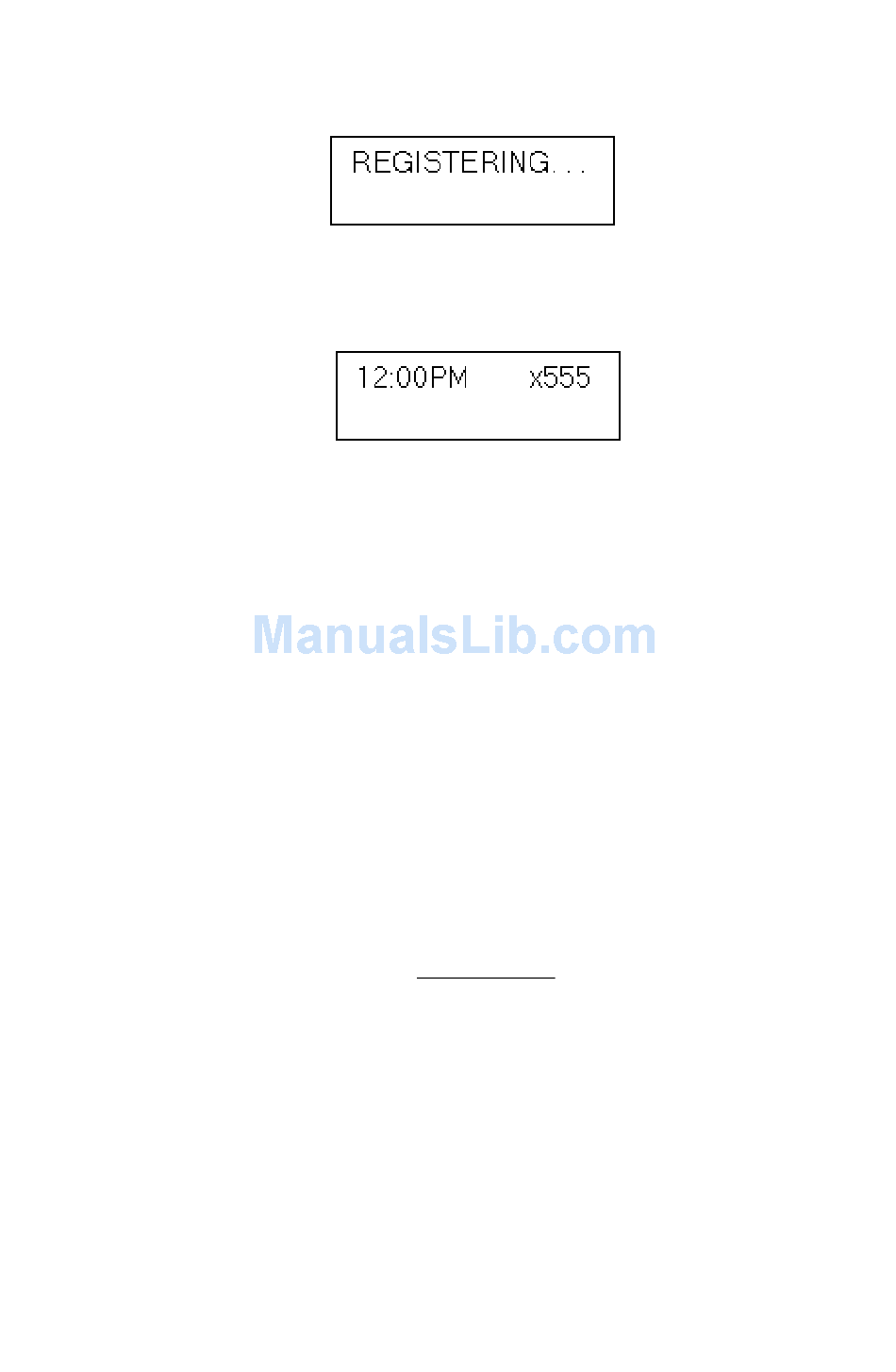

8. The phone will attempt to register as shown in the LCD screen.
If the phone successfully passes through these stages, the phone shows
the time and extension in the LCD screen and is now in normal
operating mode.
Note: The Alti-IP 600 AltiWare IP address, TFTP (IP) address and other
network related configuration parameters will override the
AltiAdmin's settings when the phone registers with AltiServ.
Other parameters will still be overridden by the AltiAdmin settings
as before.
Otherwise, refer to "Troubleshooting" on page 35.
9. Set up IP Phone properties in AltiWare as described in Step 2 -
"AltiAdmin/ACM Admin Setup - AltiGen IP Phone Configuration
Window" on page 7.

Verifying the Phone Startup Process

After the Alti-IP 600 has power connected to it, the phone begins its
automatic booting process by cycling through these steps:
1. All LED lights will be on.
2. The LCD screen displays [ATGN BOOT] on the first line.
3. On the second line of the LCD screen, the following messages are
displayed in succession:
— CHECK MEMORY (RAM checking state)
— CHECK FW (Firmware checking state)
— BOOTING NOW (Initialization of hardware - LCD, network, DSP,
etc.)
— INITIALIZING
