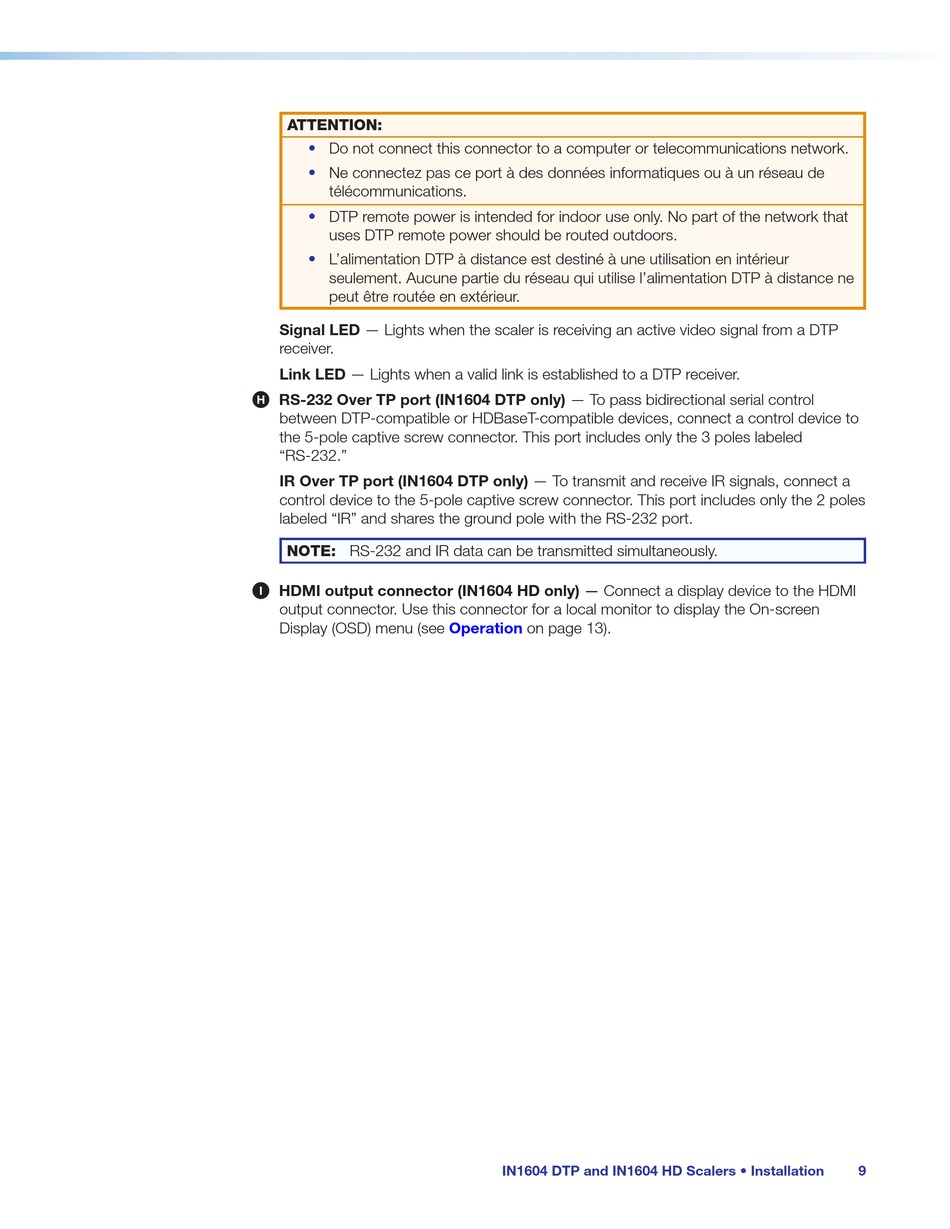

ATTENTION:
•
Do not connect this connector to a computer or telecommunications network.
• Ne connectez pas ce port à des données informatiques ou à un réseau de
télécommunications.
•
DTP remote power is intended for indoor use only. No part of the network that
uses DTP remote power should be routed outdoors.
• L'alimentation DTP à distance est destiné à une utilisation en intérieur
seulement. Aucune partie du réseau qui utilise l'alimentation DTP à distance ne
peut être routée en extérieur.
Signal LED — Lights when the scaler is receiving an active video signal from a DTP
receiver.
Link LED — Lights when a valid link is established to a DTP receiver.
RS-232 Over TP port (IN1604 DTP only) — To pass bidirectional serial control
H
between DTP-compatible or HDBaseT-compatible devices, connect a control device to
the 5-pole captive screw connector. This port includes only the 3 poles labeled
"RS-232."
IR Over TP port (IN1604 DTP only) — To transmit and receive IR signals, connect a
control device to the 5-pole captive screw connector. This port includes only the 2 poles
labeled "IR" and shares the ground pole with the RS-232 port.
NOTE: RS-232 and IR data can be transmitted simultaneously.
HDMI output connector (IN1604 HD only) — Connect a display device to the HDMI
I
output connector. Use this connector for a local monitor to display the On-screen
Display (OSD) menu (see Operation on page 13).
IN1604 DTP and IN1604 HD Scalers • Installation 9
