15. 3 Connectors

P35
P35
1-971600-01 P01
P33
IC305
P32
P32
IC304
Top Edge:
P80 Power supply unit
Rear Edge (top to bottom):
P35 Bar code wand interface (see chapter 15.4)
P33 Electronic keys (see chapter 15.4)
P32 Serial RS 232C interface "uart1:", (see chap-
ter 16.2)
P25 Memory card adapter (see chapter 15.4)
Bottom Part:
P421 Stepper Motor 2 (paper rewind unit, option)
P58 Cable to cutter interface on printer's front
P31 Centronics interface board (see chapter 16.3)
Intermec EasyCoder 601 XP – Service Manual Ed. 2

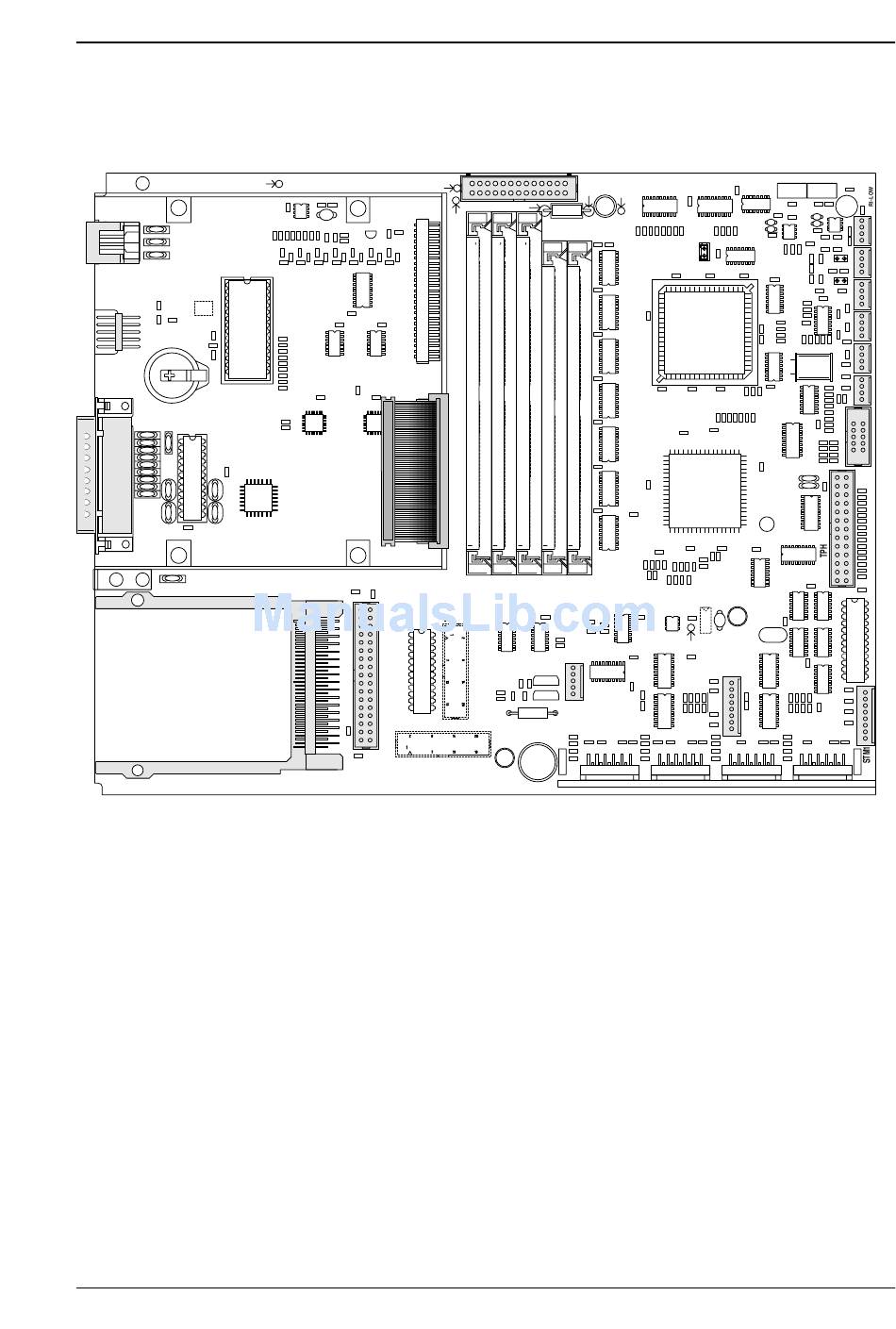

The following connectors on the CPU board are used in the printer
for communication with various devices and sensors.
P82
P81
P25
P31
P83
P84
P80
CONNECTORS FROM TOP
2=RI-LOW
3=RI-END
4=LTS
5=LSS-TOP
6=LSS-BOT
8=HEADL.
CUTTER
P58
Centre of Pcb:
P81 Optional interface board (see chapter 16.4 –
16.5)
P82 Presently not used
Front Edge (top to bottom):
P57 Ribbon low sensor (option)
P52 Ribbon end sensor
P51 Label-taken sensor (option)
P53 Label stop sensor (upper part)
P54 Label stop sensor (lower part)
P50 Headlift sensor
P37 Console pcb
P41 Thermal printhead data
P420 Stepper motor 1 (print unit)
Chapter 15 CPU Board
IC11
STM2
P421 P420
P57
P52
P51
P53
P54
P50
P37
KEYB.
P41
