16.4 Industrial Interface
Board,
cont'd.
Intermec EasyCoder 601 XP – Service Manual Ed. 2
Installation, cont'd.

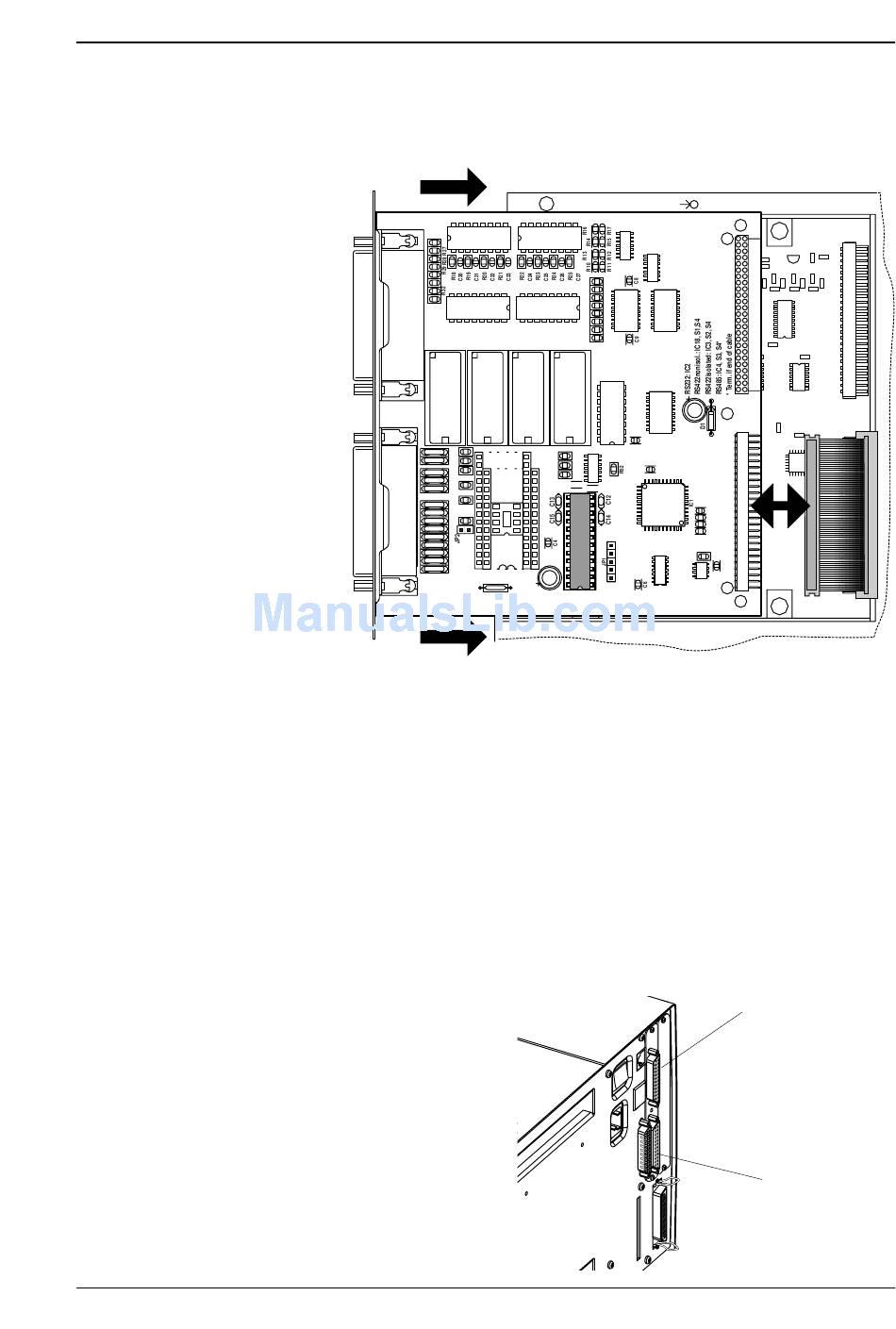

• Connect the cable running from P81 on the CPU board to
connector P1 on the Industrial Interface Board.
IC15 IC16
R26
P35
R30
R31
IC14 IC13
R33 1-971600-01 P01
REL1 REL2 REL3
P4
R50
F10
F11
P32
R6
F12
R7
F13
F14
R4
F9
R5
F8
R51
F6
F5
F4 S4
IC18
F3
F7
F2
F1
IC4 IC3
P3
RP1
• Put back the cover over the electronics compartment. Press
firmly to compress the leaf springs along the front and rear edges
of the electronics compartment.
• Connect the cables to the industrial interface and/or the serial
interface.
• Connect the power cord and switch on the power.
• If you intend to use the serial interface ("uart2:"), enter the Setup
Mode to set the proper baudrate, character length, parity, number
of stop bits, flowcontrol, new line and buffer size parameters.
Now you have two new interface connectors on the printer's rear
plate in addition to the standard serial interface "uart1:" and the
standard parallel interface "centronics:".
