8.6 Label Stop Sensor,
cont'd.

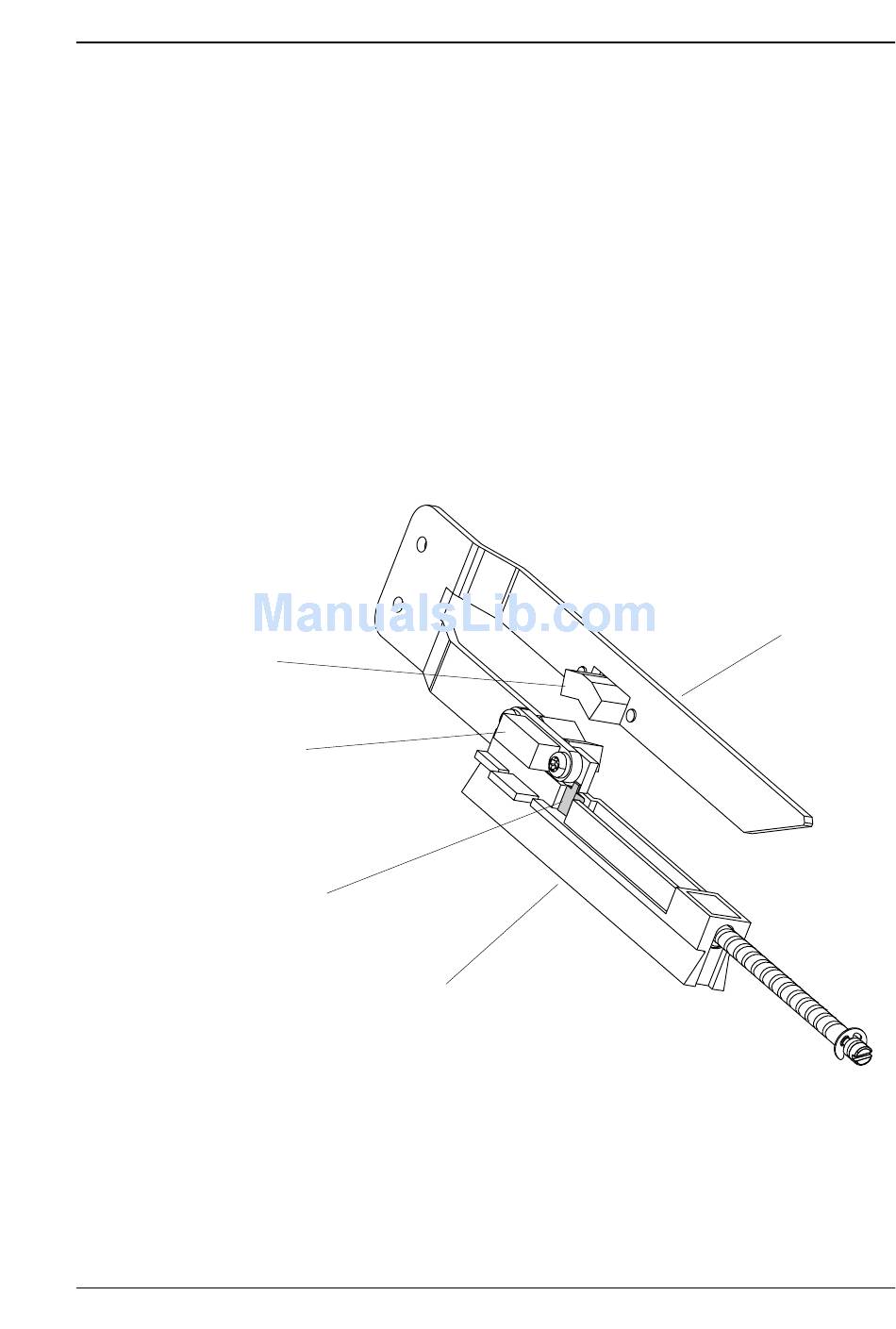

Upper Sensor
Lower Sensor
Intermec EasyCoder 601 XP – Service Manual Ed. 2
Replacing the Sensors
To remove the LSS bracket from the carriage, e.g. for cleaning or
replacing a sensor, proceed as follows:
• Turn off the power, remove the power cord and remove the cover
over the electronics compartment.
• Remove the upper and lower plastic guide plates.
• Adjust the LSS to approximately centre position.
• Disconnect the cables from P53 and P54 on the CPU board.
• Disengage the snap-lock, using a screwdriver from the paper
compartment side, and push the outer end of the LSS bracket
upward. Then pull the bracket out from the carriage, taking care
not to damage the cables.
Note! The snap-lock is fragile.
• Remove the two #T8 Torx screws that hold the defective sensor
and replace it.
Snap-Lock
Carriage
Chapter 8 Print Unit
LSS Bracket
