Stepper Motor - Intermec EasyCoder 601 XP Service Manual

8.3 Stepper Motor,

cont'd.
#T20 Torx Screw
Stepper Motor
Bracket
(to Pressing Roller)
Intermec EasyCoder 601 XP – Service Manual Ed. 2

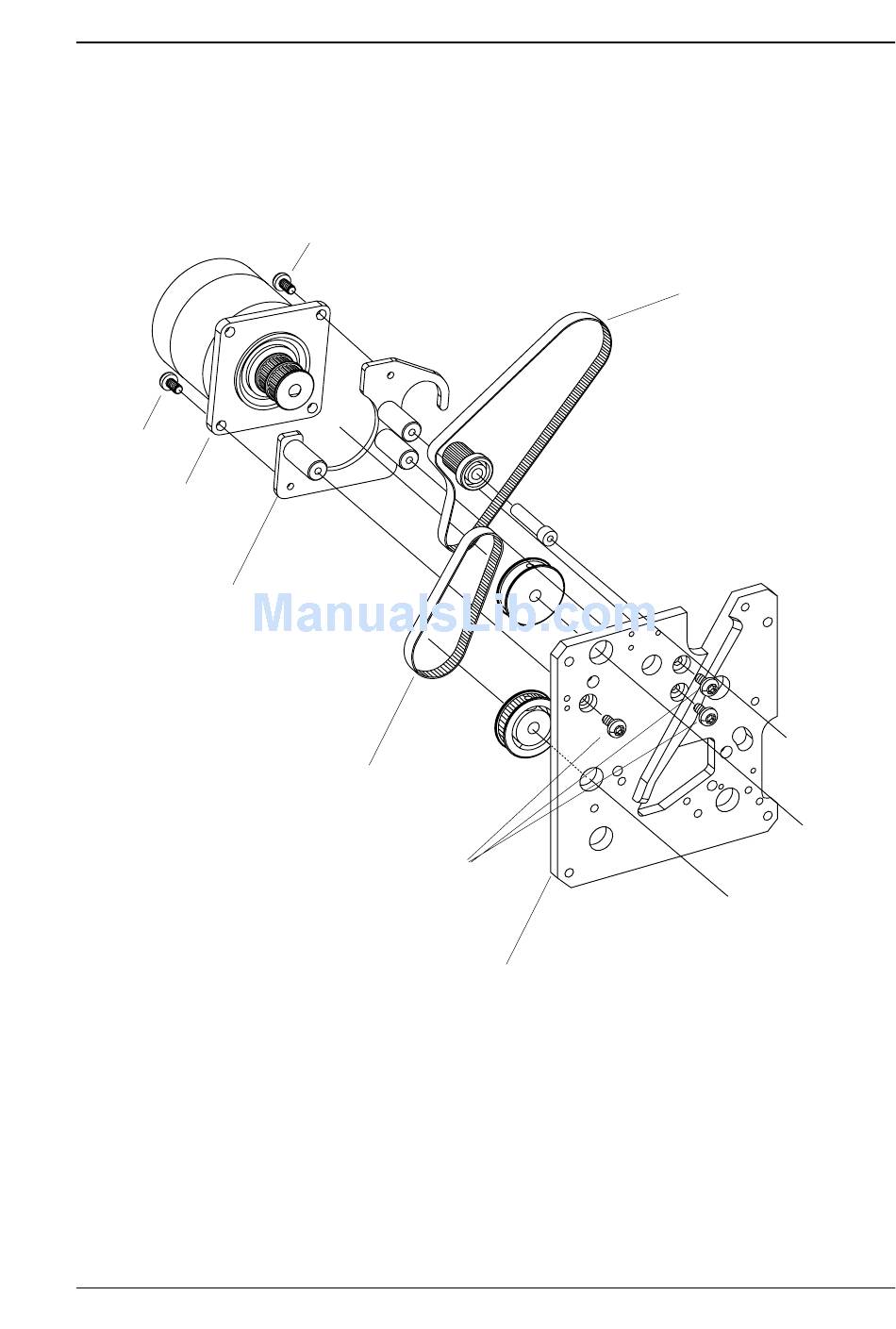

In the illustration below, most parts of the print unit have been
omitted to improve visibility. Note that the bracket does not need to
be removed when the stepper motor is replaced.
#T20 Torx Screw
Belt
#T20 Torx Screws (3x)
Inner Print Unit Gable
Chapter 8 Print Unit
Belt
(to Ribbon Rewind Unit
and ribbon Return Roller)
Fitted to Centre-
line Wall
Fitted on Return
Roller Shaft
Fitted on Pressing
Roller Shaft
