8.1 Description,
Intermec EasyCoder 601 XP – Service Manual Ed. 2

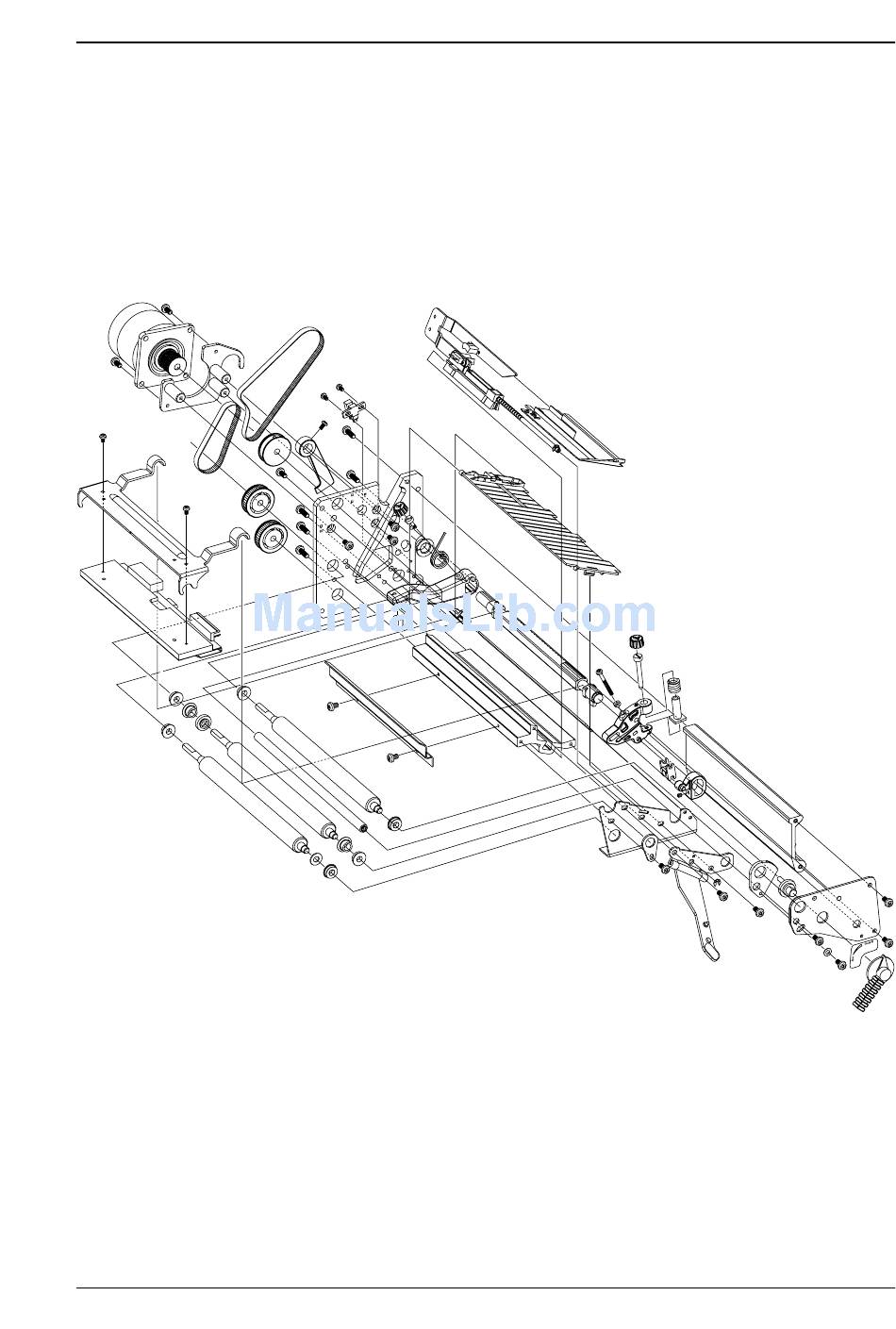

This overview illustrates the various parts in the print unit. The idle
cont'd.
pulley fitted to the centre-line wall and the ribbon rewind unit are
not included. Note that some of the parts illustrated here are not
available as separate spare parts, but must be bought as ready-
assembled units.
Chapter 8
Print Unit
41
