5. Paper Supply
5.1 Internal Supply

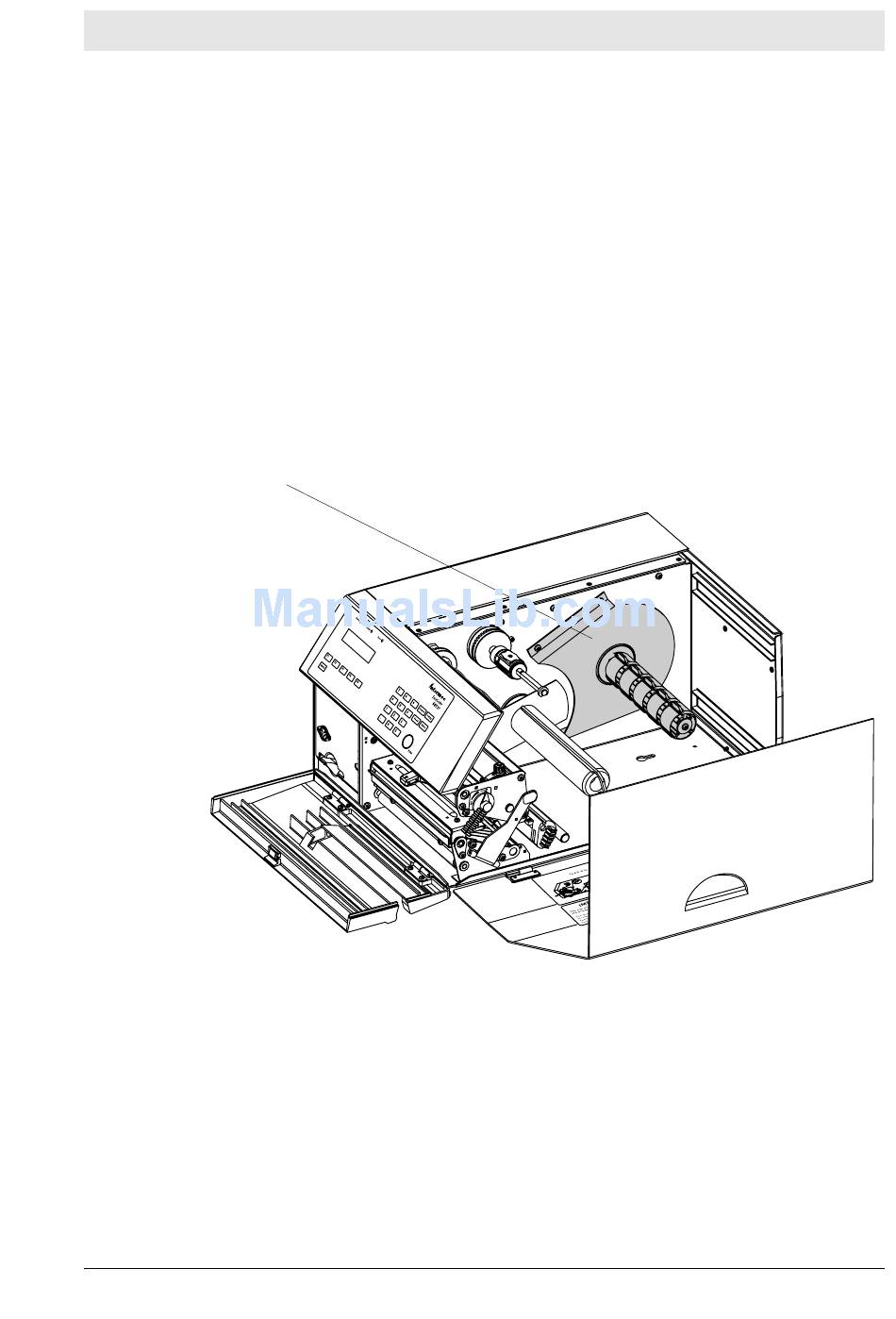

Paper Supply Spool
Intermec EasyCoder 601 XP – Service Manual Ed. 2
The internal paper supply consists of a shaft with five modular
bobbins on which a paper roll can be fitted. The shaft is screwed into
a flange fitted to the centre-line wall by means of two #T20 Torx
screws inserted from the electronics compartment. The bobbins are
spring-loaded in order to fit paper roll cores with an inner diameter
between 38 and 40 mm (1.5 – 1.6").
A large crescent-shaped plate keeps the paper roll aligned with the
print mechanism.
Maximum diameter of an internal paper roll is 205 mm (8") and
maximum width is 168 mm (6.61").
