Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Main Frame
1
Application Point
2
2
Application Point

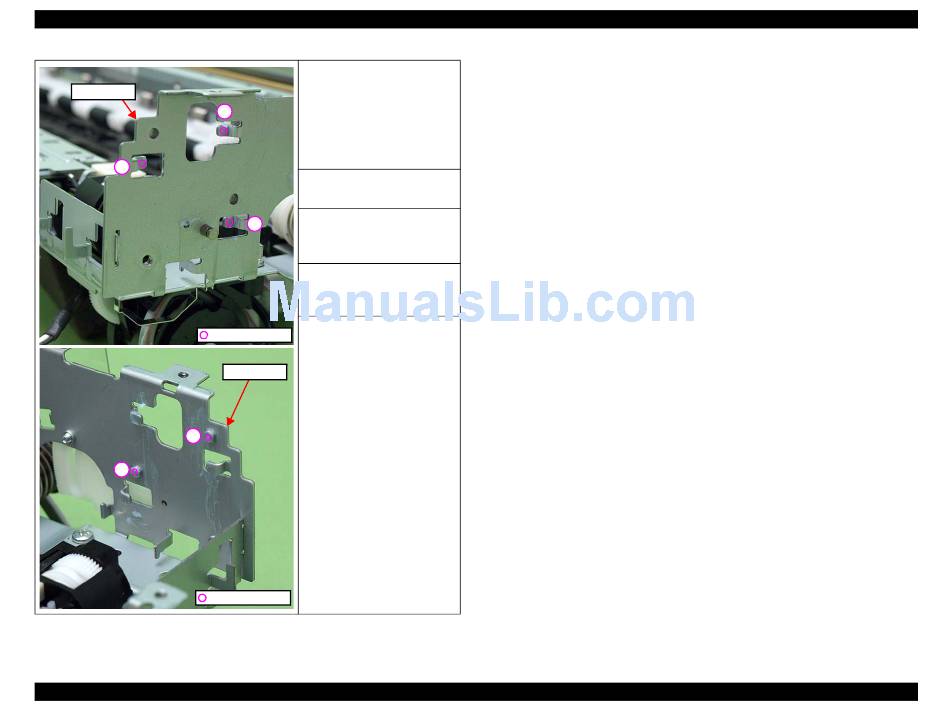

Figure 6-24. Lubrication of the Main Frame on the right
MAINTENANCE
<Lubrication Points>
1. Contact points between the
Main Frame and the fixing
1
plate R. (Three hooks)
2. Contact points between the
Main Frame and the fixing
plate R. (Two dowels)
<Type>
G-71
<Application Amount>
1
1. φ 3 x sufficient quantity
2. φ 1 x sufficient quantity
<Application Timing>
Before installing the fixing plate
R.
<Remarks>
Apply with injector
Main Frame
