Rack Mounting

UL Guidelines for Rack Mounting
The following Underwriters Laboratories (UL) guidelines are relevant to the safe installation of
these products in a rack:
• Elevated operating ambient temperature — If the unit is installed in a closed or
multi-unit rack assembly, the operating ambient temperature of the rack environment
may be greater than room ambient temperature. Therefore, install the equipment in an
environment compatible with the maximum ambient temperature
(TMA = +122 °F, +50 °C) specified by Extron.
• Reduced air flow — Install the equipment in the rack so that safe operation and
adequate air flow is provided to the unit.
• Mechanical loading — Mount the equipment in the rack so that a hazardous
condition is not achieved due to uneven mechanical loading.
Circuit overloading — Connect the equipment to the supply circuit and consider the
•
effect that circuit overloading might have on overcurrent protection and supply wiring.
Consider the equipment nameplate ratings when addressing this concern.
Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted
•
equipment. Pay particular attention to supply connections other than direct
connections.
Rack Mounting Procedure
The ShareLink 200 can be mounted in a rack, using an optional Extron rack mounting kit
(see www.extron.com

Under-desk and Furniture Mounting

The ShareLink 200 can be mounted under a desk or podium (see figure 47), using
an optional Extron mounting kit (see
instructions provided with the kit.

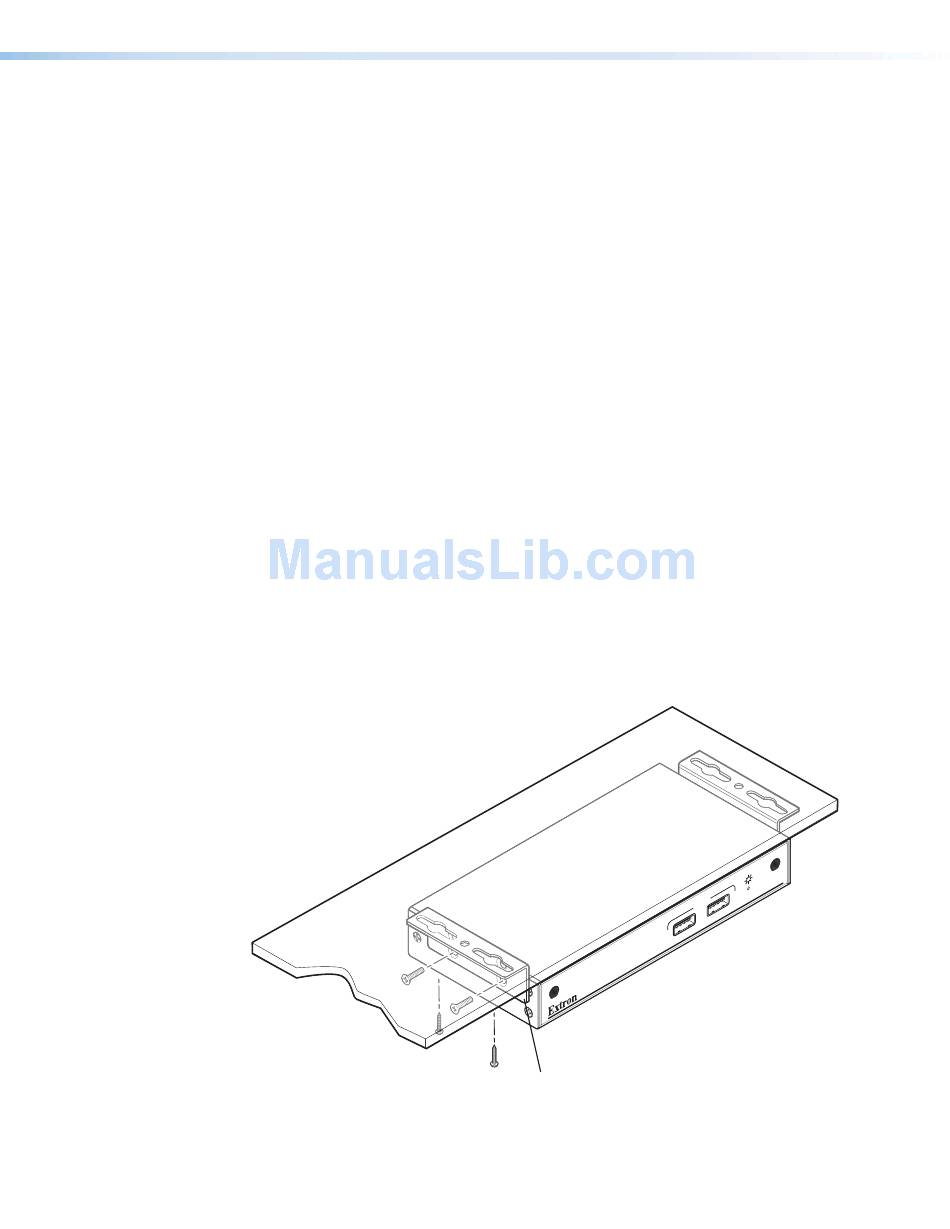

Figure 47.
for part numbers). Follow the instructions provided with the kit.
www.extron.com
ShareLink 200 with Optional MBU 125
for part numbers). Follow the
B
U S
2
1
ShareLink 200
T A
A N
MBU 125
Mounting Bracket
