4

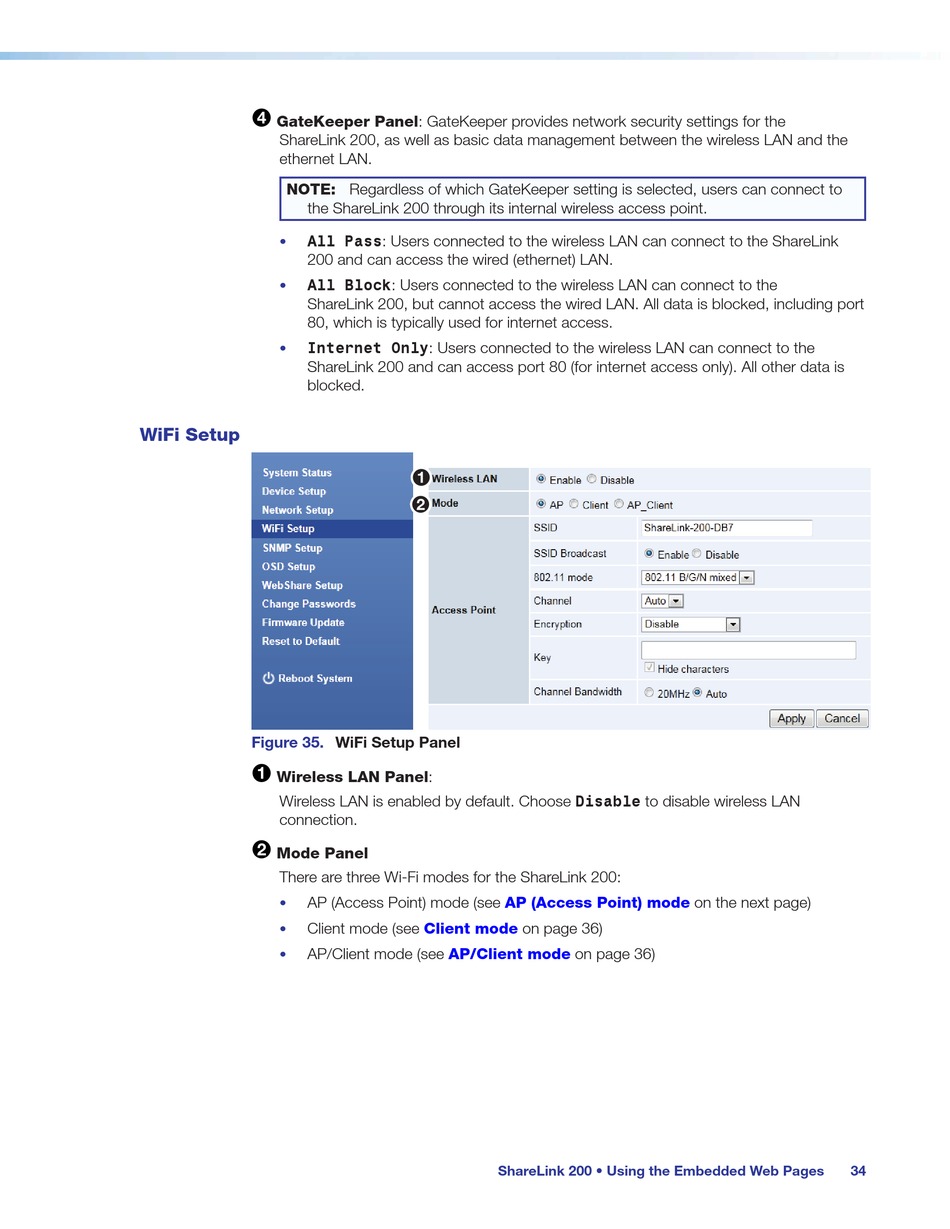

GateKeeper Panel: GateKeeper provides network security settings for the
ShareLink 200, as well as basic data management between the wireless LAN and the
ethernet LAN.
NOTE: Regardless of which GateKeeper setting is selected, users can connect to
the ShareLink 200 through its internal wireless access point.
All Pass: Users connected to the wireless LAN can connect to the ShareLink
•
200 and can access the wired (ethernet) LAN.
All Block: Users connected to the wireless LAN can connect to the
•
ShareLink 200, but cannot access the wired LAN. All data is blocked, including port
80, which is typically used for internet access.
Internet Only: Users connected to the wireless LAN can connect to the
•
ShareLink 200 and can access port 80 (for internet access only). All other data is
blocked.

WiFi Setup

Figure 35.
1
Wireless LAN Panel:
Wireless LAN is enabled by default. Choose Disable to disable wireless LAN
connection.
2
Mode Panel
There are three Wi-Fi modes for the ShareLink 200:
AP (Access Point) mode (see
•
Client mode (see
•
AP/Client mode (see
•
1 1
2 2
WiFi Setup Panel
AP (Access Point) mode
Client mode
AP/Client mode
ShareLink 200 • Using the Embedded Web Pages
on the next page)
on page 36)
on page 36)
34
