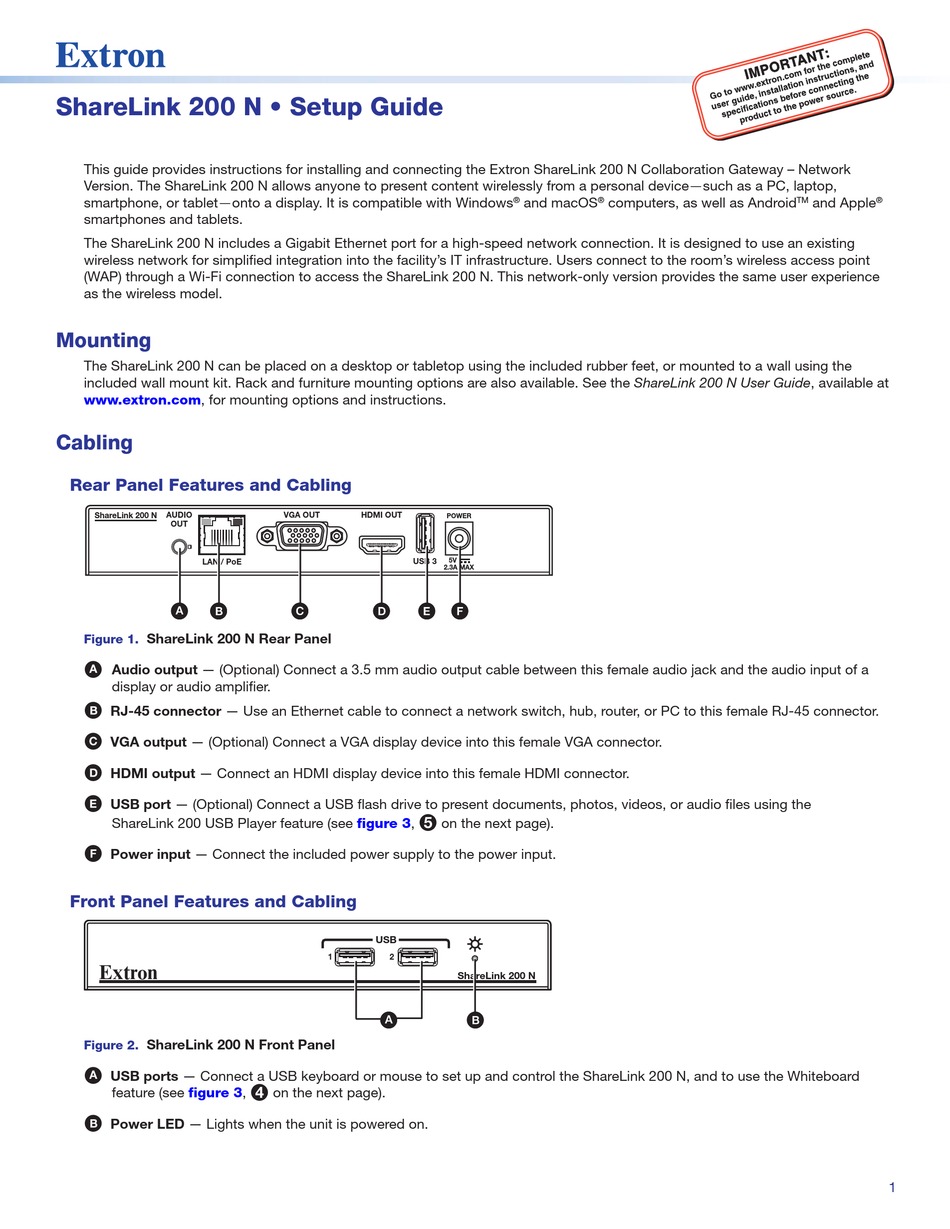

ShareLink 200 N • Setup Guide
This guide provides instructions for installing and connecting the Extron ShareLink 200 N Collaboration Gateway – Network
Version. The ShareLink 200 N allows anyone to present content wirelessly from a personal device—such as a PC, laptop,
Extron
smartphone, or tablet—onto a display. It is compatible with Windows
smartphones and tablets.
The ShareLink 200 N includes a Gigabit Ethernet port for a high‑speed network connection. It is designed to use an existing
wireless network for simplified integration into the facility's IT infrastructure. Users connect to the room's wireless access point
(WAP) through a Wi‑Fi connection to access the ShareLink 200 N. This network‑only version provides the same user experience
as the wireless model.
Mounting
The ShareLink 200 N can be placed on a desktop or tabletop using the included rubber feet, or mounted to a wall using the
included wall mount kit. Rack and furniture mounting options are also available. See the ShareLink 200 N User Guide, available at
www.extron.com, for mounting options and instructions.
Cabling
Rear Panel Features and Cabling
ShareLink 200 N
AUDIO
OUT
LAN / PoE
A A B B
ShareLink 200 N Rear Panel
Figure 1.
A
Audio output — (Optional) Connect a 3.5 mm audio output cable between this female audio jack and the audio input of a
display or audio amplifier.
B
RJ-45 connector — Use an Ethernet cable to connect a network switch, hub, router, or PC to this female RJ‑45 connector.
C
VGA output — (Optional) Connect a VGA display device into this female VGA connector.
D
HDMI output — Connect an HDMI display device into this female HDMI connector.
E
USB port — (Optional) Connect a USB flash drive to present documents, photos, videos, or audio files using the
ShareLink 200 USB Player feature (see
F
Power input — Connect the included power supply to the power input.
Front Panel Features and Cabling
Extron
ShareLink 200 N Front Panel
Figure 2.
A
USB ports — Connect a USB keyboard or mouse to set up and control the ShareLink 200 N, and to use the Whiteboard
feature (see
figure
3,
B
Power LED — Lights when the unit is powered on.
USB
1
2
A A
VGA OUT
HDMI OUT
USB 3
C C
D D
E E F F
figure
3,
5
USB
1
2
A A
4
on the next page).
ShareLink 200 N
and macOS
computers, as well as Android
®
®
B B
POWER
5V
2.3A MAX
on the next page).
ShareLink 200 N
B B
and Apple
TM
®
1
