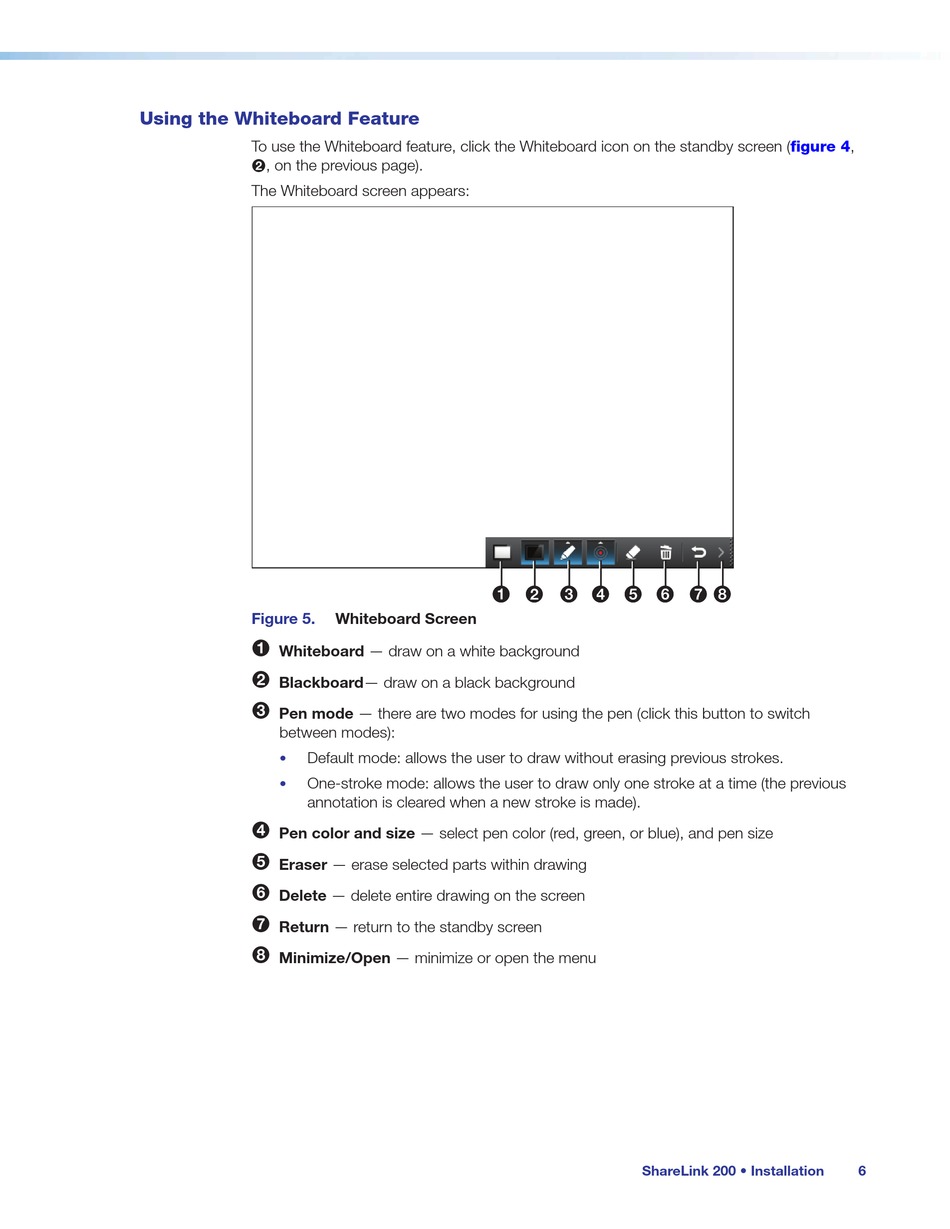

Using the Whiteboard Feature

To use the Whiteboard feature, click the Whiteboard icon on the standby screen
2 , on the previous page).
The Whiteboard screen appears:
Figure 5.
1
Whiteboard — draw on a white background
2
Blackboard— draw on a black background
3
Pen mode — there are two modes for using the pen (click this button to switch
between modes):
Default mode: allows the user to draw without erasing previous strokes.
•
One-stroke mode: allows the user to draw only one stroke at a time (the previous
•
annotation is cleared when a new stroke is made).
4
Pen color and size — select pen color (red, green, or blue), and pen size
5
Eraser — erase selected parts within drawing
6
Delete — delete entire drawing on the screen
7
Return — return to the standby screen
8
Minimize/Open — minimize or open the menu
1 1
Whiteboard Screen
2 2 3 3 4 4 5 5 6 6 7 7
ShareLink 200 • Installation
(figure 4,
8 8
6
