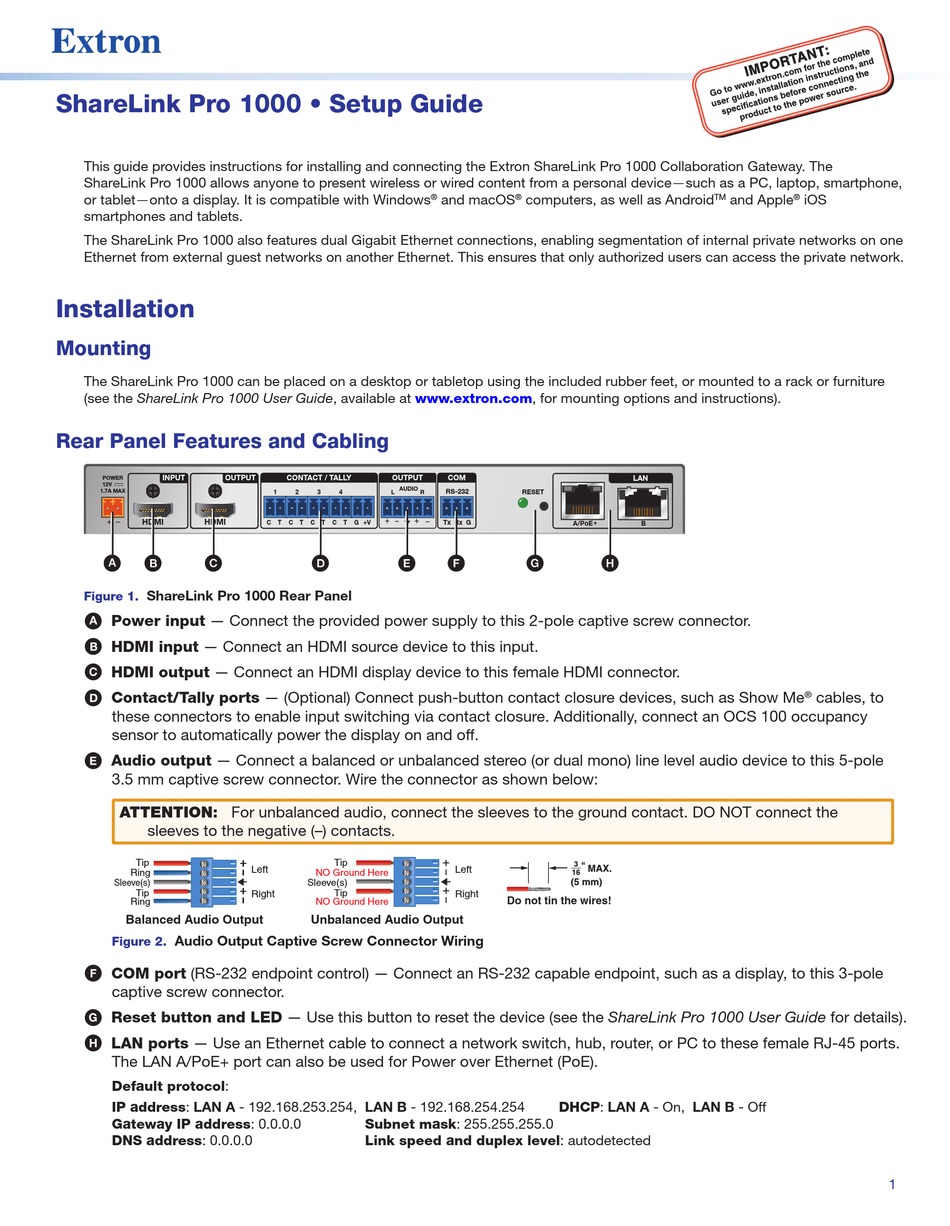

ShareLink Pro 1000 • Setup Guide
This guide provides instructions for installing and connecting the Extron ShareLink Pro 1000 Collaboration Gateway. The
ShareLink Pro 1000 allows anyone to present wireless or wired content from a personal device—such as a PC, laptop, smartphone,
or tablet—onto a display. It is compatible with Windows
smartphones and tablets.
The ShareLink Pro 1000 also features dual Gigabit Ethernet connections, enabling segmentation of internal private networks on one
Ethernet from external guest networks on another Ethernet. This ensures that only authorized users can access the private network.

Installation

Mounting

The ShareLink Pro 1000 can be placed on a desktop or tabletop using the included rubber feet, or mounted to a rack or furniture
(see the ShareLink Pro 1000 User Guide, available at www.extron.com, for mounting options and instructions).

Rear Panel Features and Cabling

INPUT OUTPUT
POWER
12V
1.7A MAX
HDMI HDMI
A A B B C C
ShareLink Pro 1000 Rear Panel
Figure 1.
Power input — Connect the provided power supply to this 2-pole captive screw connector.
A
HDMI input — Connect an HDMI source device to this input.
B
HDMI output — Connect an HDMI display device to this female HDMI connector.
C
Contact/Tally ports — (Optional) Connect push-button contact closure devices, such as Show Me
D
these connectors to enable input switching via contact closure. Additionally, connect an OCS 100 occupancy
sensor to automatically power the display on and off.
Audio output — Connect a balanced or unbalanced stereo (or dual mono) line level audio device to this 5-pole
E
3.5 mm captive screw connector. Wire the connector as shown below:
ATTENTION: For unbalanced audio, connect the sleeves to the ground contact. DO NOT connect the
sleeves to the negative (–) contacts.
Tip
Ring
Sleeve(s)
Tip
Ring
Balanced Audio Output
Audio Output Captive Screw Connector Wiring
Figure 2.
COM port (RS-232 endpoint control) — Connect an RS-232 capable endpoint, such as a display, to this 3-pole
F
captive screw connector.
Reset button and LED — Use this button to reset the device (see the ShareLink Pro 1000 User Guide for details).
G
LAN ports — Use an Ethernet cable to connect a network switch, hub, router, or PC to these female RJ-45 ports.
H
The LAN A/PoE+ port can also be used for Power over Ethernet (PoE).
Default protocol:
IP address: LAN A - 192.168.253.254, LAN B - 192.168.254.254
Gateway IP address: 0.0.0.0
DNS address: 0.0.0.0
®
CONTACT / TALLY OUTPUT
AUDIO
1 2 3 4 L R
C T C T C T C T G +V
D D E E
Tip
Left
NO Ground Here
Sleeve(s)
Tip
Right
NO Ground Here
Unbalanced Audio Output
Subnet mask: 255.255.255.0
Link speed and duplex level: autodetected
and macOS computers, as well as Android
®
COM
RS-232 RESET
Tx Rx G
A/PoE +
F F G G H H
Left
Right
Do not tin the wires!
DHCP: LAN A - On, LAN B - Off
and Apple iOS
TM ®
LAN
B
®
cables, to
1
