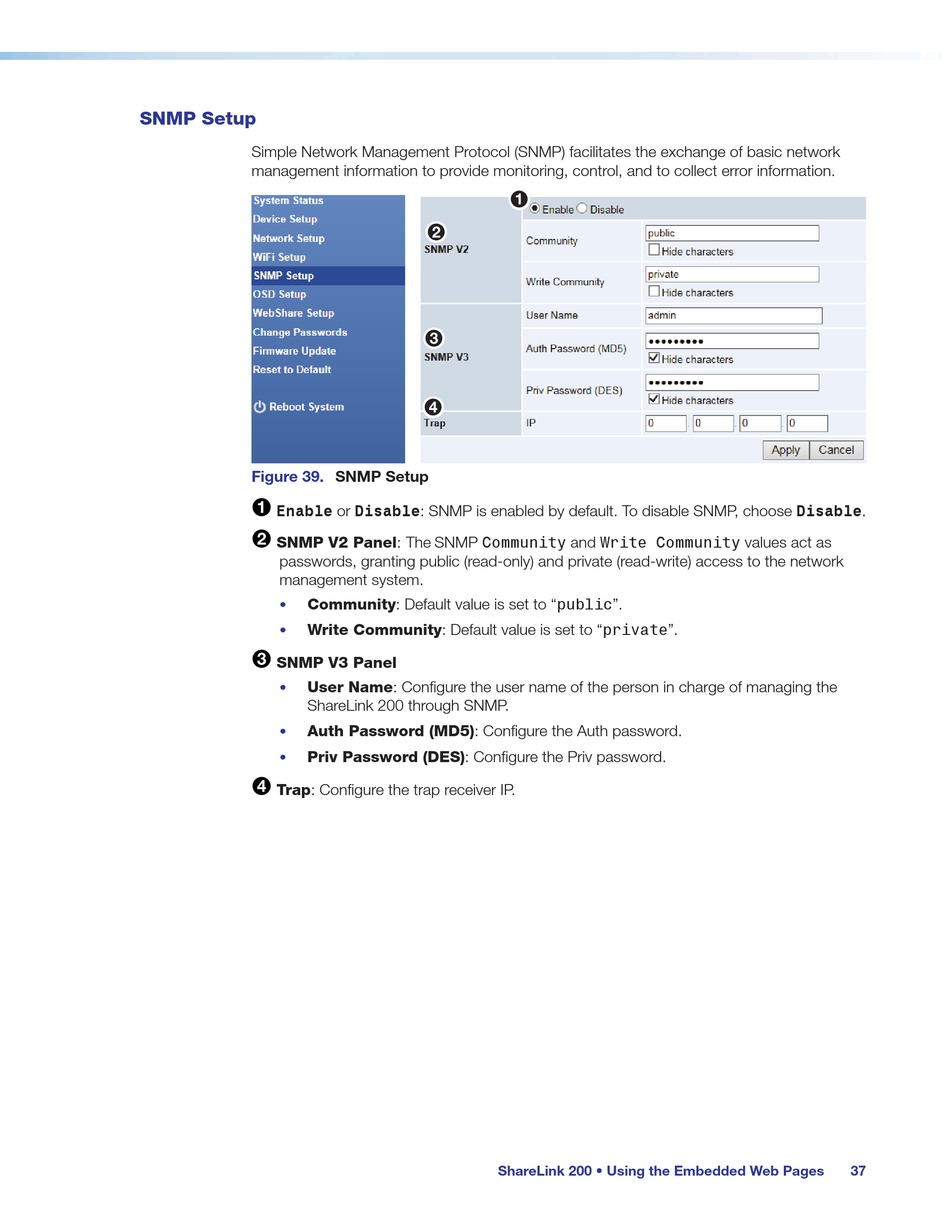

SNMP Setup

Simple Network Management Protocol (SNMP) facilitates the exchange of basic network
management information to provide monitoring, control, and to collect error information.
Figure 39.
1
Enable or Disable: SNMP is enabled by default. To disable SNMP, choose Disable.
2
SNMP V2 Panel: The SNMP Community and Write Community values act as
passwords, granting public (read-only) and private (read-write) access to the network
management system.
Community: Default value is set to "public".
•
Write Community: Default value is set to "private".
•
3
SNMP V3 Panel
User Name: Configure the user name of the person in charge of managing the
•
ShareLink 200 through SNMP.
Auth Password (MD5): Configure the Auth password.
•
Priv Password (DES): Configure the Priv password.
•
4
Trap: Configure the trap receiver IP.
1 1
2 2
3 3
4 4
SNMP Setup
ShareLink 200 • Using the Embedded Web Pages 37
