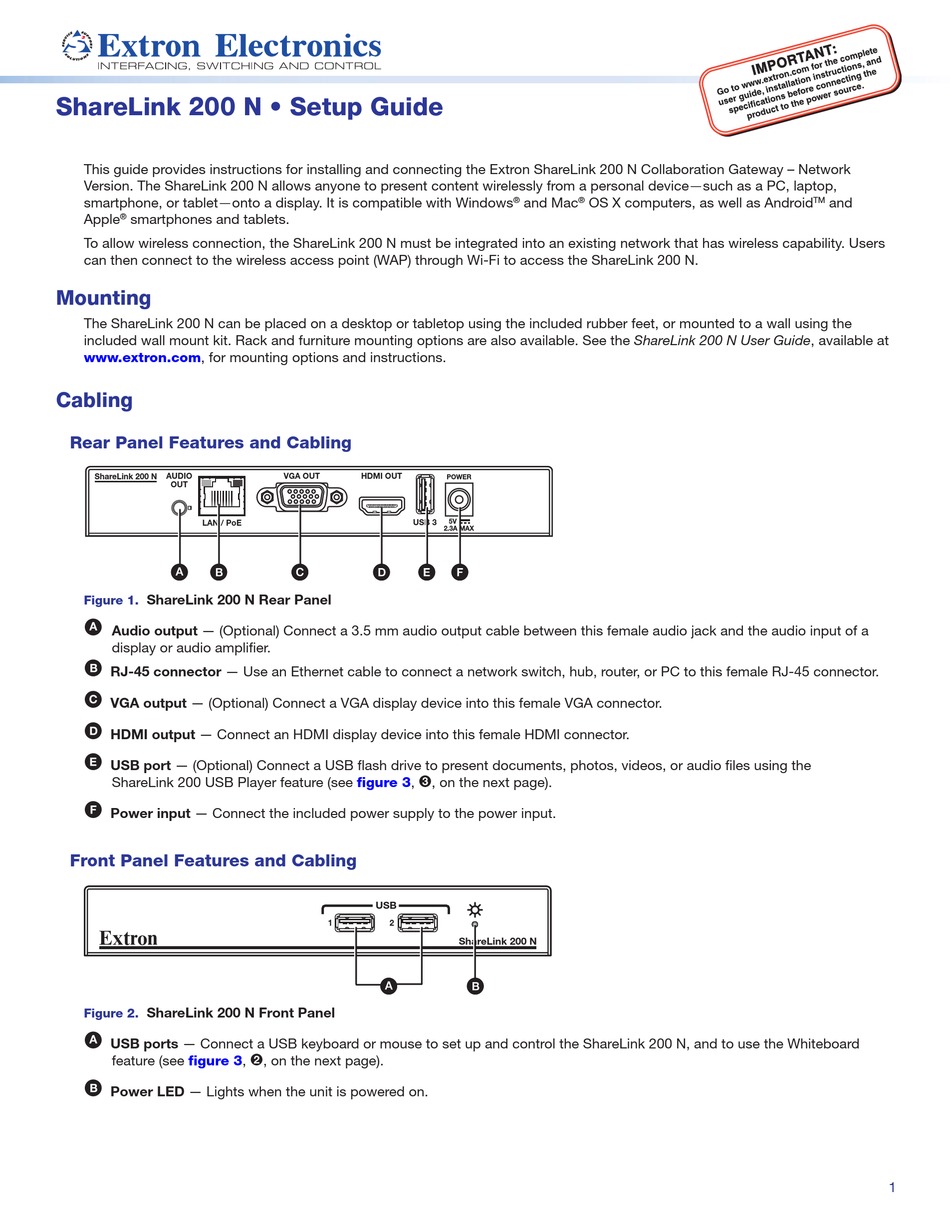

ShareLink 200 N • Setup Guide
Extron
This guide provides instructions for installing and connecting the Extron ShareLink 200 N Collaboration Gateway – Network
Version. The ShareLink 200 N allows anyone to present content wirelessly from a personal device—such as a PC, laptop,
smartphone, or tablet—onto a display. It is compatible with Windows
Apple smartphones and tablets.
®
To allow wireless connection, the ShareLink 200 N must be integrated into an existing network that has wireless capability. Users
can then connect to the wireless access point (WAP) through Wi-Fi to access the ShareLink 200 N.
Mounting
The ShareLink 200 N can be placed on a desktop or tabletop using the included rubber feet, or mounted to a wall using the
included wall mount kit. Rack and furniture mounting options are also available. See the ShareLink 200 N User Guide, available at
www.extron.com, for mounting options and instructions.
Cabling
Rear Panel Features and Cabling
ShareLink 200 N AUDIO
OUT
LAN / PoE
A A B B
ShareLink 200 N Rear Panel
Figure 1.
A
Audio output — (Optional) Connect a 3.5 mm audio output cable between this female audio jack and the audio input of a
display or audio amplifier.
B
RJ-45 connector — Use an Ethernet cable to connect a network switch, hub, router, or PC to this female RJ-45 connector.
C
VGA output — (Optional) Connect a VGA display device into this female VGA connector.
D
HDMI output — Connect an HDMI display device into this female HDMI connector.
E
USB port — (Optional) Connect a USB flash drive to present documents, photos, videos, or audio files using the
ShareLink 200 USB Player feature (see
F
Power input — Connect the included power supply to the power input.

Front Panel Features and Cabling

Extron
ShareLink 200 N Front Panel
Figure 2.
A
USB ports — Connect a USB keyboard or mouse to set up and control the ShareLink 200 N, and to use the Whiteboard
feature (see figure 3, 2, on the next page).
B
Power LED — Lights when the unit is powered on.
USB
1 2
ShareLink 200 N
A A
VGA OUT HDMI OUT
POWER
USB 3 5V
2.3A MAX
C C D D E E F F
figure 3, 3, on the next page).
USB
1 2
ShareLink 200 N
A A
and Mac OS X computers, as well as Android
® ®
B B
IMPORTANT:
Refer to www.extron.com for the complete
user guide, installation instructions, and
specifications before connecting the
product to the power source.
B B
