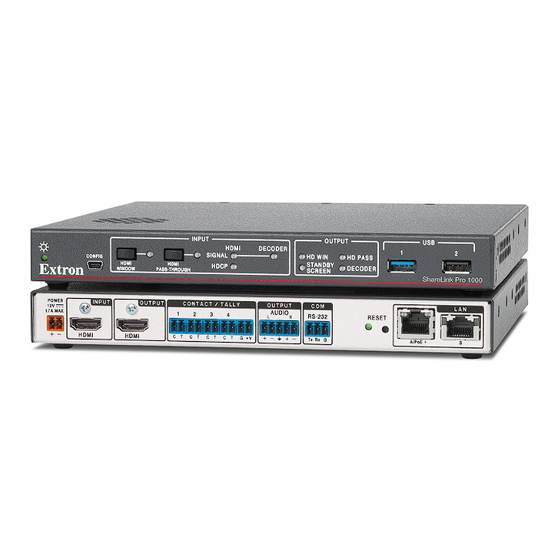

- Page 1 User Guide Collaboration Systems ShareLink Pro 1000 Wireless and Wired Collaboration Gateway 68-3353-01 Rev. A 02 19...
- Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad WARNING This symbol, , when used on the product, is intended to avvertire l’utente della presenza di tensione non isolata pericolosa alert the user of the presence of uninsulated dangerous voltage within the all’interno del contenitore del prodotto che può...
- Page 3 ついては、 エクス トロンのウェブサイ ト より 『Extron Safety www.extron.com and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧ください。 Copyright © 2019 Extron Electronics. All rights reserved. www.extron.com Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks ( ®...
- Page 4 FCC Class B Notice NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. Specifications Availability Product specifications are available on the Extron website, www.extron.com.
-
Page 6: Table Of Contents
Connecting through a Network Hub, Switch, or Router ......... 10 Downloading the ShareLink Pro 1000 Software ............10 Using the ShareLink Pro 1000 Software ... 12 Connecting to the ShareLink Pro 1000 receiver ............12 Presenting content........13 Moderating a Presentation ......14 Using the Embedded Web Page ....... - Page 7 ShareLink Pro 1000 • Contents...
-
Page 8: Introduction
To support a wide range of environments, the ShareLink Pro 1000 has collaboration and moderator modes that facilitate both open and restrictive environments. The ShareLink Pro 1000 provides easy integration of AV and mobile devices into meeting, huddle, collaboration, and presentation spaces. Display... -
Page 9: Features
• WebShare technology displays slide images on attendee’s personal devices via a Web browser — The ShareLink Pro 1000 enables meeting content to display on a participant’s mobile device. This is ideal for attendees who cannot easily view the main display. - Page 10 IT administrators. • Video screen saver — The ShareLink Pro 1000 can be set to automatically mute video and sync output to the display device when no active connections are detected, automatically entering the display into standby mode to conserve energy, reducing costs and promoting panel life.
-
Page 11: Installation
(–). Left Left Ring NO Ground Here Sleeve(s) Sleeve(s) Right Right Do not tin the wires! Ring NO Ground Here Balanced Audio Output Unbalanced Audio Output Figure 3. Audio Output Captive Screw Connector Wiring ShareLink Pro 1000 • Installation... -
Page 12: Power Notifications
• L’alimentation via Ethernet (PoE) est destinée à une utilisation en intérieur uniquement. Elle doit être connectée seulement à des réseaux ou des circuits qui ne sont pas routés au réseau ou au bâtiment extérieur. ShareLink Pro 1000 • Installation... -
Page 13: Hdmi Connection
( ATTENTION: • Connect and pull the tie wraps until they are secure. Do not overtighten. • Connectez et tirez les serre-câbles jusqu’à ce qu’ils soient sécurisés. Ne pas trop serrer. ShareLink Pro 1000 • Installation... -
Page 14: Reset Modes
Resets the device to the button again momentarily (<1 Reset default configuration. • IP settings reset to default values. second). • Uploaded files are removed. The Reset LED blinks four times in quick succession during the reset. ShareLink Pro 1000 • Installation... -
Page 15: Front Panel Features And Cabling
NOTE: The standby screen images are displayed only when HDMI and decoder sources are not active. HD Pass – Lights green when the HDMI source is active on the output in pass- • through mode. USB ports (future use) ShareLink Pro 1000 • Installation... -
Page 16: Using The Standby Screen
Hostname — Use this hostname to identify and access the ShareLink Pro 1000 during connection. Login code — Use this code to connect to the ShareLink Pro 1000 using the software. This code can be customized or disabled via the Product Configuration Software (PCS). -
Page 17: Operation Using A Computer
Operation Using a Computer Users can present from a Windows or Mac computer using the ShareLink Pro 1000 software. This section covers the following: Connecting a Computer to the ShareLink Pro 1000 • • Downloading the ShareLink Pro 1000 Software Using the ShareLink Pro 1000 Software •... - Page 18 The ShareLink Pro 1000 landing page opens on the browser: Windows users: Mac users: Figure 7. ShareLink Pro Landing Page Mac users: Follow the instructions on the landing page. Windows users: Click Download, and submit any required information to run the executable (.exe) file.
-
Page 19: Using The Sharelink Pro 1000 Software
Open the ShareLink Pro 1000 software. The software searches for available receivers on your network and lists them in the All receivers panel. Click the desired ShareLink Pro 1000 device (see the standby screen for the receiver name). Figure 10. -
Page 20: Presenting Content
ShareLink Pro. Information — This button is only shown if an appropriate audio driver has not been installed. Click this button and follow the on-screen instructions to install the driver. ShareLink Pro 1000 • Operation Using a Computer... -
Page 21: Moderating A Presentation
Moderating a Presentation The ShareLink Pro 1000 default collaboration mode (“Run-Time” mode) allows a user to display content as a participant, or to control the presentation as a moderator. In this mode, everyone in the session starts as a participant, but a user may choose to take over as moderator. -
Page 22: Using The Embedded Web Page
Audience members must follow these steps to watch the presentation: Open a web browser on the computer or mobile device, and enter the IP address of the ShareLink Pro 1000. The landing page opens as shown below. Click View in Webshare (see , below). - Page 23 Moderator password – This password is required to moderate a session. Participant password – This password is required to participate in a session. • Enter and confirm the new password, and click Save. ShareLink Pro 1000 • Operation Using a Computer...
-
Page 24: Operation Using A Mobile Device
Operation Using a Mobile Device The ShareLink Pro 1000 Mobile App is supported by Android and Apple mobile devices, including iPad and iPhone. It allows users to present photos, web pages, device screenshots, and the device camera (see instructions below). -
Page 25: Using Sharelink Pro 1000 App
Using the ShareLink Pro 1000 App Connecting to a Receiver Once the ShareLink Pro 1000 app is installed on the device, follow these steps to connect to the ShareLink Pro receiver: Ensure that the ShareLink Pro is powered and connected to the network. -
Page 26: Presenting Content
For iOS devices, a Share Website option is also available to share the device web browser. View – Click this tab to view the ongoing presentation on your screen. End – Click this tab to disconnect from the ShareLink Pro device. ShareLink Pro 1000 • Operation Using a Mobile Device... -
Page 27: App Menu
Walkthrough — Select this option to see the introductory walkthrough that is shown when the app is first installed. Disconnect — Select this option to disconnect from the ShareLink Pro receiver. ShareLink Pro 1000 • Operation Using a Mobile Device... -
Page 28: Using Ios Screen Mirroring
This feature allows iOS device screens to be mirrored onto the display. Ensure that the ShareLink Pro 1000 is powered and connected to the network. Connect your device to the ShareLink Pro 1000 through Wi-Fi (see step 2 of Connecting to a Receiver on page 18). -
Page 29: Reference Information
• Troubleshooting Mounting The ShareLink Pro 1000 can be placed on a tabletop, or mounted in a rack or underneath a desk. NOTE: Do not block or restrict air ventilation holes on the top and sides of the ShareLink Pro 1000. -
Page 30: Firmware Download
Pay particular attention to supply connections other than direct connections. Rack Mounting Procedure The ShareLink Pro 1000 can be mounted in a rack, using an optional Extron rack mounting kit (see www.extron.com for part numbers). Follow the instructions provided with the kit. -
Page 31: Firewall Traversal
Firewall Traversal In order for the ShareLink Pro 1000 gateway to function correctly with the ShareLink Pro applications, it is recommended that the following firewall rules be used to allow traffic to pass. The table below details the ports and their functions. -
Page 32: Troubleshooting
• In the tabs, check that the Recording Playback ShareLink Pro Audio Driver is enabled. • Download and install the ShareLink Pro 1000 software from the Extron website (see page 10 for instructions). (Windows only) • In the tabs, check that the... - Page 33 Windows 8.1 unable Install Windows update KB2919355. to install .net 4.6.2 Contact/Tally ports Check termination of Contact/Tally ports. are not responsive or are slow to respond ShareLink Pro 1000 • Reference Information...
-
Page 34: Extron Warranty
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
