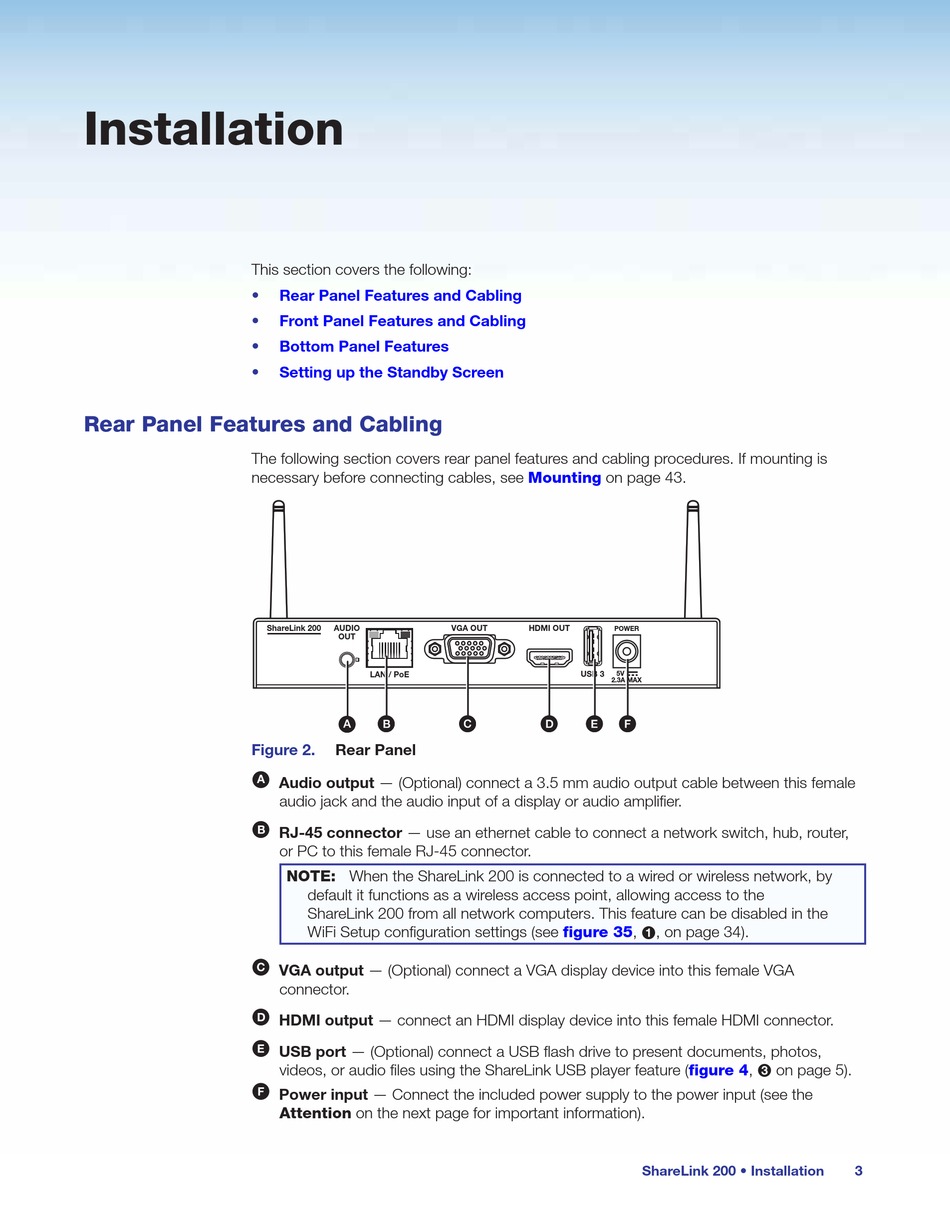

Installation

This section covers the following:
•
•
•
•

Rear Panel Features and Cabling

The following section covers rear panel features and cabling procedures. If mounting is
necessary before connecting cables, see
Figure 2.
A
B
C
D
E
F
ANT A
Rear Panel Features and Cabling
Extron
Front Panel Features and Cabling
Bottom Panel Features
Setting up the Standby Screen
ShareLink 200 AUDIO
OUT
LAN / PoE
A A B B
Rear Panel
Audio output — (Optional) connect a 3.5 mm audio output cable between this female
audio jack and the audio input of a display or audio amplifier.
RJ-45 connector — use an ethernet cable to connect a network switch, hub, router,
or PC to this female RJ-45 connector.
NOTE: When the ShareLink 200 is connected to a wired or wireless network, by
default it functions as a wireless access point, allowing access to the
ShareLink 200 from all network computers. This feature can be disabled in the
WiFi Setup configuration settings (see
VGA output — (Optional) connect a VGA display device into this female VGA
connector.
HDMI output — connect an HDMI display device into this female HDMI connector.
USB port — (Optional) connect a USB flash drive to present documents, photos,
videos, or audio files using the ShareLink USB player feature
Power input — Connect the included power supply to the power input (see the
Attention on the next page for important information).
USB
1 2
B B
A A
Mounting on page 43.
VGA OUT HDMI OUT
POWER
USB 3 5V
2.3A MAX
C C E E F F
D D
35, 1 , on page 34).
figure
ANT B
ShareLink 200
C C
(figure 4, 3 on page 5).
ShareLink 200 • Installation 3
