Client mode
In Client mode, the ShareLink 200 scans for existing access points and connects to one
as a client. In this mode, the ShareLink 200 is no longer configured as an AP and does not
appear as a WAP on user devices. In order to connect to the ShareLink 200, users must
connect to the LAN network.
When Client mode is enabled, the Wi-Fi Client panel is shown with the following options:

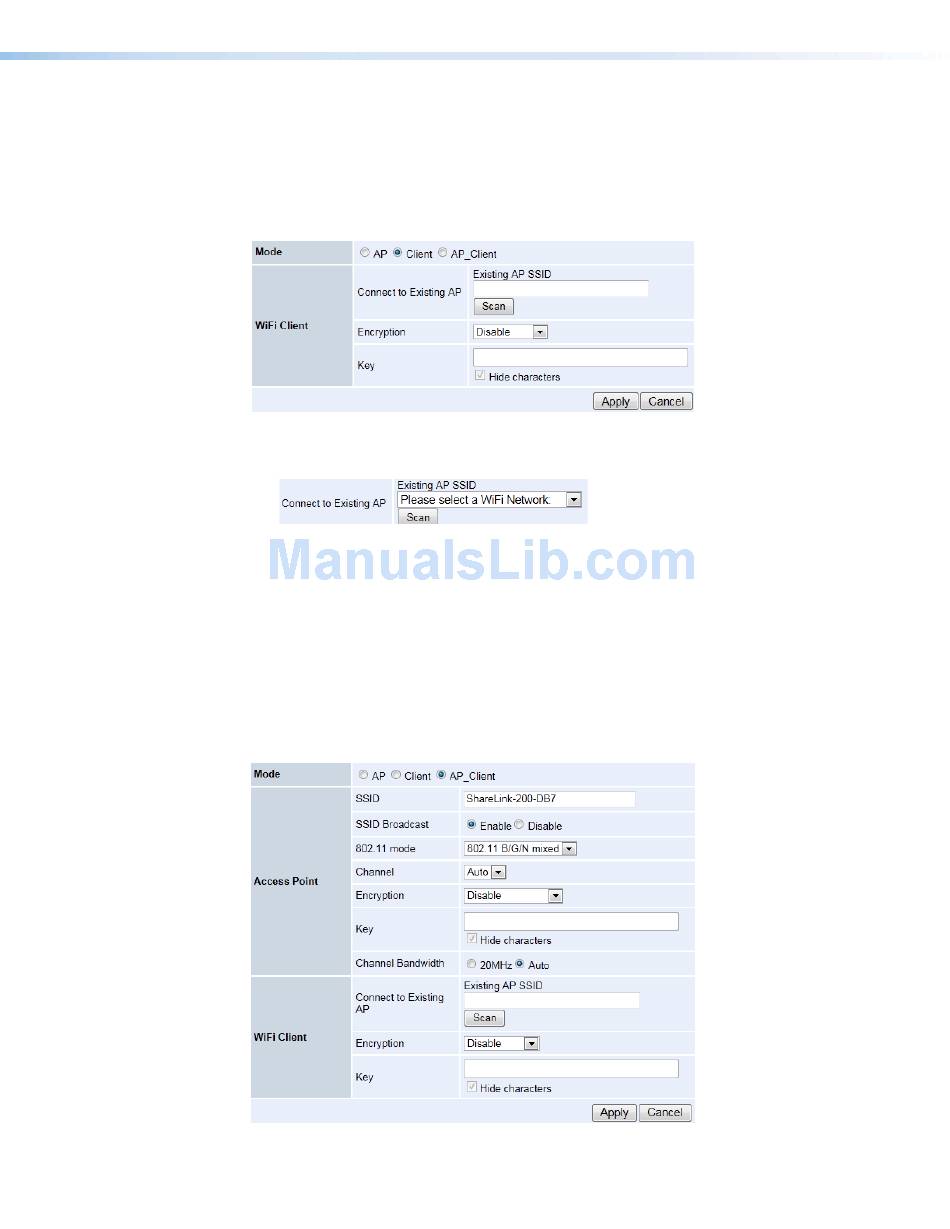

Figure 37. Client Mode
• Connect to Existing AP: Click Scan to search for available Wi-Fi networks. When
scanning is complete, a drop-down menu with available Wi-Fi networks appears
Select the desired Wi-Fi network from the drop-down menu.
Encryption: If the access point that you are trying to connect to has encryption
•
enabled, you must select the encryption type from the drop-down menu and enter the
network security key in Key section (below).
• Key: After selecting an encryption protocol, enter the network security key.
AP/Client mode
In AP/Client mode, the ShareLink 200 acts as both an access point (appearing as a WAP
on user devices) and a client (connected to an existing access point). This allows users to
connect to the ShareLink directly through its internal wireless AP, or through the existing AP.
When AP/Client mode is enabled, the Access Point panel and Wi-Fi Client panel are shown:
Figure 38. AP/Client Mode
