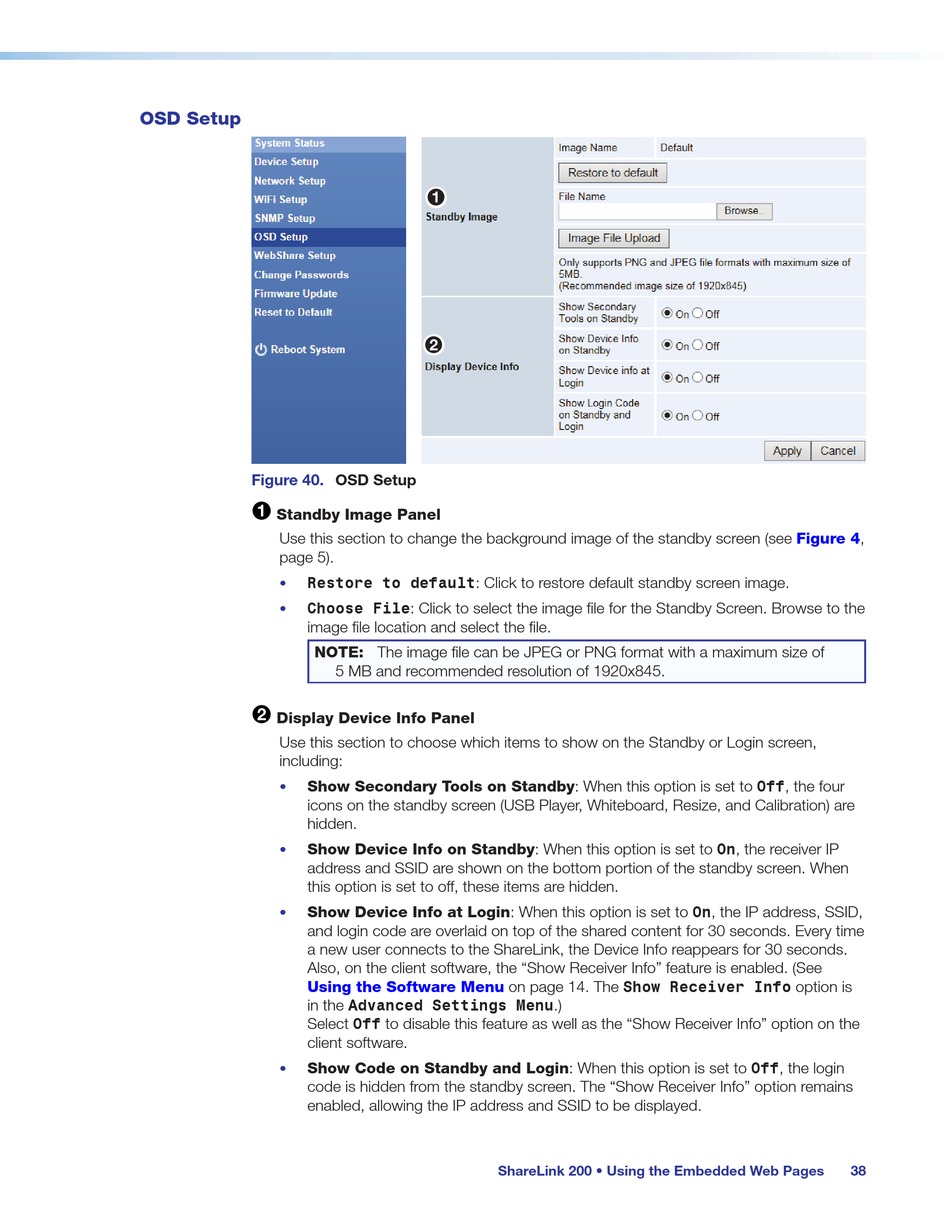

OSD Setup

Figure 40.
1
Standby Image Panel
Use this section to change the background image of the standby screen (see
page 5).
Restore to default: Click to restore default standby screen image.
•
Choose File: Click to select the image file for the Standby Screen. Browse to the
•
image file location and select the file.
NOTE: The image file can be JPEG or PNG format with a maximum size of
2
Display Device Info Panel
Use this section to choose which items to show on the Standby or Login screen,
including:
Show Secondary Tools on Standby: When this option is set to Off, the four
•
icons on the standby screen (USB Player, Whiteboard, Resize, and Calibration) are
hidden.
Show Device Info on Standby: When this option is set to On, the receiver IP
•
address and SSID are shown on the bottom portion of the standby screen. When
this option is set to off, these items are hidden.
Show Device Info at Login: When this option is set to On, the IP address, SSID,
•
and login code are overlaid on top of the shared content for 30 seconds. Every time
a new user connects to the ShareLink, the Device Info reappears for 30 seconds.
Also, on the client software, the "Show Receiver Info" feature is enabled. (See
Using the Software Menu
in the Advanced Settings Menu.)
Select Off to disable this feature as well as the "Show Receiver Info" option on the
client software.
Show Code on Standby and Login: When this option is set to Off, the login
•
code is hidden from the standby screen. The "Show Receiver Info" option remains
enabled, allowing the IP address and SSID to be displayed.
1 1
2 2
OSD Setup
5 MB and recommended resolution of 1920x845.
on page 14. The Show Receiver Info option is
ShareLink 200 • Using the Embedded Web Pages
