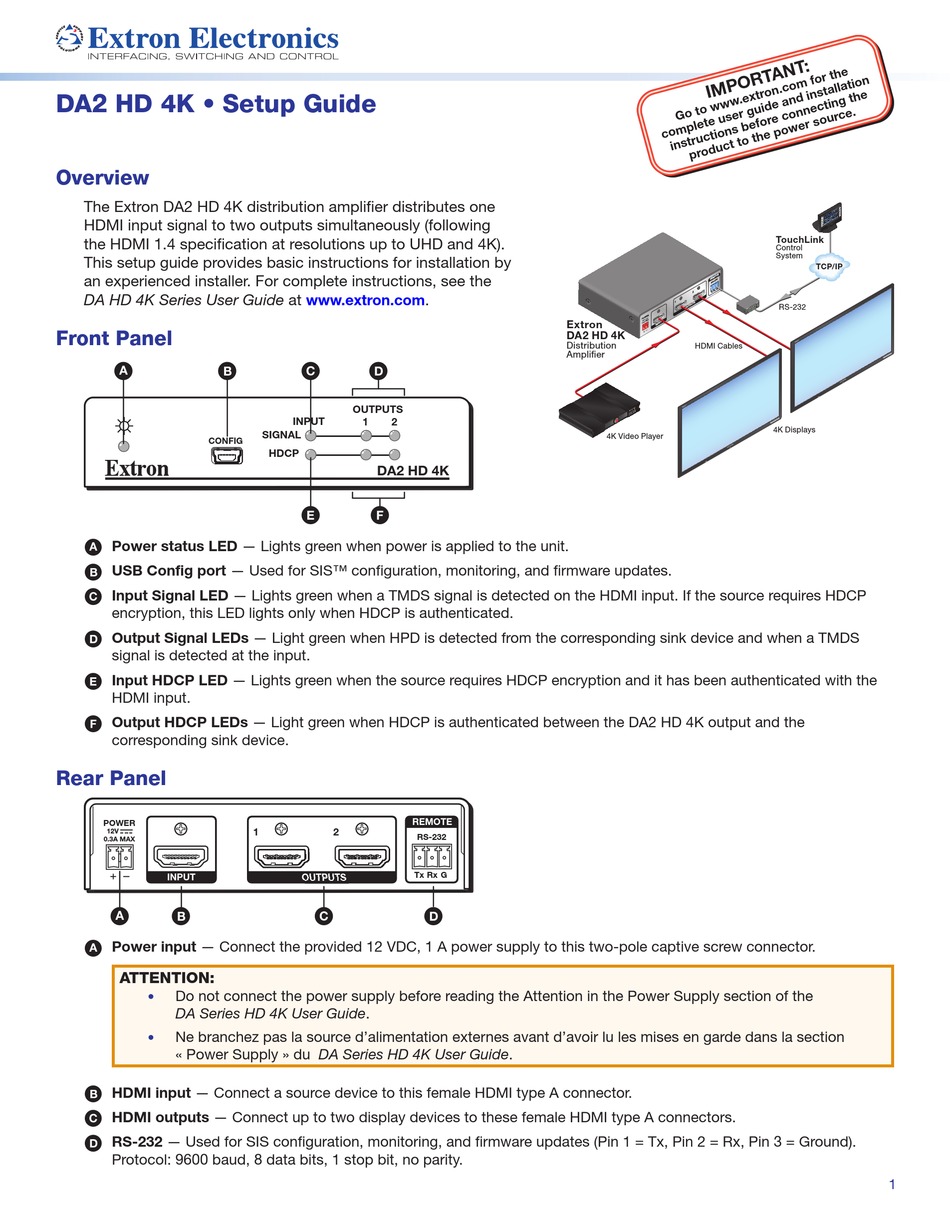

DA2 HD 4K • Setup Guide

Overview

The Extron DA2 HD 4K distribution amplifier distributes one
HDMI input signal to two outputs simultaneously (following
the HDMI 1.4 specification at resolutions up to UHD and 4K).
This setup guide provides basic instructions for installation by
an experienced installer. For complete instructions, see the
DA HD 4K Series User Guide at

Front Panel

A A B B
CONFIG
CONFIG
Power status LED — Lights green when power is applied to the unit.
A
USB Config port — Used for SIS™ configuration, monitoring, and firmware updates.
B
Input Signal LED — Lights green when a TMDS signal is detected on the HDMI input. If the source requires HDCP
C
encryption, this LED lights only when HDCP is authenticated.
Output Signal LEDs — Light green when HPD is detected from the corresponding sink device and when a TMDS
D
signal is detected at the input.
Input HDCP LED — Lights green when the source requires HDCP encryption and it has been authenticated with the
E
HDMI input.
Output HDCP LEDs — Light green when HDCP is authenticated between the DA2 HD 4K output and the
F
corresponding sink device.

Rear Panel

POWER
POWER
12V
12V
0.3A MAX
0.3A MAX
INPUT
INPUT
A A B B
Power input — Connect the provided 12 VDC, 1 A power supply to this two-pole captive screw connector.
A
ATTENTION:
Do not connect the power supply before reading the Attention in the Power Supply section of the
•
DA Series HD 4K User Guide.
Ne branchez pas la source d'alimentation externes avant d'avoir lu les mises en garde dans la section
•
« Power Supply » du DA Series HD 4K User Guide.
HDMI input — Connect a source device to this female HDMI type A connector.
B
HDMI outputs — Connect up to two display devices to these female HDMI type A connectors.
C
RS-232 — Used for SIS configuration, monitoring, and firmware updates (Pin 1 = Tx, Pin 2 = Rx, Pin 3 = Ground).
D
Protocol: 9600 baud, 8 data bits, 1 stop bit, no parity.
.
www.extron.com
C C D D
OUTPUTS
OUTPUTS
INPUT
1 2
INPUT
1 2
SIGNAL
SIGNAL
HDCP
HDCP
DA2 HD 4K
DA2 HD 4K
E E F F
REMOTE
REMOTE
1 2
1 2
RS-232
RS-232
Tx Rx G
OUTPUTS
Tx Rx G
C C D D
T E
M O
R E
2
-2 3
R S
G
R x
2 T x
1 S
U T
T P
O U
R
W E
P O
Extron
V M A X
12 T
0. 4A P U
IN
DA2 HD 4K
Distribution
HDMI Cables
Ampli er
L 80
DE
MO
STAT US
PLAY
ER
POW
USB
SD CARD
4K Video Player
VCR
DVD
DOC
CAM
P
LAPTO
PC
ON
OFF
DISPL AY
N MUTE
SCREE UP
N
SCREE DOWN
TouchLink
Control
System
TCP/IP
® RS-232
100
RELAY LINK
INPUT 1 3 ACT
IR 1 3 4
RX COM 3 1 4 2
IPL 250 1 TX 4 2
R 2 2
3
L 80
DE
MO
4K Displays
1
