Reference
Information

Mounting

Wall Mounting

Follow these steps to mount the ShareLink 200 on a wall using the included wall mount kit:
1.
2.
3.
Secure the bracket to the wall using the four supplied bracket screws. Be sure to install
the bracket with the large keyhole facing upward as shown below.
Tighten the two small mounting screws on the bottom panel of the ShareLink 200 as
shown below.
Insert the screwheads into the wall mount bracket. Ensure that the ShareLink 200
receiver sits securely on the bracket.
T
S E
R E

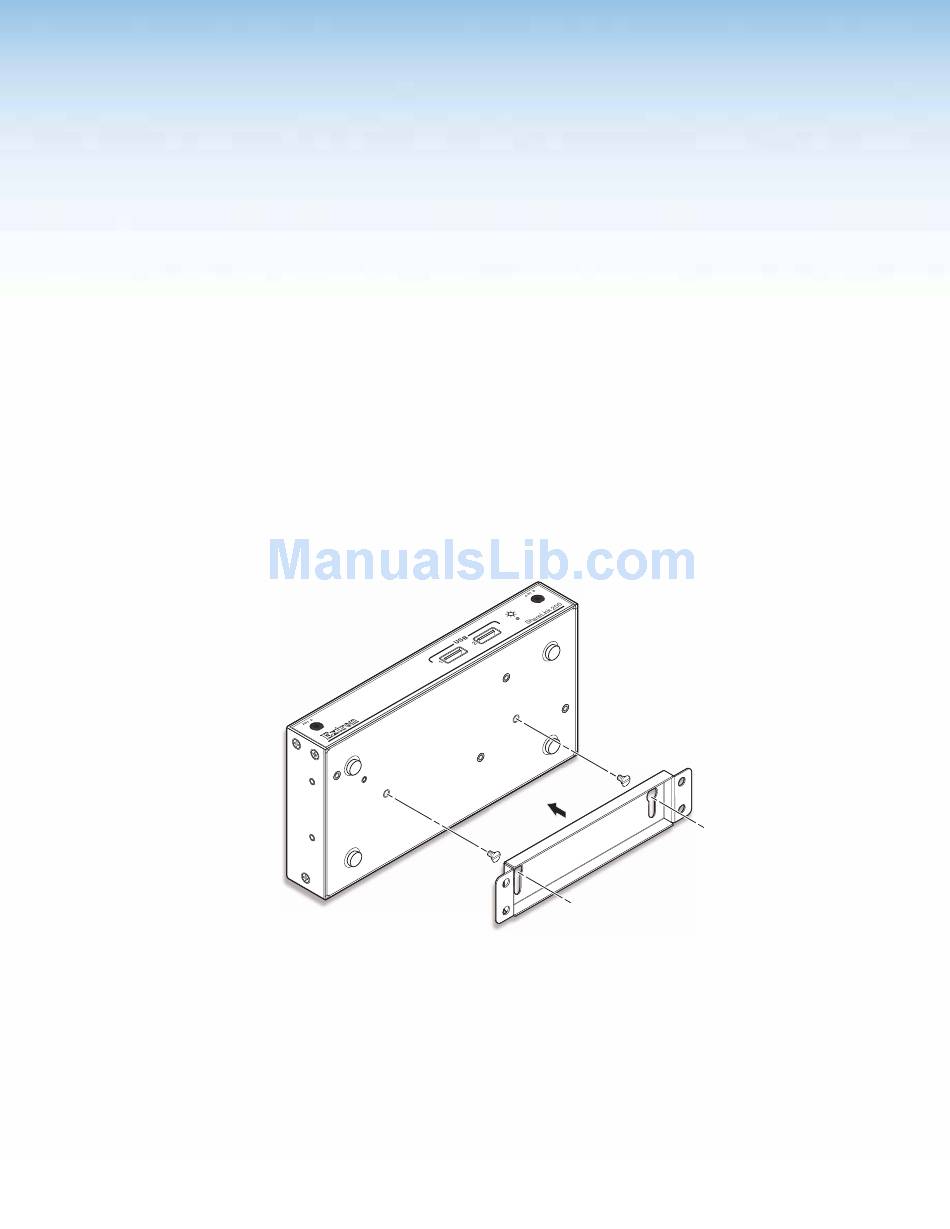

Figure 46. ShareLink 200 Wall Mount Kit
ShareLink 200 • Reference Information 43
