Device Setup

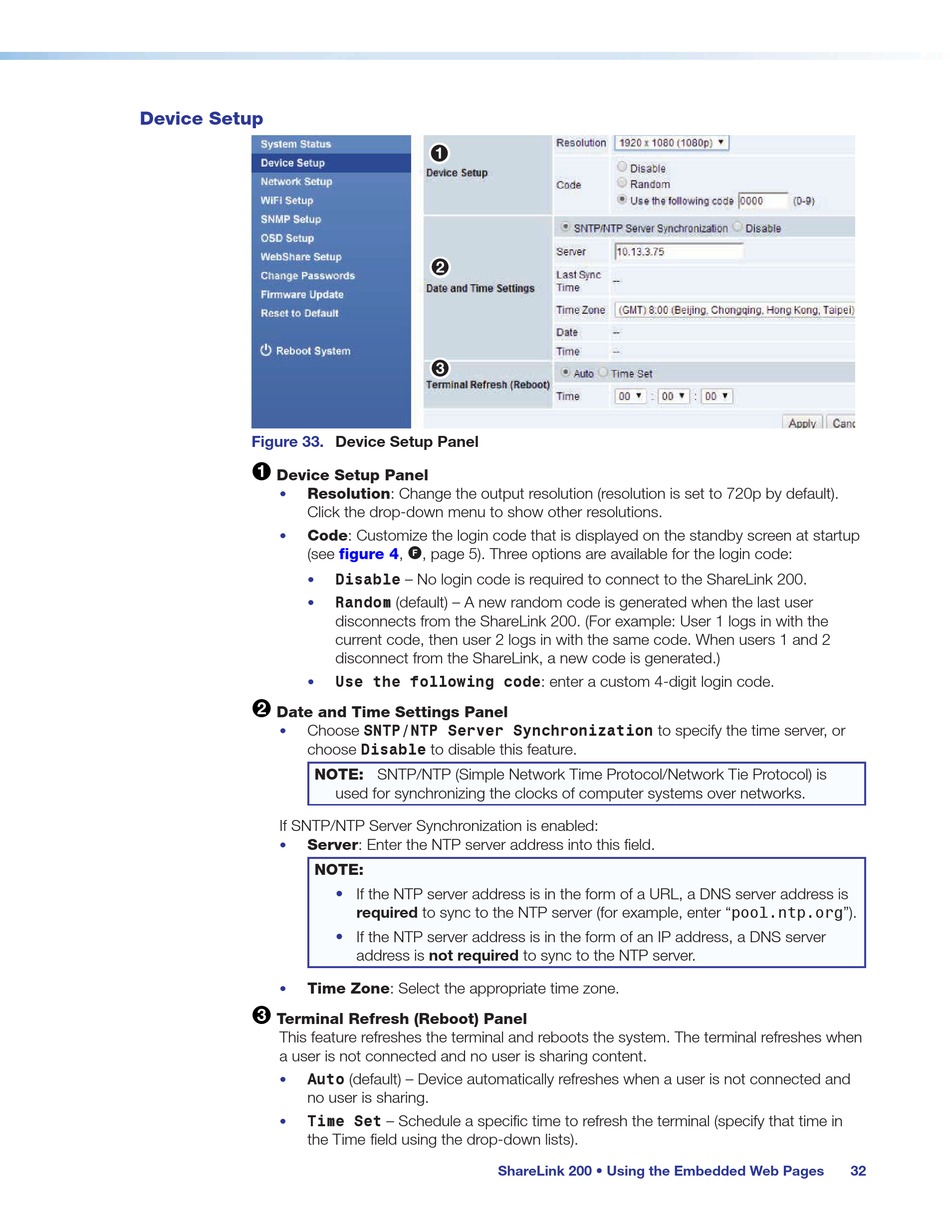

Figure 33.
1
Device Setup Panel
Resolution: Change the output resolution (resolution is set to 720p by default).
•
Click the drop-down menu to show other resolutions.
Code: Customize the login code that is displayed on the standby screen at startup
•
(see
•
•
•
2
Date and Time Settings Panel
Choose SNTP/NTP Server Synchronization to specify the time server, or
•
choose Disable to disable this feature.
NOTE: SNTP/NTP (Simple Network Time Protocol/Network Tie Protocol) is
If SNTP/NTP Server Synchronization is enabled:
Server: Enter the NTP server address into this field.
•
NOTE:
Time Zone: Select the appropriate time zone.
•
3
Terminal Refresh (Reboot) Panel
This feature refreshes the terminal and reboots the system. The terminal refreshes when
a user is not connected and no user is sharing content.
Auto (default) – Device automatically refreshes when a user is not connected and
•
no user is sharing.
Time Set – Schedule a specific time to refresh the terminal (specify that time in
•
the Time field using the drop-down lists).
1 1
2 2
3 3
Device Setup Panel
figure 4, F, page 5). Three options are available for the login code:
Disable – No login code is required to connect to the ShareLink 200.
Random (default) – A new random code is generated when the last user
disconnects from the ShareLink 200. (For example: User 1 logs in with the
current code, then user 2 logs in with the same code. When users 1 and 2
disconnect from the ShareLink, a new code is generated.)
Use the following code: enter a custom 4-digit login code.
used for synchronizing the clocks of computer systems over networks.
• If the NTP server address is in the form of a URL, a DNS server address is
required to sync to the NTP server (for example, enter "pool.ntp.org").
• If the NTP server address is in the form of an IP address, a DNS server
address is not required to sync to the NTP server.
ShareLink 200 • Using the Embedded Web Pages 32
