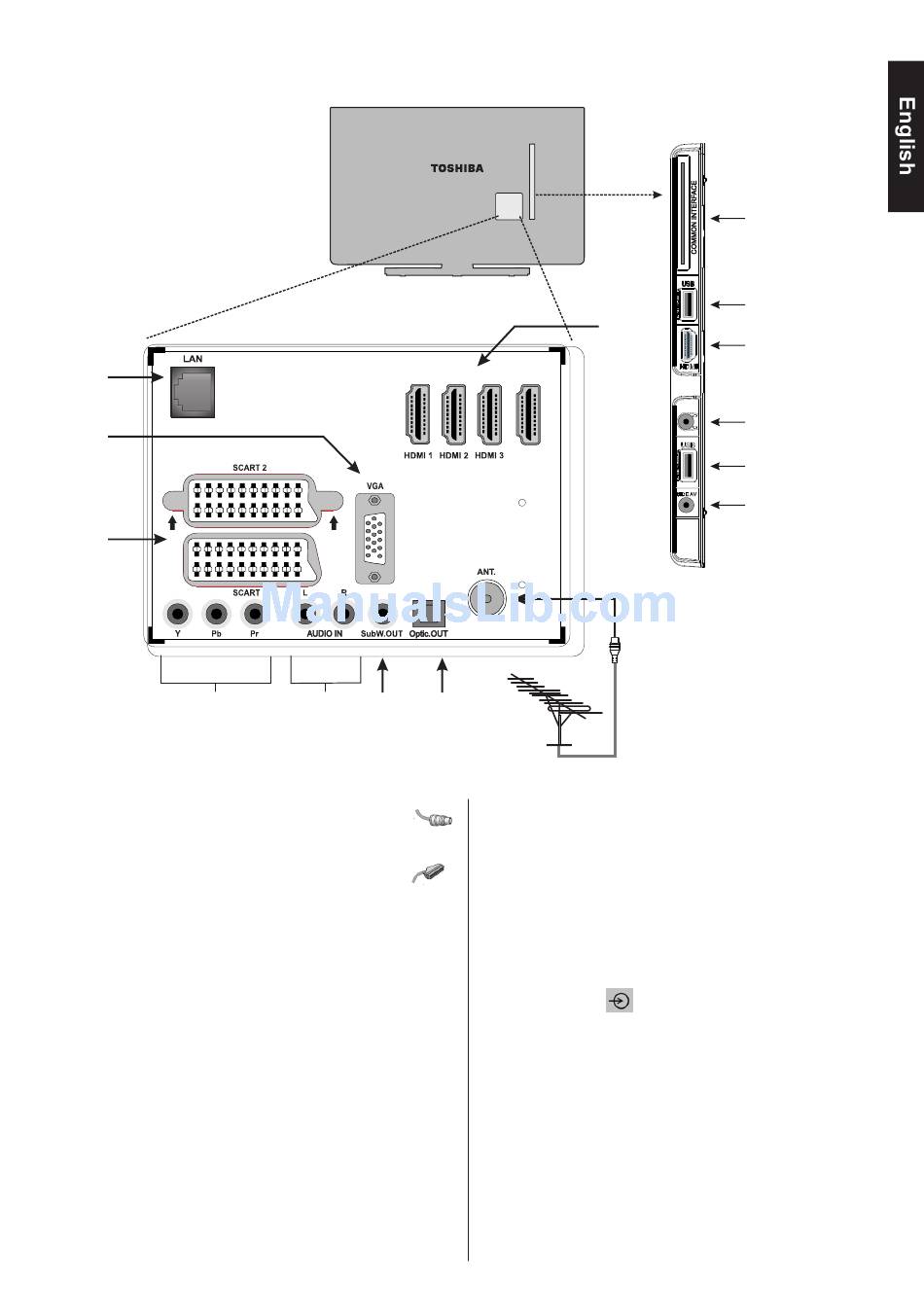

Before connecting any external equipment, remove the mains plug from the wall socket.
LAN Input
RGB/PC
Input
SCART
Sockets
YPbPr Video Inputs
(*) Number of these inputs may change according to the model of your TV.
Aerial cable:................................................................
Connect the aerial to the ANT. socket on the rear of the TV.
SCART lead:..............................................................
If you use a decoder* or a media recorder, it is essential
that the scart cable is connected to the TV.
Before running first time installation, any connected devices
need to be set to standby mode.
The DIGITAL AUDIO socket enables the connection of a
suitable surround sound system.
HDMI
(High-Definition Multimedia Interface) is for using
®
with a DVD decoder or other equipment with digital audio and
video output. It is designed for best performance with 1080i
and 1080p high-definition video signals but will also accept
and display VGA, 480i, 480p, 576i, 576p and 720p signals.
PC format signals will also be displayed.
Note: Although this TV is able to connect to HDMI equipment,
it is possible that some equipment may not operate correctly.
When connecting a device via the Side AV input, you must
use the supplied connection cable to enable connection.
When connecting a device via YPbPr input, you must use a
proper connection cable(not supplied) to enable connection.

Connecting External Equipment

Audio Inputs Subwoofer
Out
Socket (optical)
HDMI 4
Digital Audio
LAN Input is used to connect the TV to your home network.
You can use Subwoofer Out for connecting an external, active
subwoofer to the set to give a much deeper bass effect.
A wide variety of external equipment can be connected to the
TV; therefore, the relevant owner's manuals for all additional
equipment must be referred to for exact instructions.
If the TV automatically switches over to monitor external
equipment, return to normal TV by pressing the desired
programme position button. To recall external equipment,
press "SOURCE -
sources.
Regardless of source's property, audio output from the
DIGITAL AUDIO socket cannot be copied.
English - 9 -
Side View
COMMON INTERFACE
The Common Interface is
for a Conditional Access
Module (CAM).
USB Input (*)
HDMI Input
Sockets (*)
Side HDMI Input (*)
Headphone
USB Input (*)
SIDE AV
Aerial
Input
" button repeatedly to switch between
