Connecting an HDMI
The HDMI inputs on your TV receive digital audio and
uncompressed digital video from an HDMI source device
or uncompressed digital video from a DVI (Digital Visual
Interface) source device.
These inputs are designed to accept HDCP (High-Bandwidth
Digital-Content Protection) programme material in digital form
from EIA/CEA-861-D–compliant [1] consumer electronic
devices (such as a set-top box or DVD player with HDMI
or DVI output).
NOTE:
• Some early HDMI equipment may not work properly with
your latest HDMI TV.
• Supported Audio format: Linear PCM, sampling rate
32/44.1/48kHz.

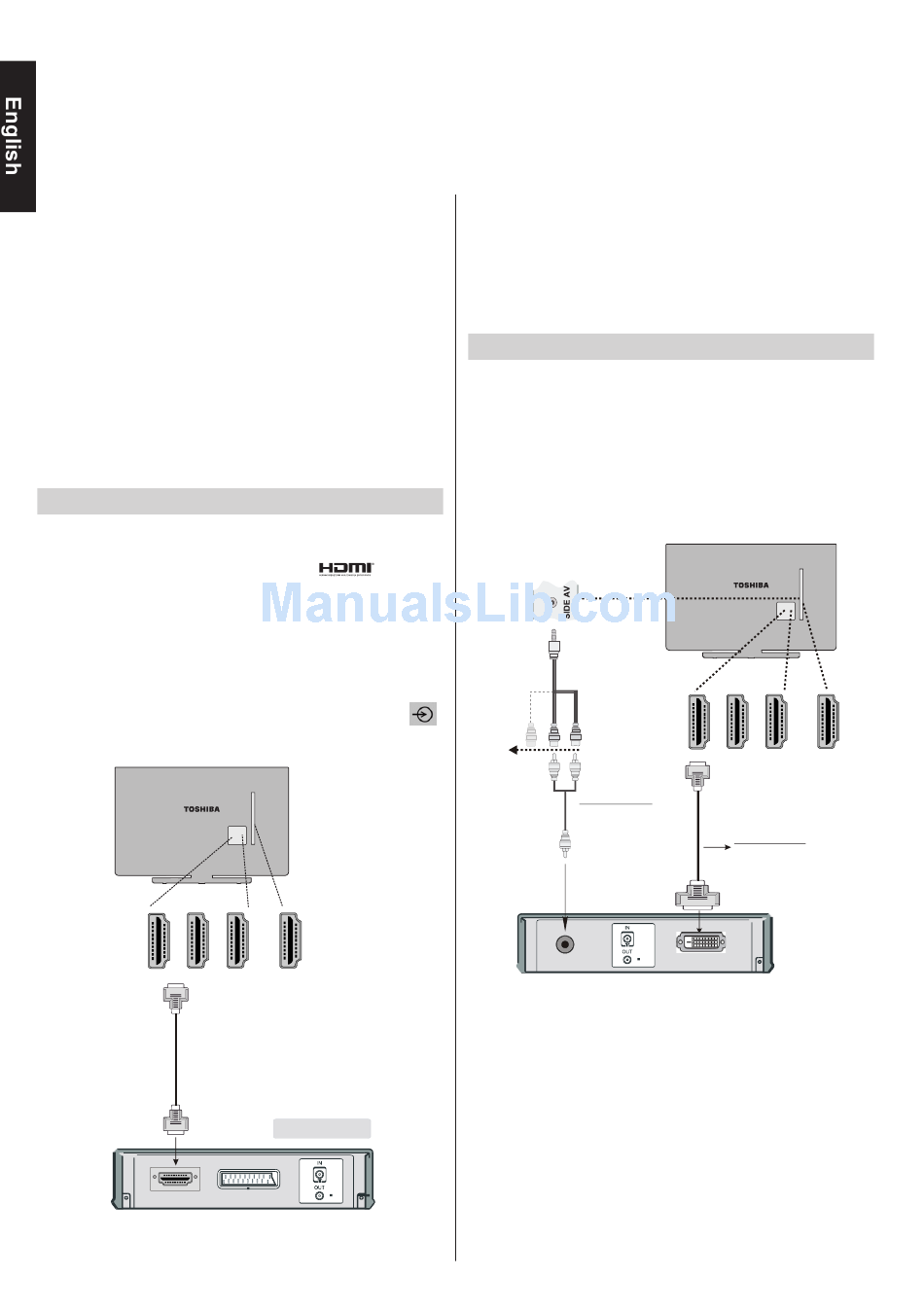

To Connect an HDMI Device

Connect an HDMI cable (type A connector) to the HDMI
terminal. For proper operation, it is recommended that you
use an HDMI cable with the HDMI Logo (
• If your HDMI connection is capable of 1080p and/or
your TV is capable of refresh rates greater than 50Hz, you
will need a Category 2 cable. Conventional HDMI/DVI cable
may not work properly with this mode.
• HDMI cable transfers both video and audio. Separate
analogue audio cables are not required (see illustration).
• To view the HDMI device video, press "SOURCE -
button to select the appropriate HDMI input.
* Number of
HDMI Input
Socket
(Back)
or DVI Device to the HDMI Input
®
).
these inputs
may change
according to
the model of
your TV.
HDMI device
CEC
CEC operation is available if a CEC device is present. This
feature is limited to Toshiba disc players that support CEC.
The CEC osd menu is accessed through the "QUICK" button
on the remote the osd CEC menu will only be displayed if a
CEC product is connected.

To Connect a DVI Device

Connect an HDMI-to-DVI cable (HDMI type A connector) to the
HDMI input socket and audio cables to the RED and WHITE
SIDE AV AUDIO inputs on the Audio/Video connection cable
supplied (see illustration).
• The maximum recommended HDMI-to-DVI cable length
is 6.6 ft (2m).
• An HDMI-to-DVI cable transfers video only. Separate
analogue audio cables are required.
SIDE AV Input
Side Audio/Video
Connection Cable
"
Match
Colours
NOTE:
To ensure that the HDMI or DVI device is reset properly, it is
recommended that you follow these procedures:
• When turning on your electronic components, turn on the
TV first, and then the HDMI or DVI device.
• When turning off your electronic components, turn off the
HDMI or DVI device first, and then the TV.
English - 10 -
(supplied)
HDMI Input
Sockets
* Number of these
inputs may change
according to the
Audio Transfer
Audio Cable
model of your TV.
(not supplied)
Video Transfer
HDMI to DVI Cable
(not supplied)
