Solid State Logic SL 9000 J Series Operator's Manual page 16

PAN
trim
C
abs

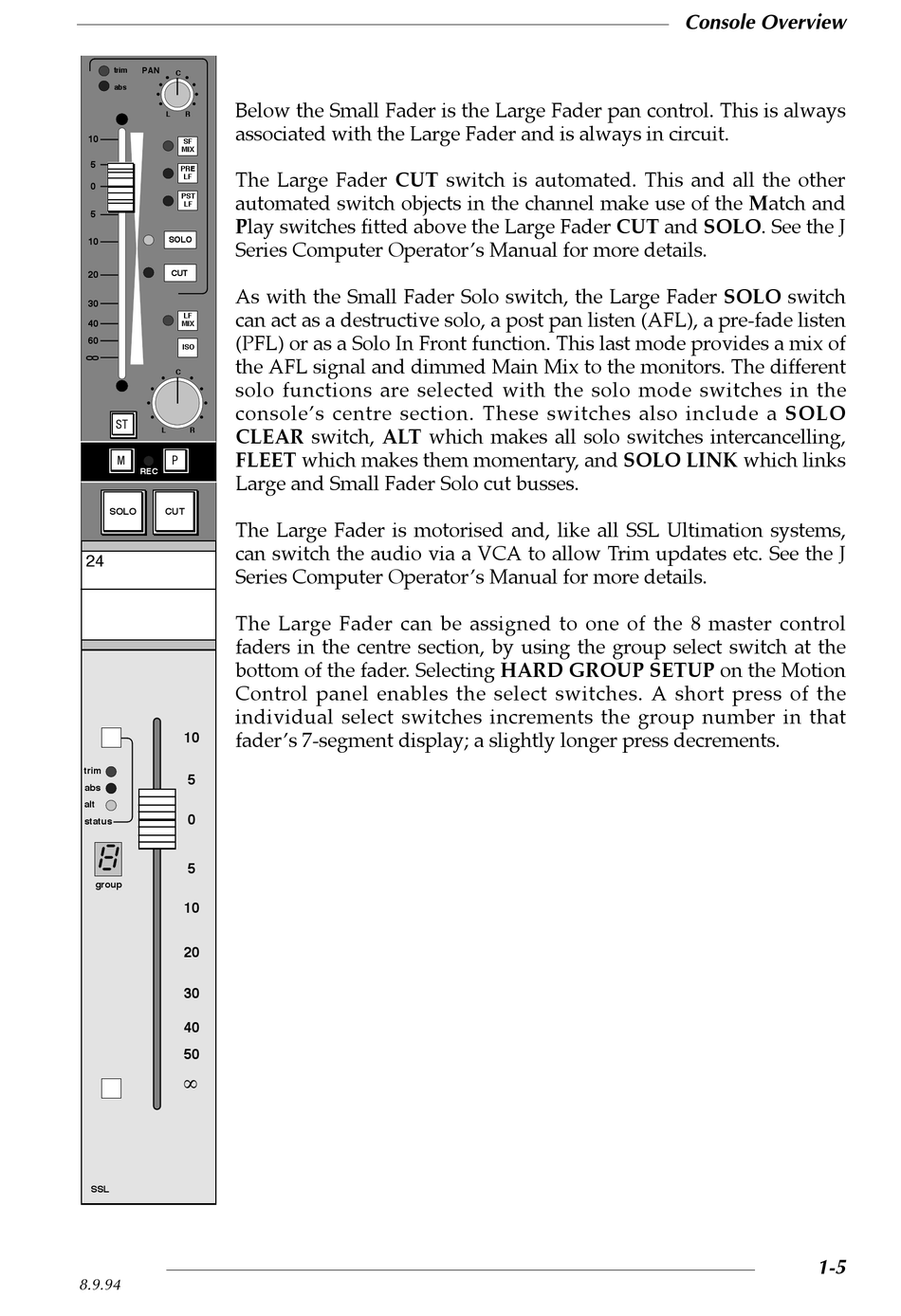

Below the Small Fader is the Large Fader pan control. This is always
L R
associated with the Large Fader and is always in circuit.
10
SF
MIX
5
PRE
The Large Fader CUT switch is automated. This and all the other
LF
0
PST
automated switch objects in the channel make use of the Match and
LF
5
Play switches fitted above the Large Fader CUT and SOLO. See the J
SOLO
10
Series Computer Operator's Manual for more details.
CUT
20
As with the Small Fader Solo switch, the Large Fader SOLO switch
30
can act as a destructive solo, a post pan listen (AFL), a pre-fade listen
LF
40
MIX
(PFL) or as a Solo In Front function. This last mode provides a mix of
60
ISO
the AFL signal and dimmed Main Mix to the monitors. The different
C
solo functions are selected with the solo mode switches in the
console's centre section. These switches also include a SOLO
ST
L R CLEAR switch, ALT which makes all solo switches intercancelling,
FLEET which makes them momentary, and SOLO LINK which links
M P
REC
Large and Small Fader Solo cut busses.
SOLO CUT
The Large Fader is motorised and, like all SSL Ultimation systems,
can switch the audio via a VCA to allow Trim updates etc. See the J
24
Series Computer Operator's Manual for more details.
The Large Fader can be assigned to one of the 8 master control
SL978
faders in the centre section, by using the group select switch at the
bottom of the fader. Selecting HARD GROUP SETUP on the Motion
Control panel enables the select switches. A short press of the
individual select switches increments the group number in that
fader's 7-segment display; a slightly longer press decrements.
10
trim
5
abs
alt
0
status
5
group
10
20
30
40
50
#
SSL
8.9.94
Console Overview
1-5
