Studio Loudspeakers and Foldback Sends

CUT
ST MIX
EXT 1
EXT 2
LEVEL
AFL
STUDIO LOUDSPEAKERS

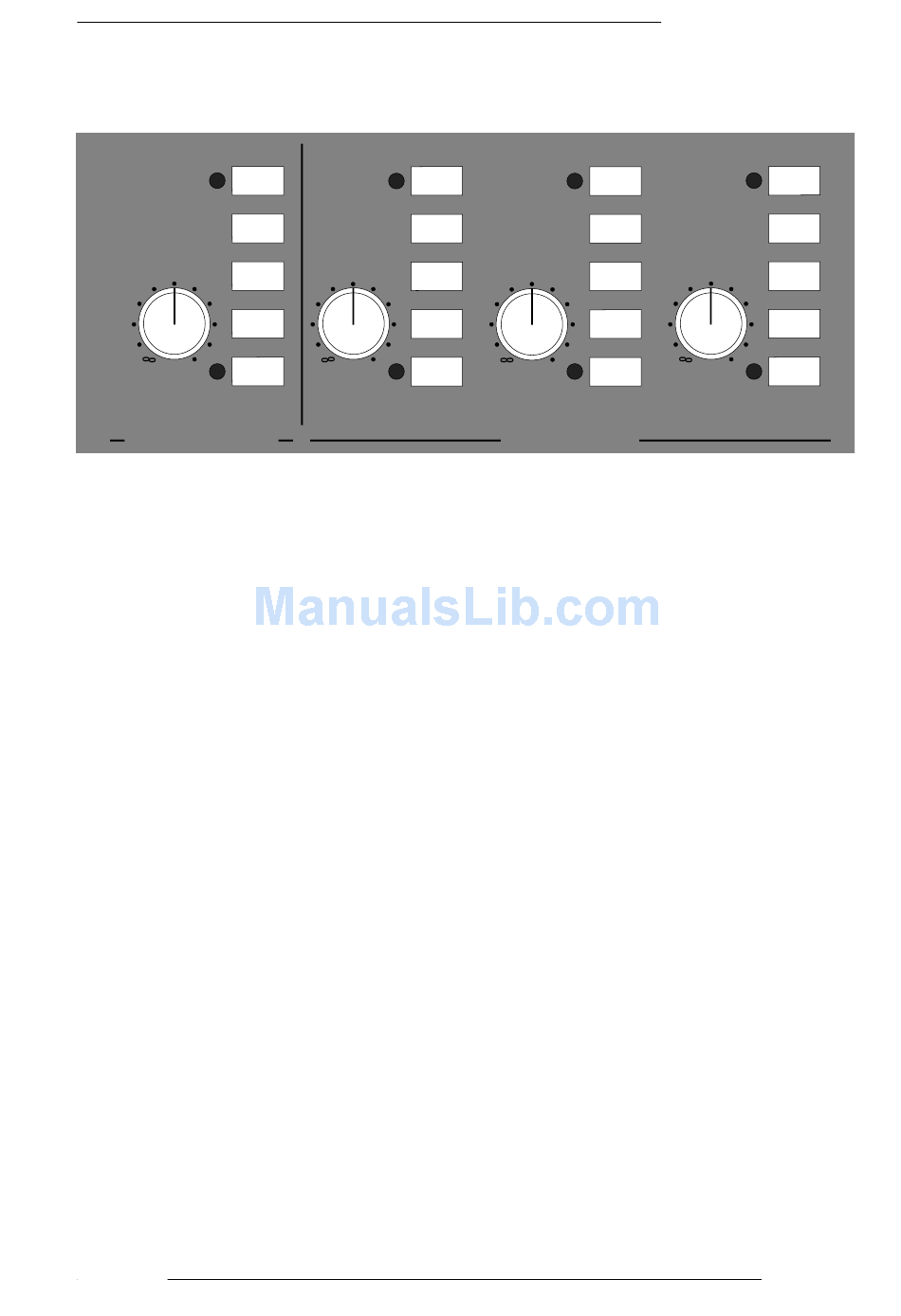

The console provides three stereo headphone outputs - FOLDBACK A, B and C plus a
stereo STUDIO LOUDSPEAKERS (SLS) output (see above).
Each output has dedicated LEVEL control, CUT, AFL and three source selector
switches. Sources can be selected separately or summed together by selecting one or
more of the switches.
The sources for the Foldback outputs are the two external source selectors (EXT 1 and
EXT 2) plus a stereo input from the patch bay. This input is usually normalled from
the Stereo Cue output, but individual consoles may be specified differently.
The sources for the SLS output are the two external source selectors (EXT 1 and EXT 2)
plus the Left and Right main outputs, pre-tone and talkback injection.
Note that the SLS feed is normally cut when the console is in RECORD status, to
prevent speaker howlround.
The Foldback outputs are cut whenever the Oscillator to BUSSES 1-48 switch is
selected.
22.12.94
CUE / FX SENDS
CUT
ST CUE
EXT 1
EXT 2
LEVEL
AFL
F/B A
CUT
ST CUE
EXT 1
EXT 2
LEVEL
AFL
F/B B
STUDIO HEADPHONES
The Centre Section
CUT
ST CUE
EXT 1
EXT 2
LEVEL
AFL
F/B C
