SL 9000 J Console Operator's Manual

Stereo Echo Returns

V FB A
FB B
STUDIO
FB C
MONO FULL
WIDTH
C
L R
BALANCE
MONO
CUT
+6
AFL

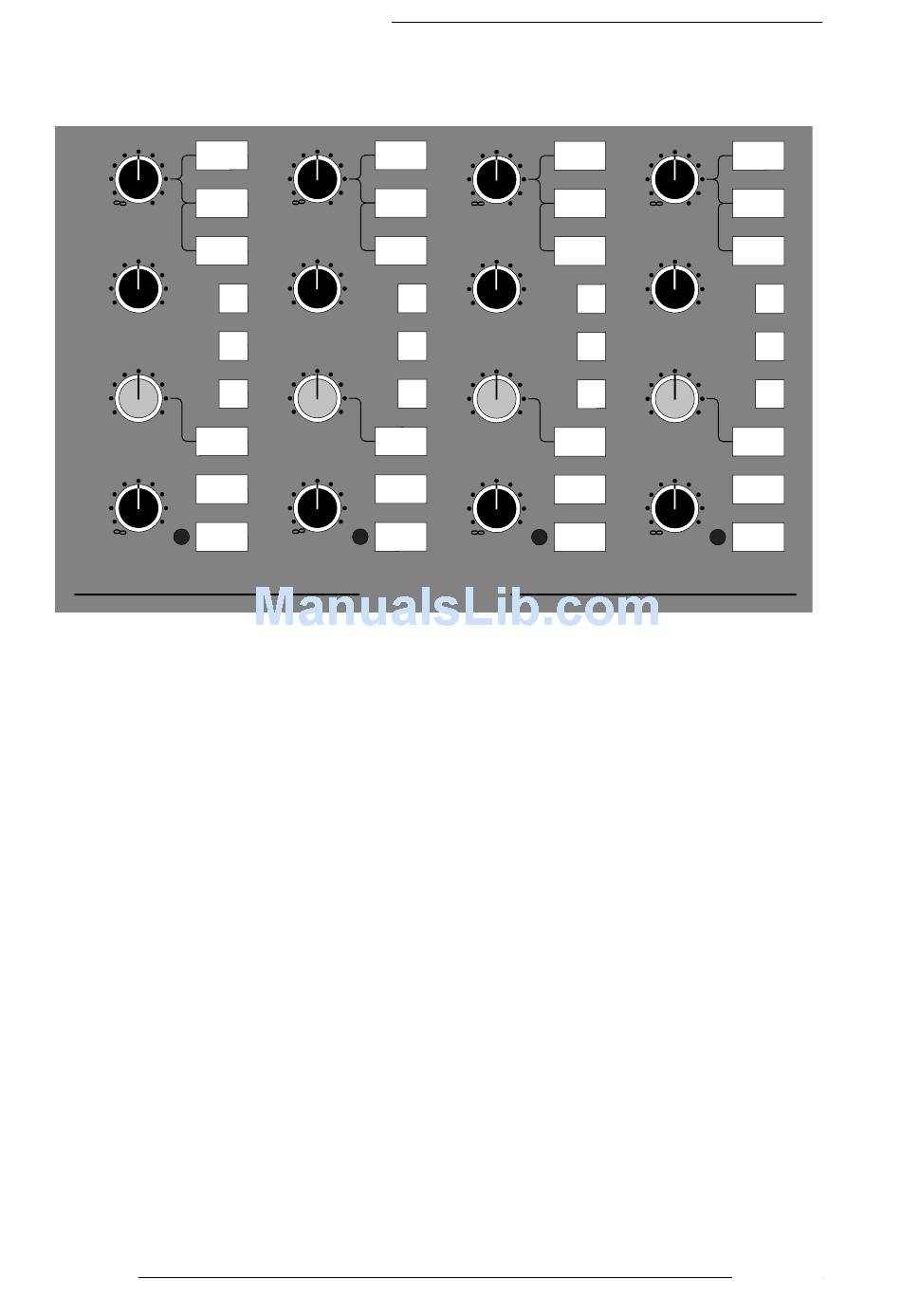

STEREO RETURN 1
The four stereo Echo Returns are designed to be driven by the outputs of devices
which have been fed from the corresponding mono FX busses described on Page 5-12.
STUDIO – The STUDIO level control and its three associated routing switches (FB
A-C) allow Echo Return signals to be mixed with the three Foldback outputs.
WIDTH – Controls the stereo width of the return. Can be adjusted from full stereo to
mono.
L/R, C, S – These switches route the Echo Return signals to the Main mix busses. Echo
Return signals to Left and Right busses are fed in stereo. The Centre and Surround
busses are fed by a mono sum of the left and right Echo Return signals. The rotary
level controls at the foot of this section set levels to the Main mix busses.
MONO – When this switch is up, the BALANCE control will provide a balance
between the left and right return signals. When MONO is selected, the Echo Return
inputs are summed in mono, and the BALANCE control now acts as a pan control.
This is very useful when you are using a mono FX device, as it saves having to parallel
the Echo Return inputs on the patch.
CUT – Cuts both Left and Right inputs.
AFL – Feeds Echo Return signals (post pan control) to the AFL bus, and switches the
bus output to the main monitors via the AFL level control.
5-14
FB A
FB B
STUDIO
FB C
L/R
MONO FULL
WIDTH
C
C
S
L R
BALANCE
MONO
CUT
+6
AFL
STEREO RETURN 2
STEREO ECHO RETURNS
FB A
FB B
STUDIO
FB C
L/R
MONO FULL
WIDTH
C
C
S
L R
BALANCE
MONO
CUT
+6
AFL
STEREO RETURN 3
FB A
FB B
STUDIO
FB C
L/R
MONO FULL
WIDTH
C
C
S
L R
BALANCE
MONO
CUT
+6
AFL
STEREO RETURN 4
L/R
C
S
22.12.94
