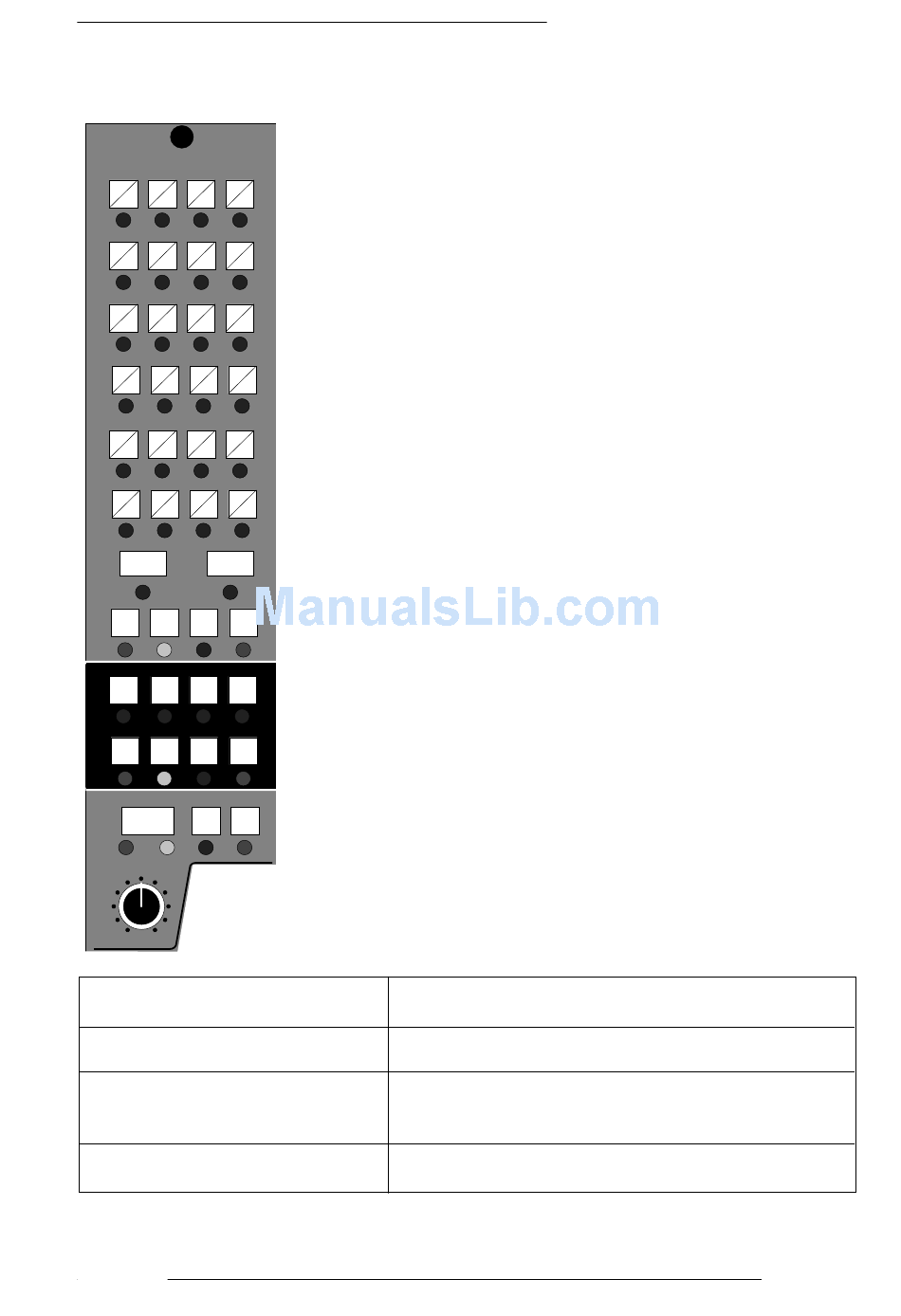

SL911
1 2 3 4
25 26 27 28
5 6 7 8
29 30 31 32
9 10 11 12
33 34 35 36
13 14 15 16
37 38 39 40
17 18 19 20
41 42 43 44
21 22 23 24
45 46 47 48
1/24 25/48
EFX EFX
LF SF
ODD EV
STEREO SUB Gp
A B C D
EFX EFX
LF SF
ODD EV
GROUP
EFX EFX
FADER
ODD EV
BUS
SUB GP
FLIP
-30 0
dB
Status
RECORD/REPLAY
RECORD/REPLAY
+ SMALL FADER TO MON
MIX
8.9.94
4. Any of the auxiliary send controls can be used as an
additional send, via the 'EFX' system. See Auxiliary Sends on
Page 3-9 for further details.

Routing Bank Select Switches

These two switches determine whether the 24 routing
switches feed to busses 1-24 or 25-48, or both. If neither is
pressed the Routing Matrix switches above are inactive.

The Routing Source Select Switches

The source for the multitrack Routing Matrix is determined by
the four Source Select switches below the 48 bus routing
switches. These are LF, SF, EFX ODD and EFX EV(EN). LF
and SF are inter-cancelling, electronically latched, switches.
Pressing either one will toggle the source selection between
Small and Large Fader.
Selecting EFX ODD will feed any aux signal routed to EFX
ODD to both odd and even numbered busses. Selecting EFX
EV will feed any aux signal routed to EFX EV to both odd and
even numbered busses. Selecting both together will feed the
EFX ODD signal to odd numbered busses and the EFX EV
signal to even numbered busses. The EFX selections override
the LF and SF switches.
The table below shows default source selection for the Routing
Matrix according to console status. These selections can be
overridden locally at any time.
Channel Input via SMALL FADER
Channel Input via LARGE FADER
Monitor Input via SMALL FADER
The SL911 Input/Output Module
Routing Matrix fed from
3-21
