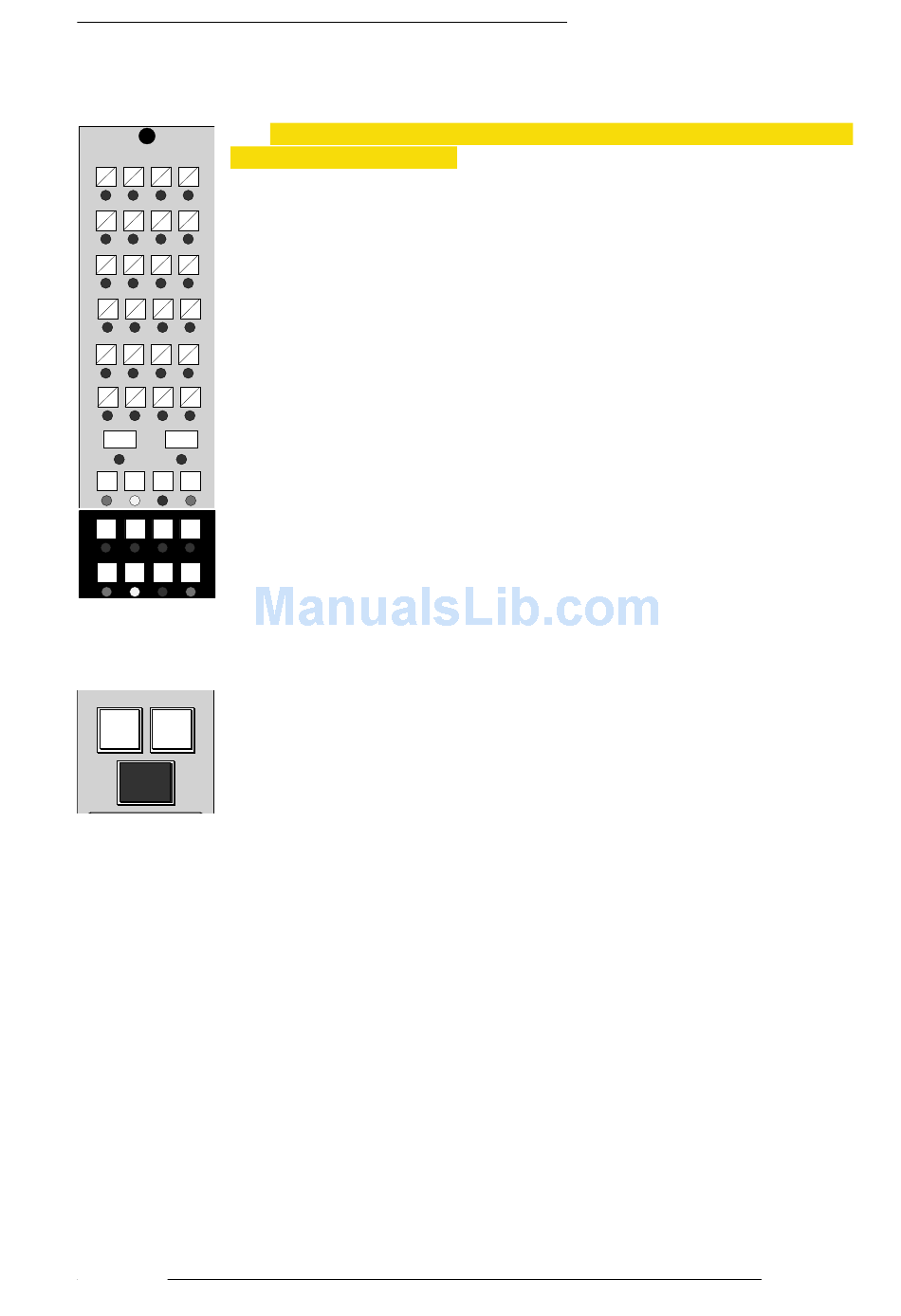

The Routing Matrix

The Routing Matrix provides access to 48 Multitrack busses and four
SL911
Stereo Subgroup busses. Bus selection is simple in operation, with
1 2 3 4
two buttons determining the Multitrack bus selection for tracks 1-24
25 26 27 28
or 25-48.
5 6 7 8
29 30 31 32
Sources for the Multitrack and Stereo Subgroup busses are
9 10 11 12
determined by the buttons beneath each section. Default selection of
33 34 35 36
Large or Small Fader sources for the Multitrack busses is made by the
13 14 15 16
37 38 39 40
master Status buttons on the SL952J but this can be overridden locally
as required (see later).
17 18 19 20
41 42 43 44
Source selections for the Stereo Subgroup busses are independent of
21 22 23 24
45 46 47 48
the master console status and may be chosen according to the job in
hand. See Page 2- 25 for a description of the EFX re-assign system.
1/24 25/48
EFX EFX
LF SF
ODD EV
STEREO SUB Gp
A B C D
EFX EFX
LF SF
ODD EV

The Monitor Input Section

The Monitor Input buttons enable two sources to be selected for the
monitor path. GROUP selects that module's Group Output, which
GROUP TAPE
also feeds the multitrack. TAPE selects the track output of the
multitrack machine. It is possible to select both of these buttons
24
together to get a mix of the two signals. You will find a more detailed
account of this in Section 3.
5.9.96
Basic Routing and Signal Flow
2-3
