SOLO CUT
24
SL978
10
trim
5
abs
alt
0
status
5
group
10
20
30
40
50
#
SSL
8.9.94

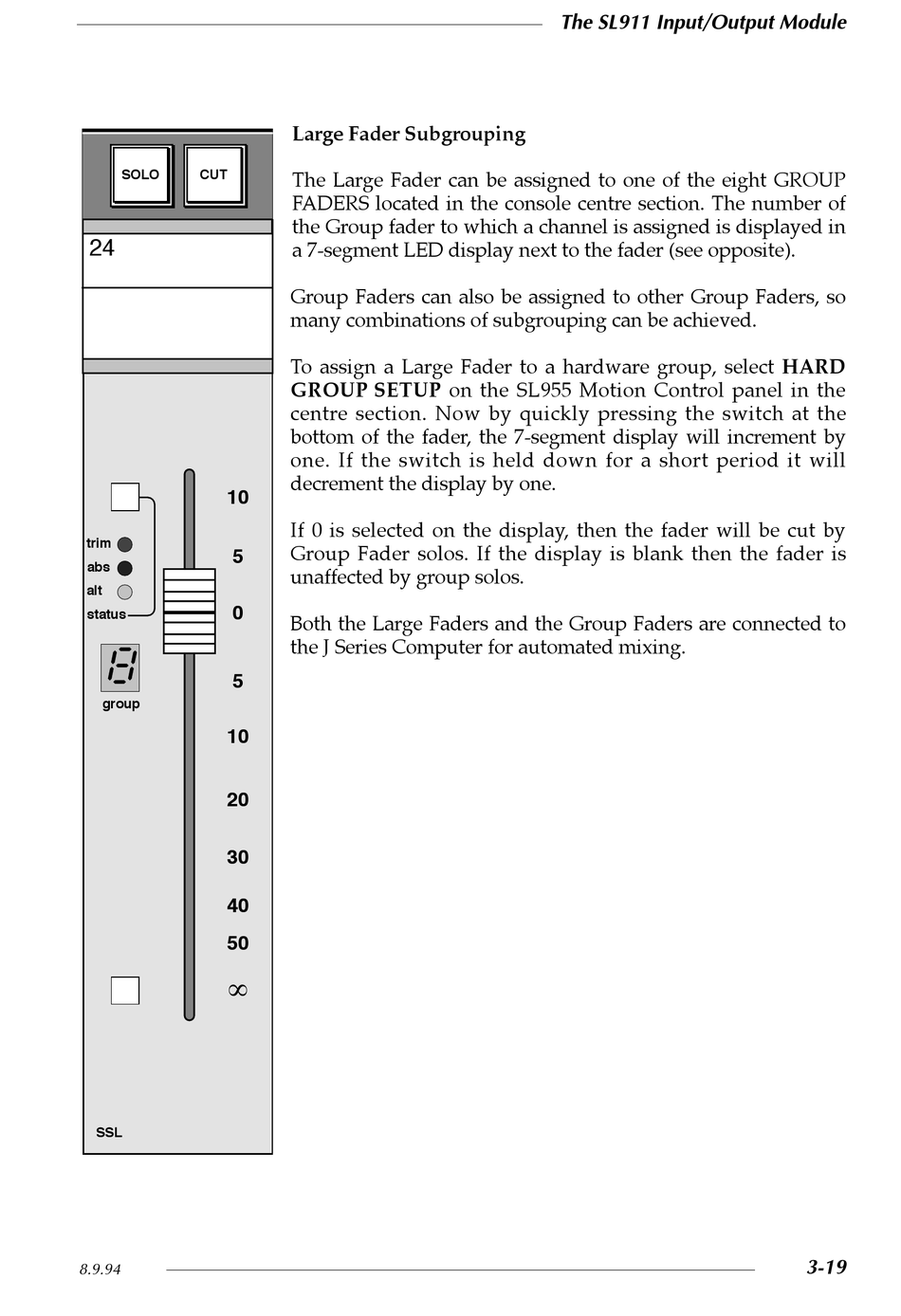

Large Fader Subgrouping

The Large Fader can be assigned to one of the eight GROUP
FADERS located in the console centre section. The number of
the Group fader to which a channel is assigned is displayed in
a 7-segment LED display next to the fader (see opposite).
Group Faders can also be assigned to other Group Faders, so
many combinations of subgrouping can be achieved.
To assign a Large Fader to a hardware group, select HARD
GROUP SETUP on the SL955 Motion Control panel in the
centre section. Now by quickly pressing the switch at the
bottom of the fader, the 7-segment display will increment by
one. If the switch is held down for a short period it will
decrement the display by one.
If 0 is selected on the display, then the fader will be cut by
Group Fader solos. If the display is blank then the fader is
unaffected by group solos.
Both the Large Faders and the Group Faders are connected to
the J Series Computer for automated mixing.
