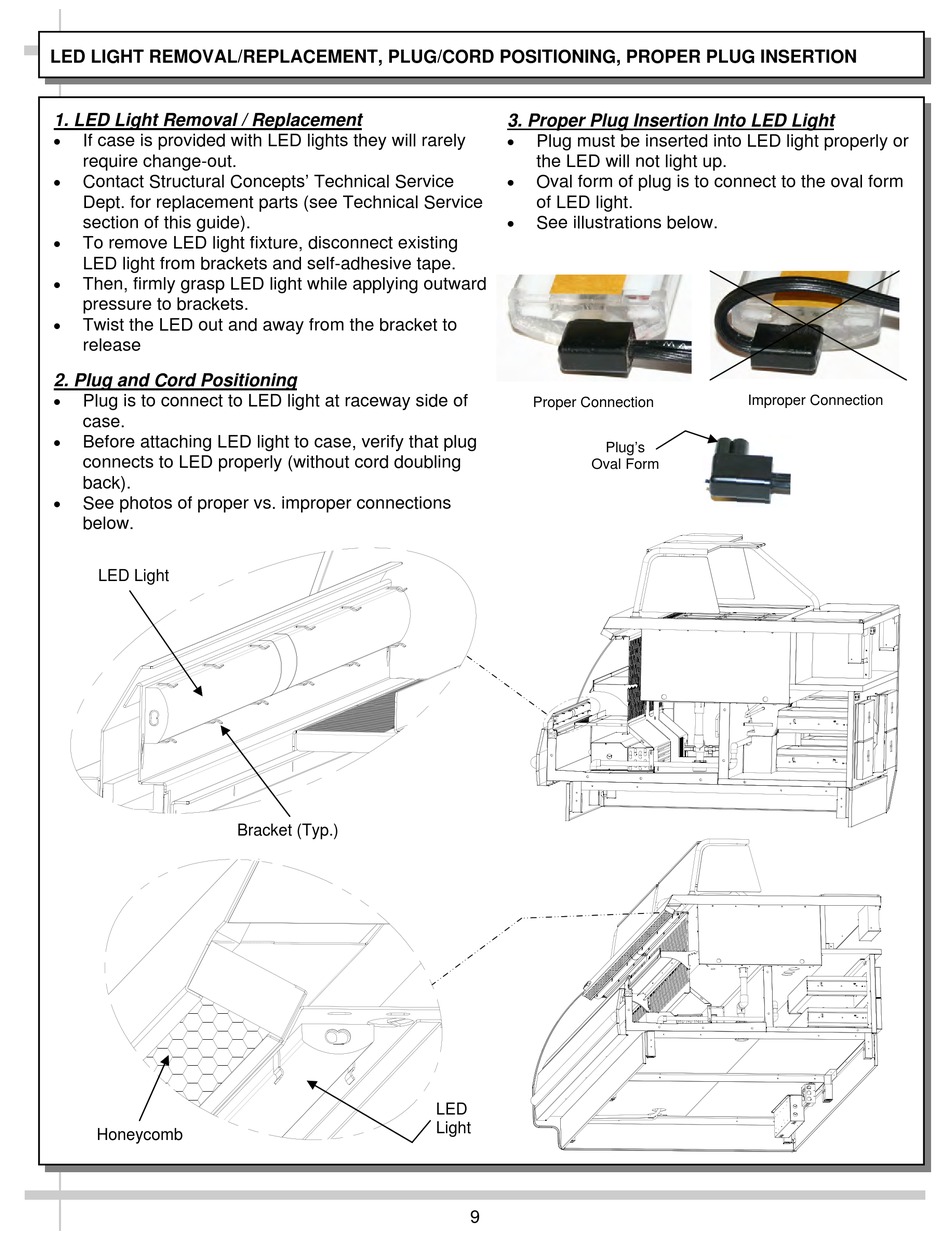

LED LIGHT REMOVAL/REPLACEMENT, PLUG/CORD POSITIONING, PROPER PLUG INSERTION

1. LED Light Removal / Replacement

If case is provided with LED lights they will rarely
require change-out.

Contact Structural Concepts' Technical Service
Dept. for replacement parts (see Technical Service
section of this guide).

To remove LED light fixture, disconnect existing
LED light from brackets and self-adhesive tape.

Then, firmly grasp LED light while applying outward
pressure to brackets.

Twist the LED out and away from the bracket to
release
2. Plug and Cord Positioning

Plug is to connect to LED light at raceway side of
case.

Before attaching LED light to case, verify that plug
connects to LED properly (without cord doubling
back).

See photos of proper vs. improper connections
below.
LED Light
Honeycomb
Bracket (Typ.)
3. Proper Plug Insertion Into LED Light

Plug must be inserted into LED light properly or
the LED will not light up.

Oval form of plug is to connect to the oval form
of LED light.

See illustrations below.
Proper Connection
Plug's
Oval Form
LED
Light
9
Improper Connection
