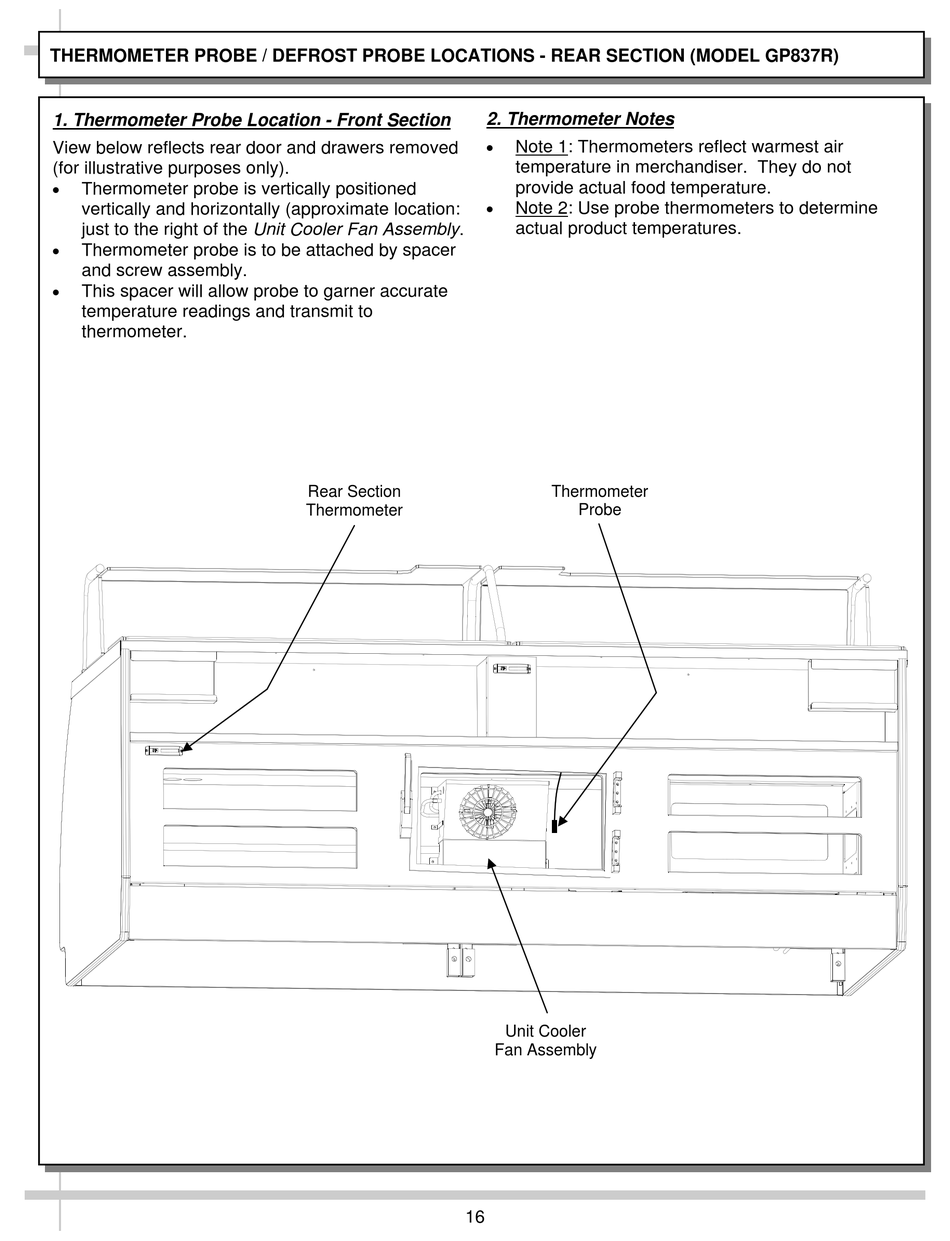

THERMOMETER PROBE / DEFROST PROBE LOCATIONS - REAR SECTION (MODEL GP837R)
1. Thermometer Probe Location - Front Section
View below reflects rear door and drawers removed
(for illustrative purposes only).
Thermometer probe is vertically positioned
vertically and horizontally (approximate location:
just to the right of the Unit Cooler Fan Assembly.
Thermometer probe is to be attached by spacer
and screw assembly.
This spacer will allow probe to garner accurate
temperature readings and transmit to
thermometer.
Rear Section
Thermometer
16
2. Thermometer Notes
Note 1: Thermometers reflect warmest air
temperature in merchandiser. They do not
provide actual food temperature.
Note 2: Use probe thermometers to determine
actual product temperatures.
Thermometer
Probe
Unit Cooler
Fan Assembly
