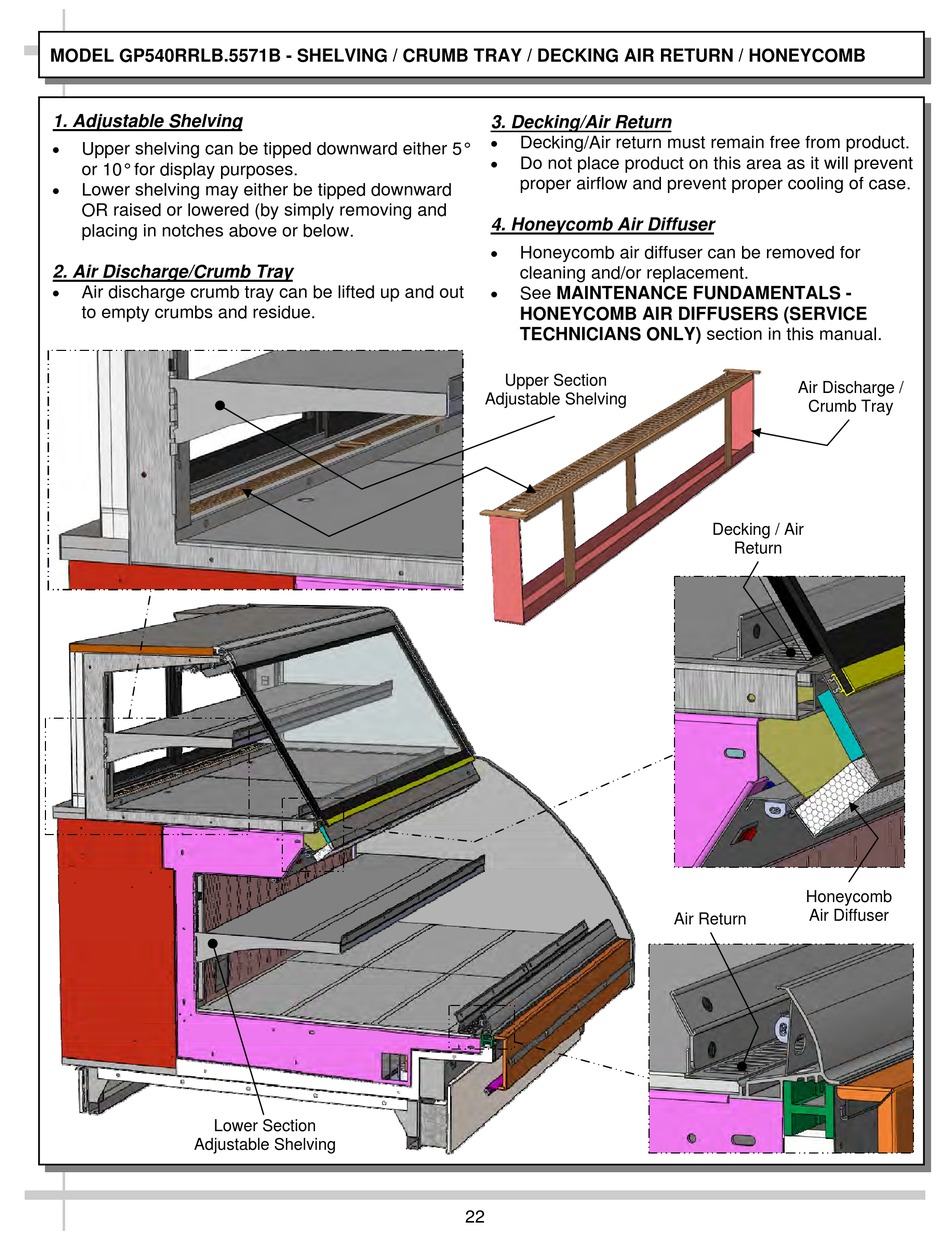

MODEL GP540RRLB.5571B - SHELVING / CRUMB TRAY / DECKING AIR RETURN / HONEYCOMB
1. Adjustable Shelving

Upper shelving can be tipped downward either 5°
or 10° for display purposes.

Lower shelving may either be tipped downward
OR raised or lowered (by simply removing and
placing in notches above or below.
2. Air Discharge/Crumb Tray

Air discharge crumb tray can be lifted up and out
to empty crumbs and residue.
Lower Section
Adjustable Shelving
3. Decking/Air Return

Decking/Air return must remain free from product.

Do not place product on this area as it will prevent
proper airflow and prevent proper cooling of case.
4. Honeycomb Air Diffuser

Honeycomb air diffuser can be removed for
cleaning and/or replacement.

See MAINTENANCE FUNDAMENTALS -
HONEYCOMB AIR DIFFUSERS (SERVICE
TECHNICIANS ONLY) section in this manual.
Upper Section
Adjustable Shelving
22
Air Discharge /
Crumb Tray
Decking / Air
Return
Honeycomb
Air Diffuser
Air Return
