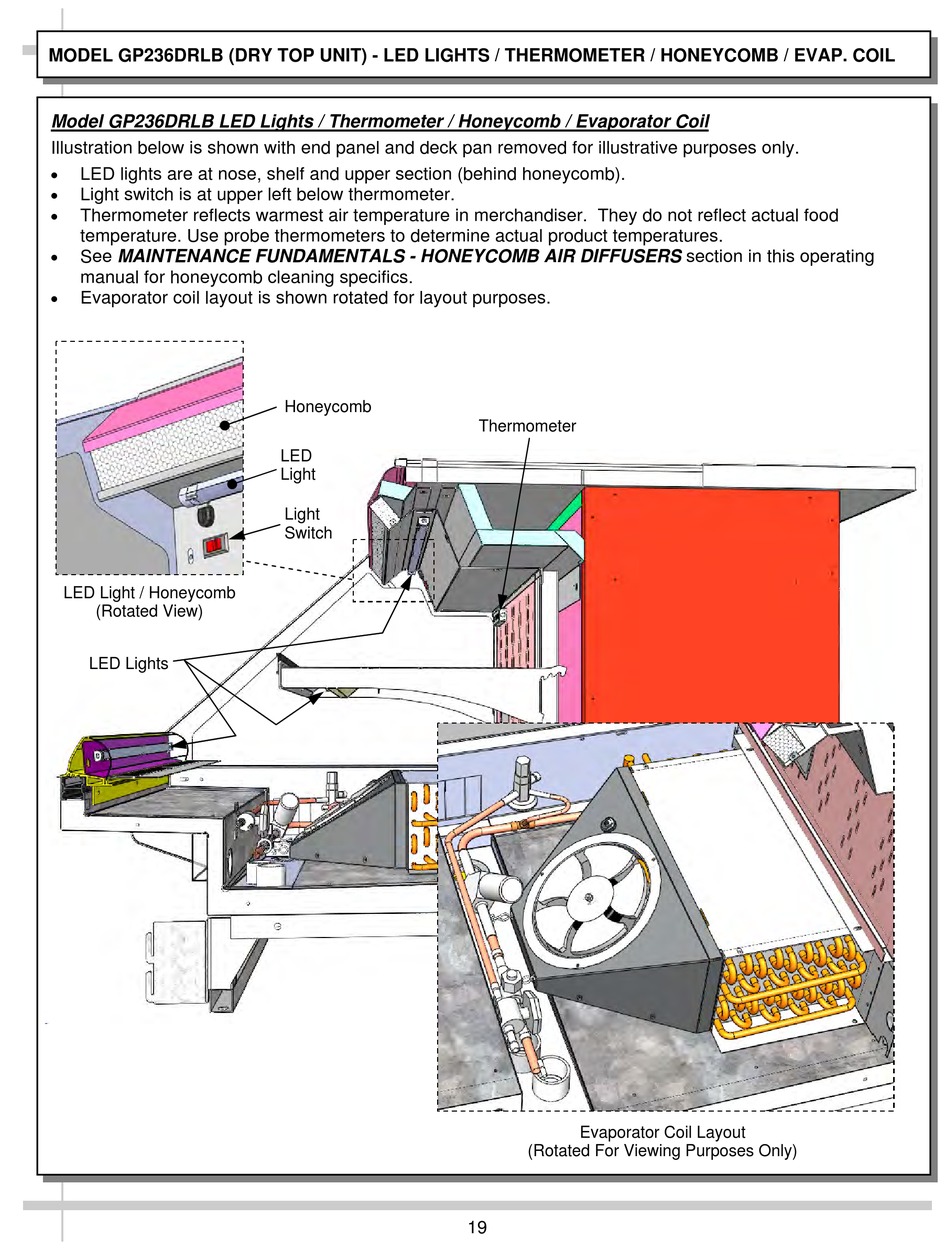

MODEL GP236DRLB (DRY TOP UNIT) - LED LIGHTS / THERMOMETER / HONEYCOMB / EVAP. COIL
Model GP236DRLB LED Lights / Thermometer / Honeycomb / Evaporator Coil
Illustration below is shown with end panel and deck pan removed for illustrative purposes only.

LED lights are at nose, shelf and upper section (behind honeycomb).

Light switch is at upper left below thermometer.

Thermometer reflects warmest air temperature in merchandiser. They do not reflect actual food
temperature. Use probe thermometers to determine actual product temperatures.

See MAINTENANCE FUNDAMENTALS - HONEYCOMB AIR DIFFUSERS section in this operating
manual for honeycomb cleaning specifics.

Evaporator coil layout is shown rotated for layout purposes.
LED Light / Honeycomb
(Rotated View)
LED Lights
Honeycomb
LED
Light
Light
Switch
Thermometer
Evaporator Coil Layout
(Rotated For Viewing Purposes Only)
19
