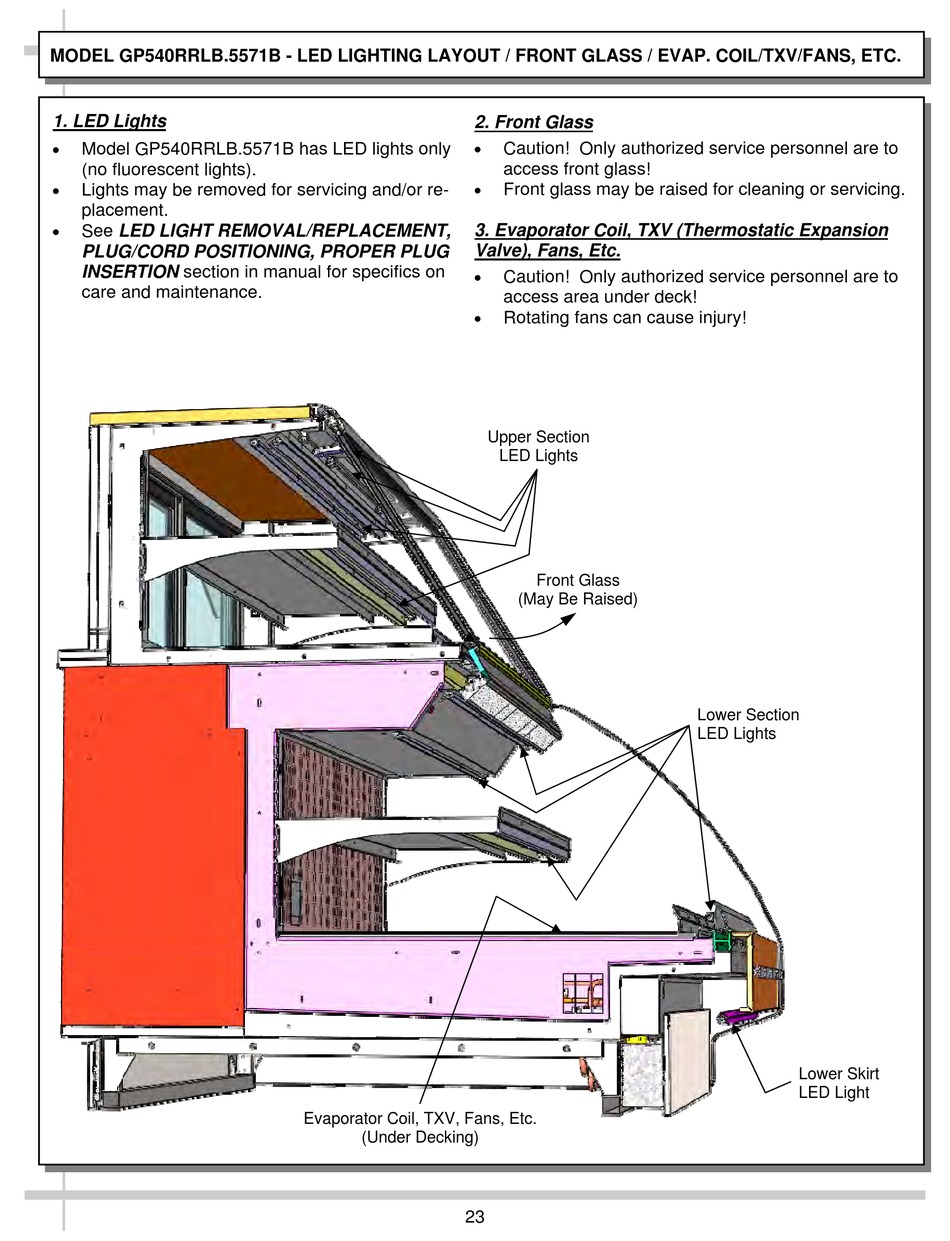

MODEL GP540RRLB.5571B - LED LIGHTING LAYOUT / FRONT GLASS / EVAP. COIL/TXV/FANS, ETC.
1. LED Lights
Model GP540RRLB.5571B has LED lights only
(no fluorescent lights).
Lights may be removed for servicing and/or re-
placement.
See LED LIGHT REMOVAL/REPLACEMENT,
PLUG/CORD POSITIONING, PROPER PLUG
INSERTION section in manual for specifics on
care and maintenance.
2. Front Glass
3. Evaporator Coil, TXV (Thermostatic Expansion
Valve), Fans, Etc.
Evaporator Coil, TXV, Fans, Etc.
(Under Decking)
23
Caution! Only authorized service personnel are to
access front glass!
Front glass may be raised for cleaning or servicing.
Caution! Only authorized service personnel are to
access area under deck!
Rotating fans can cause injury!
Upper Section
LED Lights
Front Glass
(May Be Raised)
Lower Section
LED Lights
Lower Skirt
LED Light
