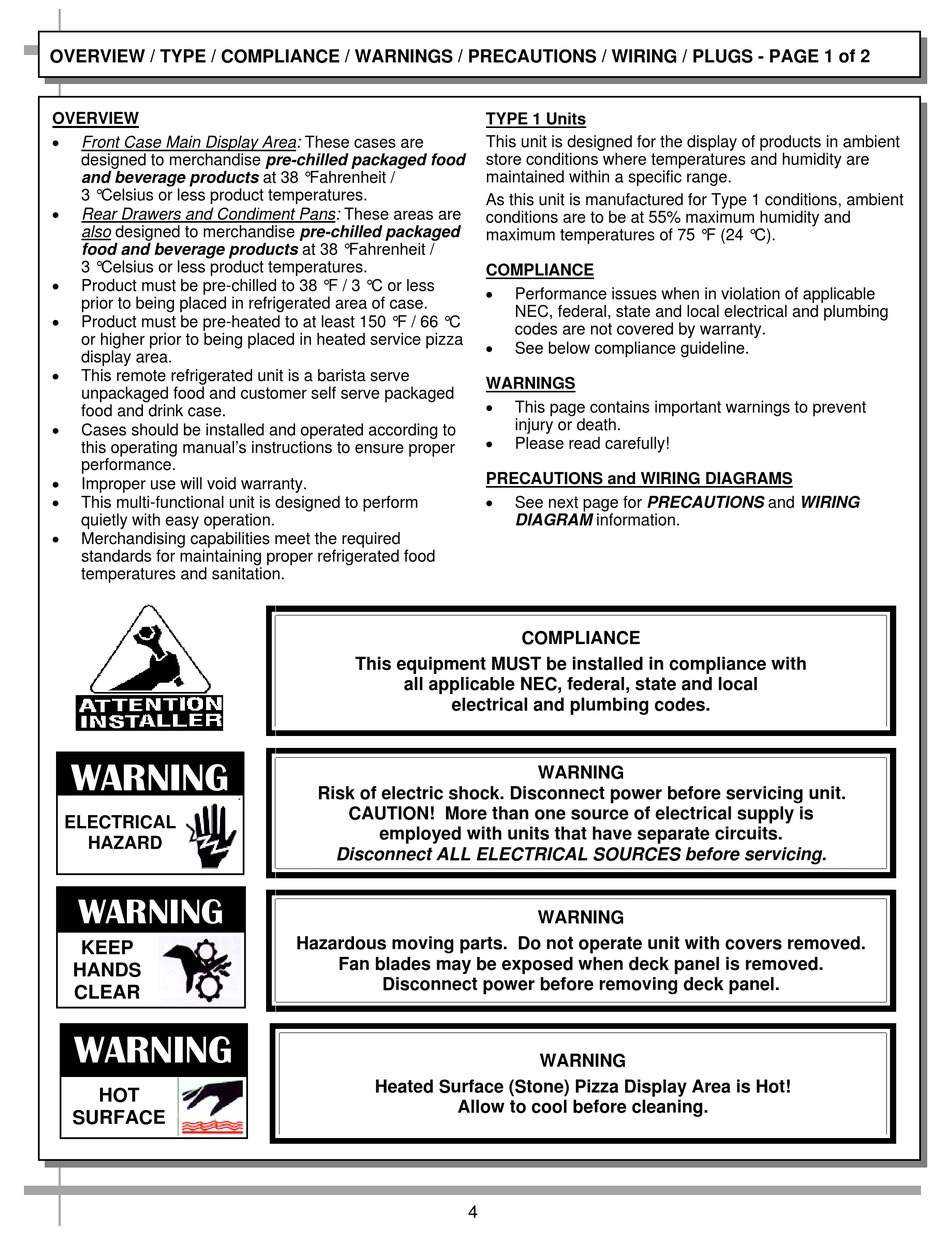

Overview / Type / Compliance / Warnings / Precautions / Wiring / Plugs - Page 1 Of 2 - Structural Concepts GP641RRLB Installation And Operating Manual

OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS - PAGE 1 of 2

OVERVIEW

Front Case Main Display Area: These cases are
designed to merchandise pre-chilled packaged food
and beverage products at 38 °Fahrenheit /
3 °Celsius or less product temperatures.

Rear Drawers and Condiment Pans: These areas are
also designed to merchandise pre-chilled packaged
food and beverage products at 38 °Fahrenheit /
3 °Celsius or less product temperatures.

Product must be pre-chilled to 38 °F / 3 °C or less
prior to being placed in refrigerated area of case.

Product must be pre-heated to at least 150 °F / 66 °C
or higher prior to being placed in heated service pizza
display area.

This remote refrigerated unit is a barista serve
unpackaged food and customer self serve packaged
food and drink case.

Cases should be installed and operated according to
this operating manual's instructions to ensure proper
performance.

Improper use will void warranty.

This multi-functional unit is designed to perform
quietly with easy operation.

Merchandising capabilities meet the required
standards for maintaining proper refrigerated food
temperatures and sanitation.
WARNING
ELECTRICAL
HAZARD
WARNING
KEEP
HANDS
CLEAR
WARNING
HOT
SURFACE
This equipment MUST be installed in compliance with
all applicable NEC, federal, state and local
electrical and plumbing codes.
Risk of electric shock. Disconnect power before servicing unit.
CAUTION! More than one source of electrical supply is
employed with units that have separate circuits.
Disconnect ALL ELECTRICAL SOURCES before servicing.
Hazardous moving parts. Do not operate unit with covers removed.
Fan blades may be exposed when deck panel is removed.
Disconnect power before removing deck panel.
Heated Surface (Stone) Pizza Display Area is Hot!
Allow to cool before cleaning.
4
TYPE 1 Units
This unit is designed for the display of products in ambient
store conditions where temperatures and humidity are
maintained within a specific range.
As this unit is manufactured for Type 1 conditions, ambient
conditions are to be at 55% maximum humidity and
maximum temperatures of 75 °F (24 °C).
COMPLIANCE

Performance issues when in violation of applicable
NEC, federal, state and local electrical and plumbing
codes are not covered by warranty.

See below compliance guideline.
WARNINGS

This page contains important warnings to prevent
injury or death.

Please read carefully!
PRECAUTIONS and WIRING DIAGRAMS

See next page for PRECAUTIONS and WIRING
DIAGRAM information.
