MODEL GP236DRLB (DRY TOP UNIT) - REAR PANEL / FIELD ACCESS BOX / TEMP. CONTROLLER
Model GP236DRLB Rear Panel / Field Access /
Temperature Controller (Customer Provided)

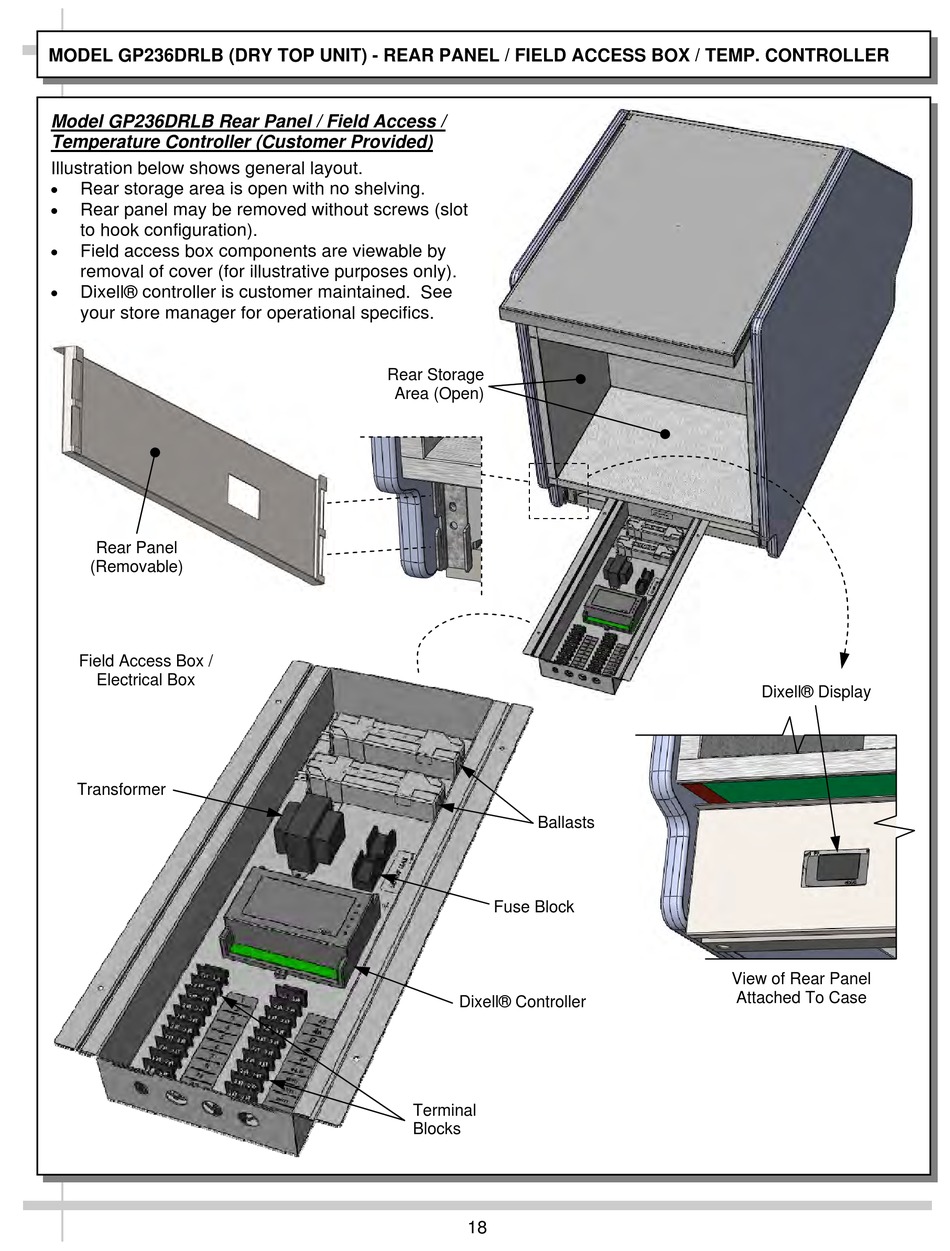

Illustration below shows general layout.
Rear storage area is open with no shelving.
Rear panel may be removed without screws (slot
to hook configuration).
Field access box components are viewable by
removal of cover (for illustrative purposes only).
Dixell® controller is customer maintained. See
your store manager for operational specifics.
Rear Panel
(Removable)
Field Access Box /
Electrical Box
Transformer
Rear Storage
Area (Open)
Ballasts
Fuse Block
Dixell® Controller
Terminal
Blocks
18
Dixell® Display
View of Rear Panel
Attached To Case
