THERMOMETER PROBE / DEFROST PROBE LOCATIONS - TOP SECTION (MODEL GP837R)

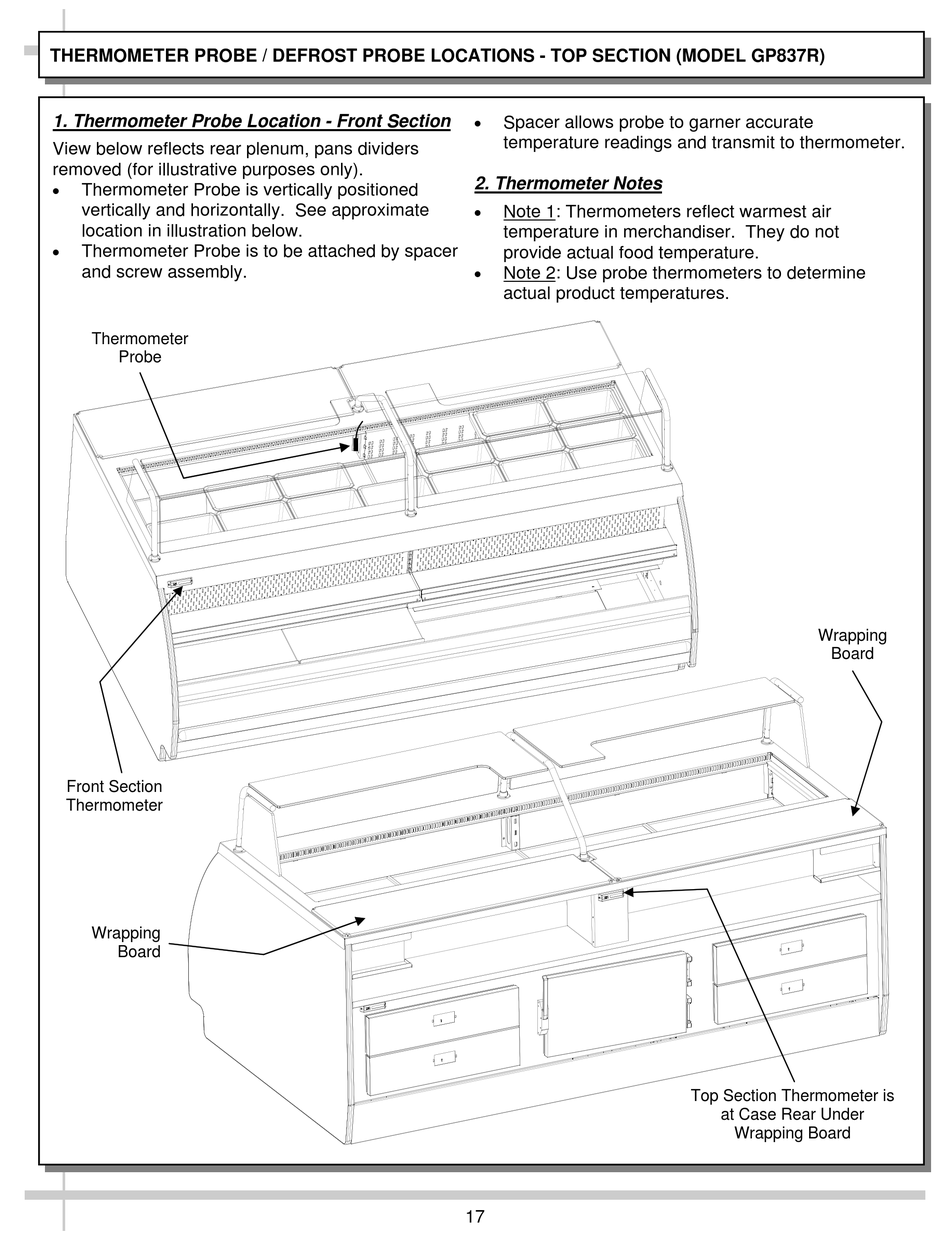

1. Thermometer Probe Location - Front Section
View below reflects rear plenum, pans dividers
removed (for illustrative purposes only).

Thermometer Probe is vertically positioned
vertically and horizontally. See approximate
location in illustration below.

Thermometer Probe is to be attached by spacer
and screw assembly.
Thermometer
Probe
Front Section
Thermometer
Wrapping
Board

Spacer allows probe to garner accurate
temperature readings and transmit to thermometer.
2. Thermometer Notes

Note 1: Thermometers reflect warmest air
temperature in merchandiser. They do not
provide actual food temperature.

Note 2: Use probe thermometers to determine
actual product temperatures.
17
Wrapping
Board
Top Section Thermometer is
at Case Rear Under
Wrapping Board
