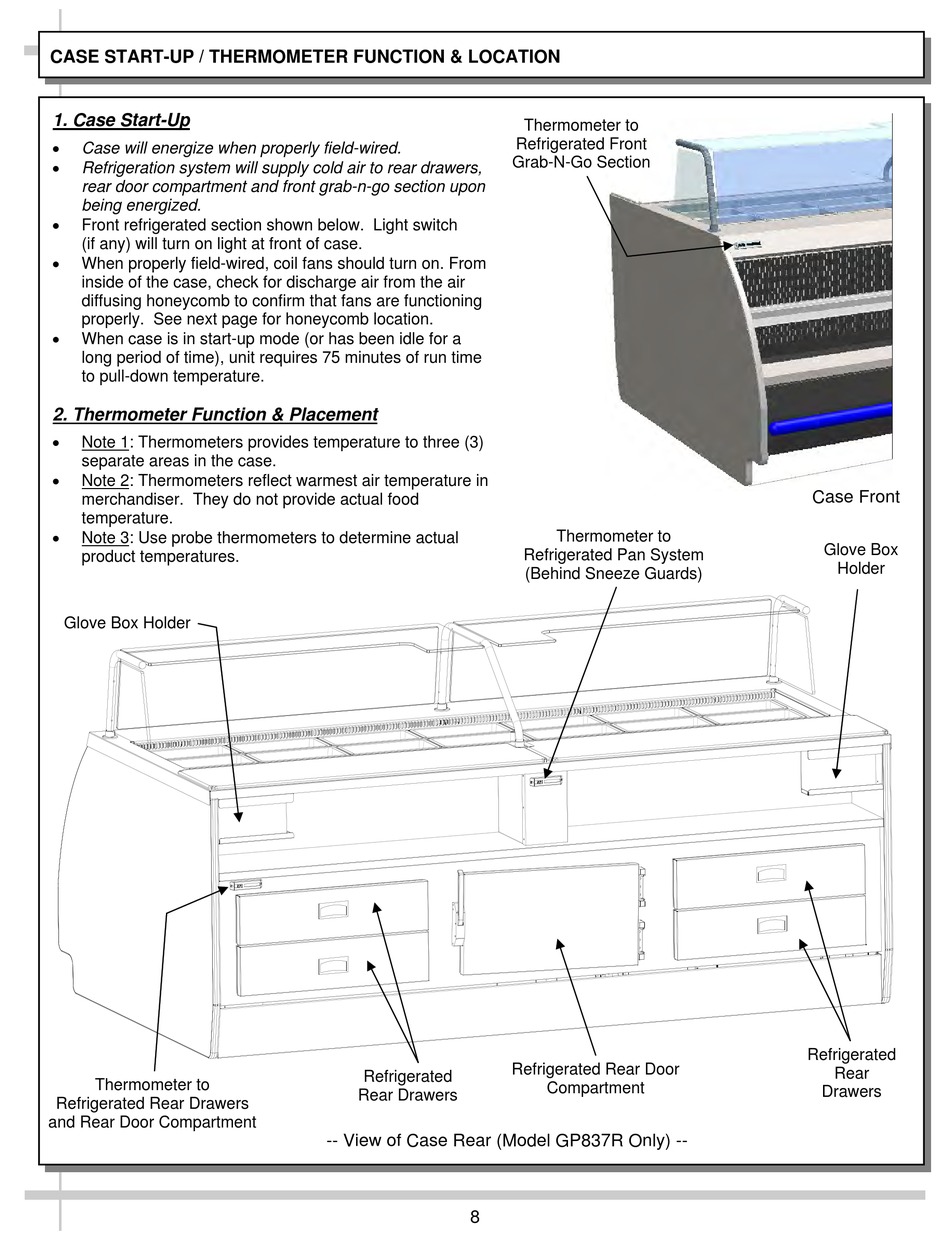

CASE START-UP / THERMOMETER FUNCTION & LOCATION
1. Case Start-Up

Case will energize when properly field-wired.

Refrigeration system will supply cold air to rear drawers,
rear door compartment and front grab-n-go section upon
being energized.

Front refrigerated section shown below. Light switch
(if any) will turn on light at front of case.

When properly field-wired, coil fans should turn on. From
inside of the case, check for discharge air from the air
diffusing honeycomb to confirm that fans are functioning
properly. See next page for honeycomb location.

When case is in start-up mode (or has been idle for a
long period of time), unit requires 75 minutes of run time
to pull-down temperature.
2. Thermometer Function & Placement

Note 1: Thermometers provides temperature to three (3)
separate areas in the case.

Note 2: Thermometers reflect warmest air temperature in
merchandiser. They do not provide actual food
temperature.

Note 3: Use probe thermometers to determine actual
product temperatures.
Glove Box Holder
Thermometer to
Refrigerated Rear Drawers
and Rear Door Compartment
Refrigerated
Rear Drawers
-- View of Case Rear (Model GP837R Only) --
8
Thermometer to
Refrigerated Front
Grab-N-Go Section
Thermometer to
Refrigerated Pan System
(Behind Sneeze Guards)
Refrigerated Rear Door
Compartment
Case Front
Glove Box
Holder
Refrigerated
Rear
Drawers
