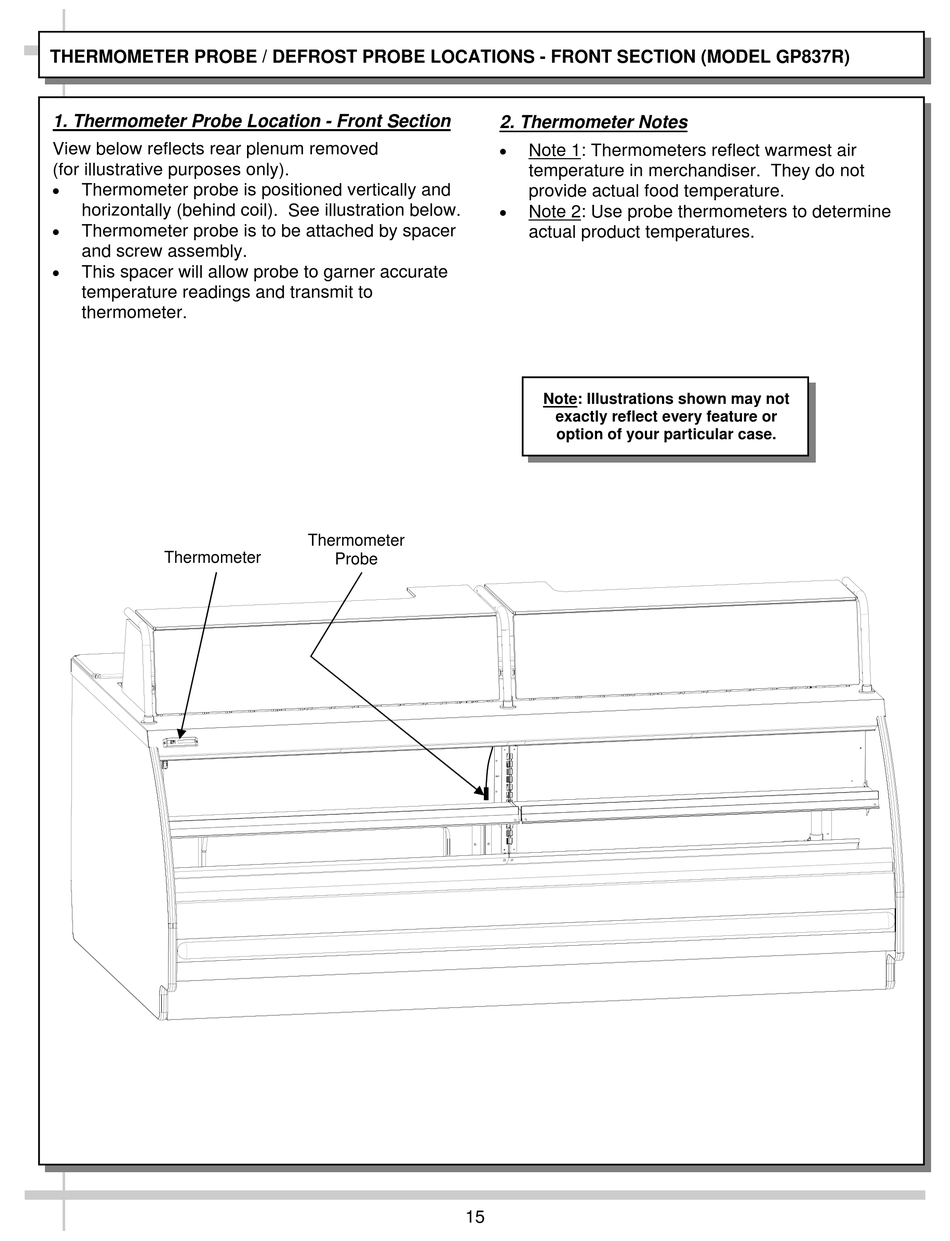

THERMOMETER PROBE / DEFROST PROBE LOCATIONS - FRONT SECTION (MODEL GP837R)
1. Thermometer Probe Location - Front Section
View below reflects rear plenum removed
(for illustrative purposes only).

Thermometer probe is positioned vertically and
horizontally (behind coil). See illustration below.

Thermometer probe is to be attached by spacer
and screw assembly.

This spacer will allow probe to garner accurate
temperature readings and transmit to
thermometer.
Thermometer
Thermometer
Probe
15
2. Thermometer Notes

Note 1: Thermometers reflect warmest air
temperature in merchandiser. They do not
provide actual food temperature.

Note 2: Use probe thermometers to determine
actual product temperatures.
Note: Illustrations shown may not
exactly reflect every feature or
option of your particular case.
