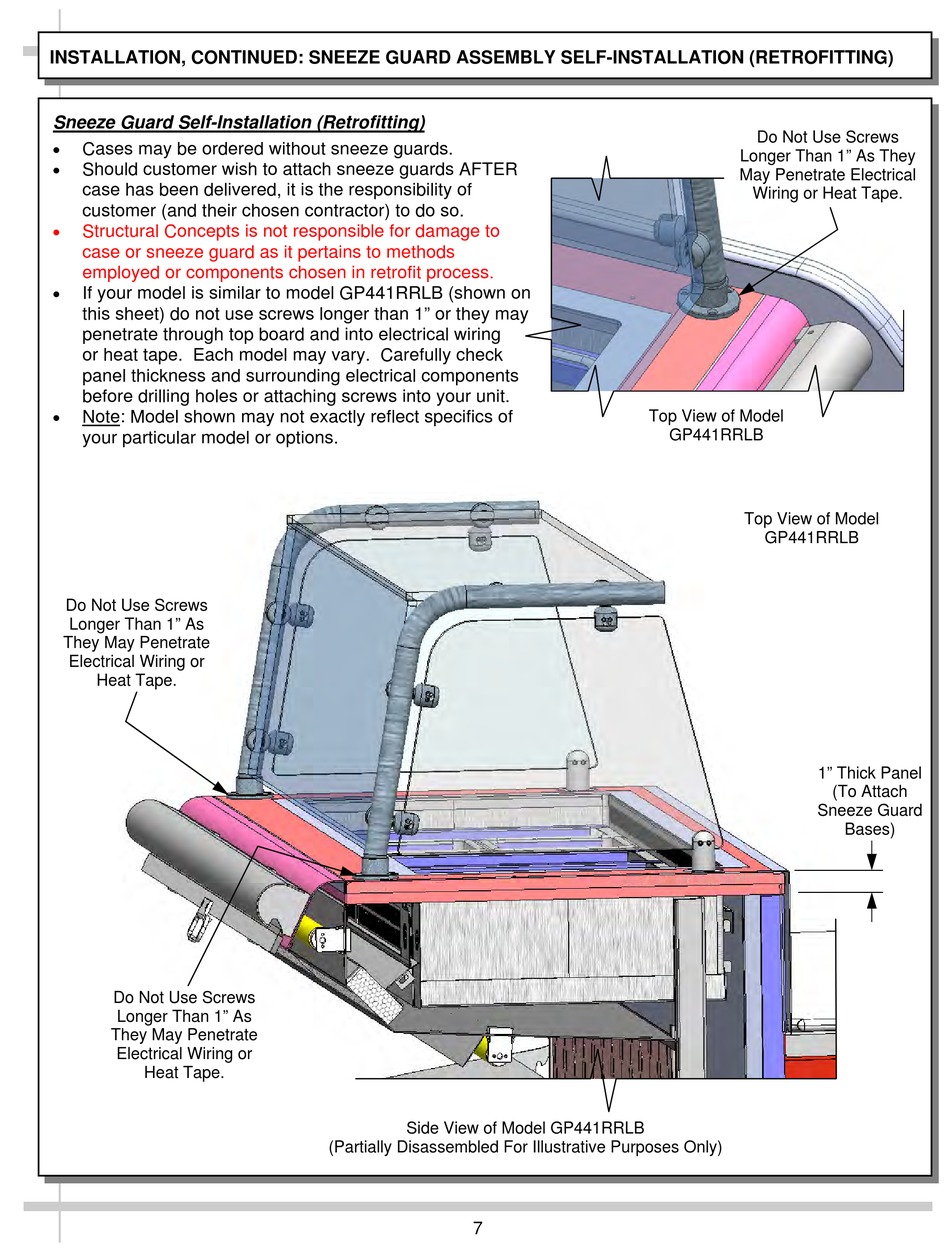

INSTALLATION, CONTINUED: SNEEZE GUARD ASSEMBLY SELF-INSTALLATION (RETROFITTING)
Sneeze Guard Self-Installation (Retrofitting)

Cases may be ordered without sneeze guards.

Should customer wish to attach sneeze guards AFTER
case has been delivered, it is the responsibility of
customer (and their chosen contractor) to do so.

Structural Concepts is not responsible for damage to
case or sneeze guard as it pertains to methods
employed or components chosen in retrofit process.

If your model is similar to model GP441RRLB (shown on
this sheet) do not use screws longer than 1" or they may
penetrate through top board and into electrical wiring
or heat tape. Each model may vary. Carefully check
panel thickness and surrounding electrical components
before drilling holes or attaching screws into your unit.

Note: Model shown may not exactly reflect specifics of
your particular model or options.
Do Not Use Screws
Longer Than 1" As
They May Penetrate
Electrical Wiring or
Heat Tape.
Do Not Use Screws
Longer Than 1" As
They May Penetrate
Electrical Wiring or
Heat Tape.
Side View of Model GP441RRLB
(Partially Disassembled For Illustrative Purposes Only)
7
Do Not Use Screws
Longer Than 1" As They
May Penetrate Electrical
Wiring or Heat Tape.
Top View of Model
GP441RRLB
Top View of Model
GP441RRLB
1" Thick Panel
Sneeze Guard
(To Attach
Bases)
