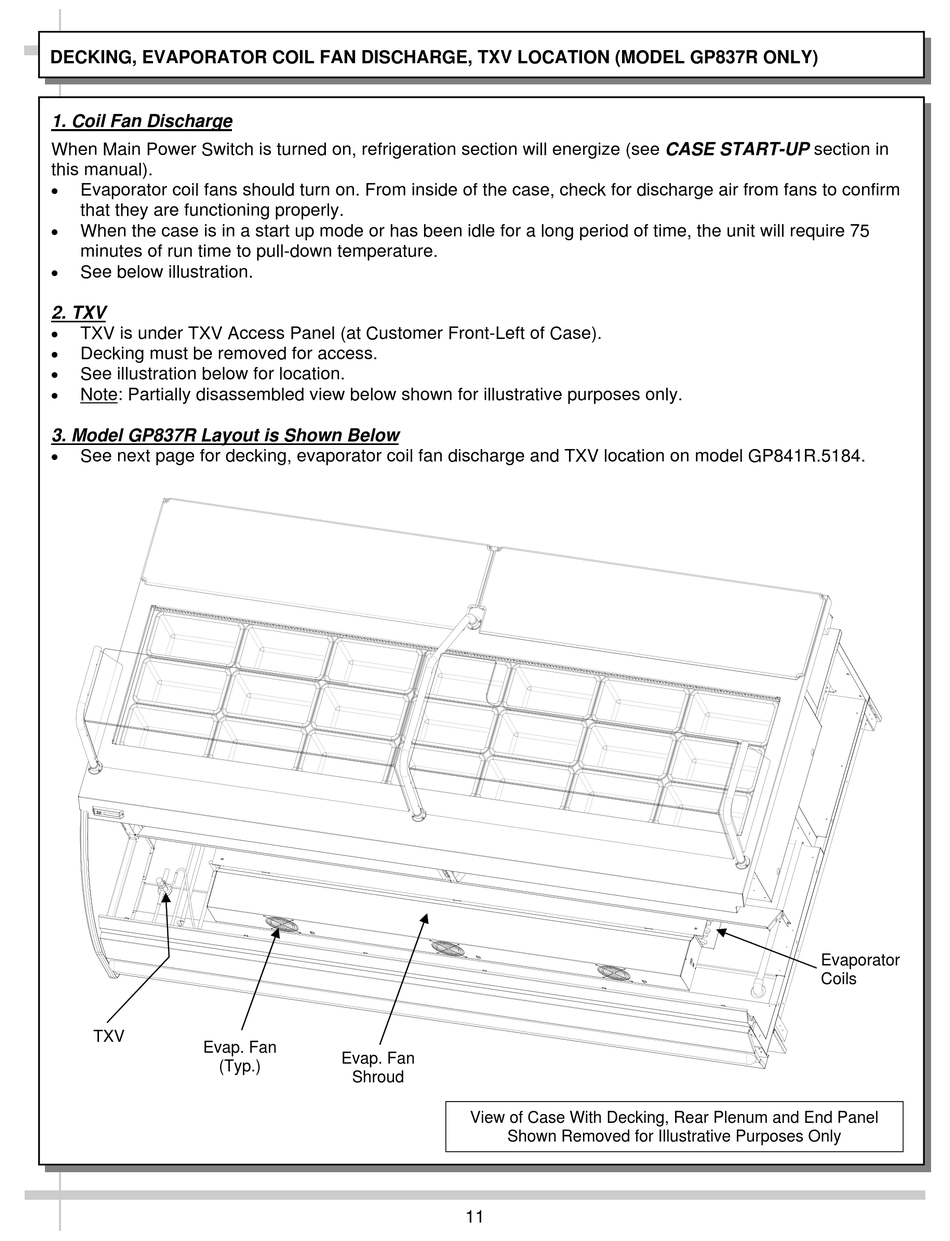

DECKING, EVAPORATOR COIL FAN DISCHARGE, TXV LOCATION (MODEL GP837R ONLY)
1. Coil Fan Discharge
When Main Power Switch is turned on, refrigeration section will energize (see CASE START-UP section in
this manual).
Evaporator coil fans should turn on. From inside of the case, check for discharge air from fans to confirm
that they are functioning properly.
When the case is in a start up mode or has been idle for a long period of time, the unit will require 75
minutes of run time to pull-down temperature.
See below illustration.
2. TXV
TXV is under TXV Access Panel (at Customer Front-Left of Case).
Decking must be removed for access.
See illustration below for location.
Note: Partially disassembled view below shown for illustrative purposes only.
3. Model GP837R Layout is Shown Below
See next page for decking, evaporator coil fan discharge and TXV location on model GP841R.5184.
TXV
Evap. Fan
(Typ.)
Evap. Fan
Shroud
View of Case With Decking, Rear Plenum and End Panel
Shown Removed for Illustrative Purposes Only
11
Evaporator
Coils
